Rear Upper Control Arm: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR WHEEL
DISCONNECT SKID CONTROL SENSOR WIRE (for 2WD) (See REMOVAL )
DISCONNECT REAR SPEED SENSOR LH (for 4WD) (See REMOVAL )
REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
1. Support the No. 2 suspension arm.

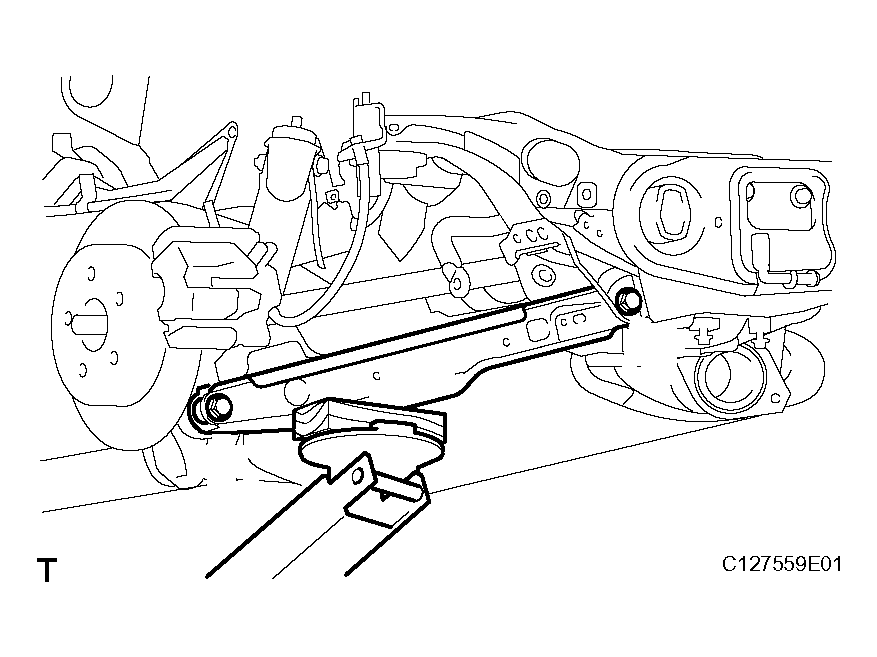

  Fig 1: Supporting No. 2 Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and 2 nuts, and disconnect the upper control arm.
  NOTE: When removing the bolts, hold the nuts in place.

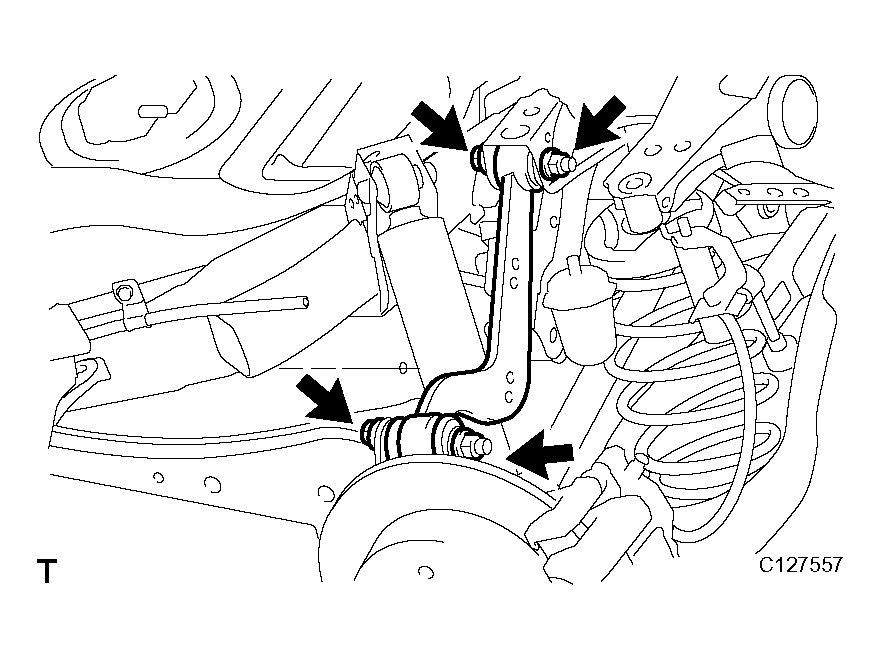

  Fig 2: Removing 2 Bolts And 2 Nuts, And Disconnecting Upper Control Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
