Rear Shock Absorber: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR WHEEL
REMOVE REAR SHOCK ABSORBER ASSEMBLY LH
1. Support the No. 2 suspension arm LH with a jack.
  NOTE: Place a wooden or rubber block between the jack and arm.

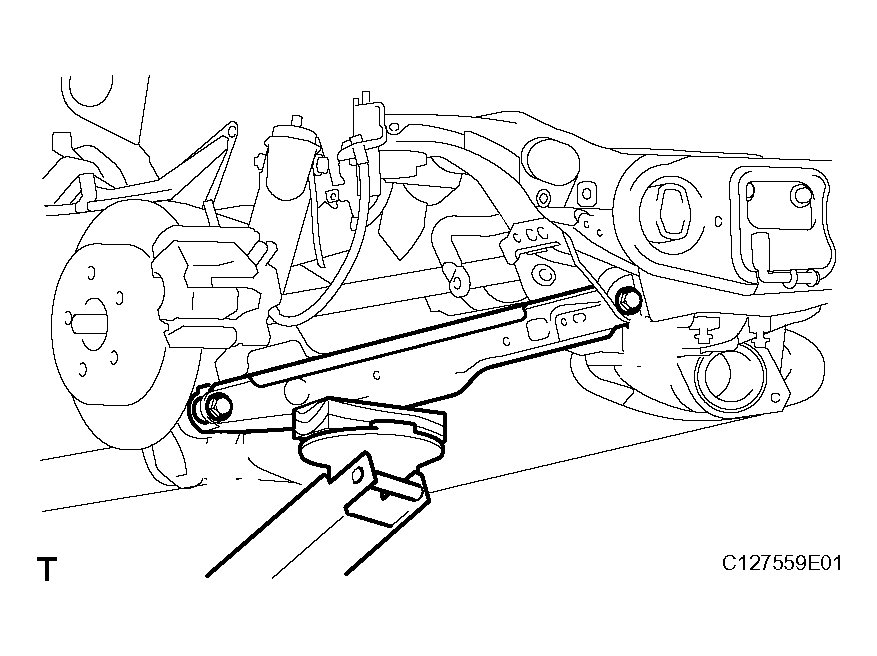

  Fig 1: Supporting No. 2 Suspension Arm LH With Jack
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and 2 nuts from the suspension member and axle carrier.
3. Remove the 2 bolts and disconnect the shock absorber with the bracket.

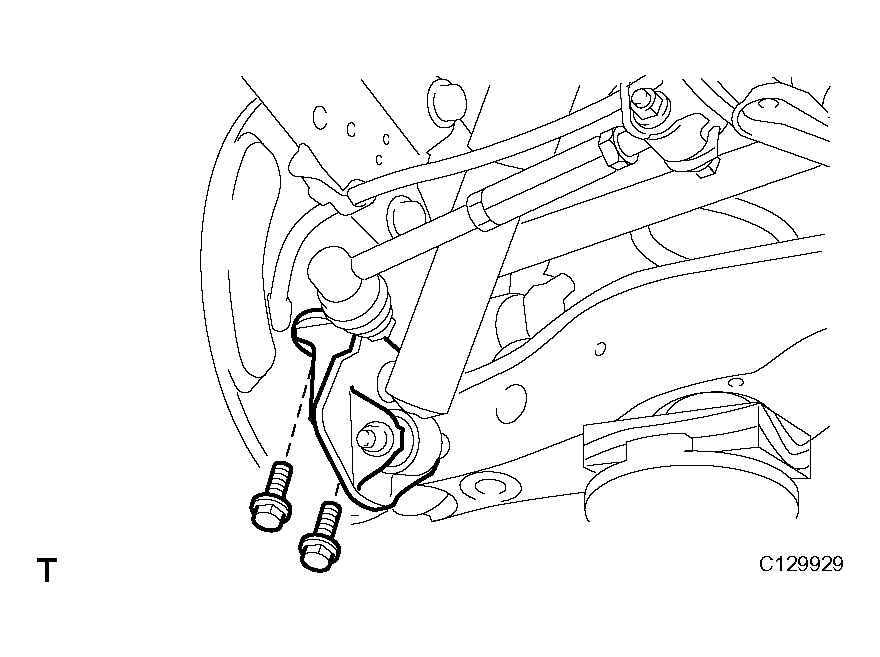

  Fig 2: Removing 2 Bolts And Disconnecting Shock Absorber With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut and bolt from the shock absorber upper side.

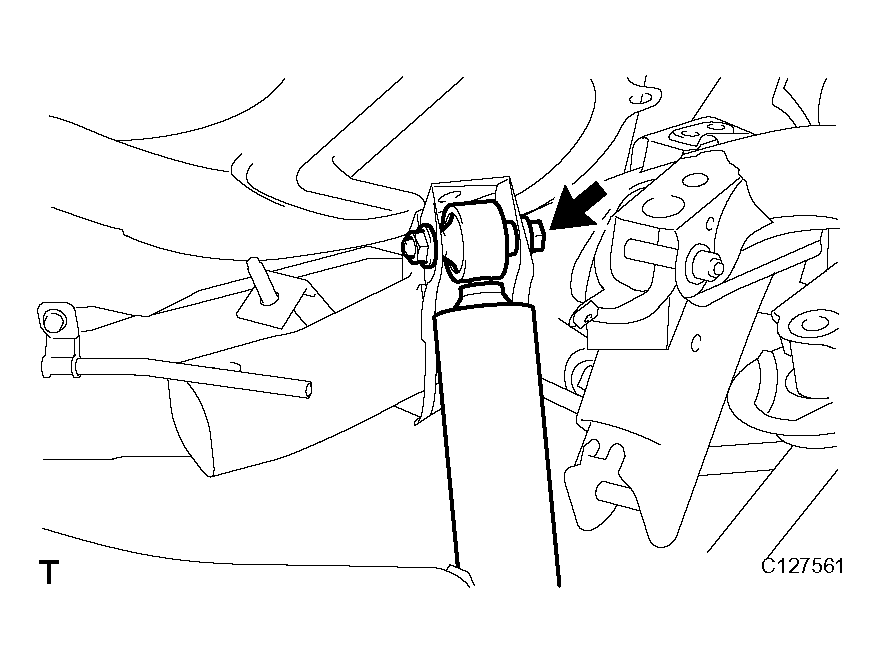

  Fig 3: Removing Nut And Bolt From Shock Absorber Upper Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the shock absorber from the vehicle.
6. Remove the nut and bolt from the bracket.
  HINT:

  While fixing the nut in place, loosen and remove the bolt.
