Rear No. 2 Suspension Arm: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY (See  REMOVAL  )
3. DISCONNECT SKID CONTROL SENSOR WIRE (for 2WD) (See  REMOVAL  )
4. DISCONNECT REAR SPEED SENSOR LH (for 4WD) (See  REMOVAL  )
5. DISCONNECT REAR STABILIZER LINK ASSEMBLY LH (See  INSTALLATION  )
6. DISCONNECT REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
   1. Loosen the bolt from the suspension member side.
      NOTE: Do not remove the bolt and nut. Only loosen them.

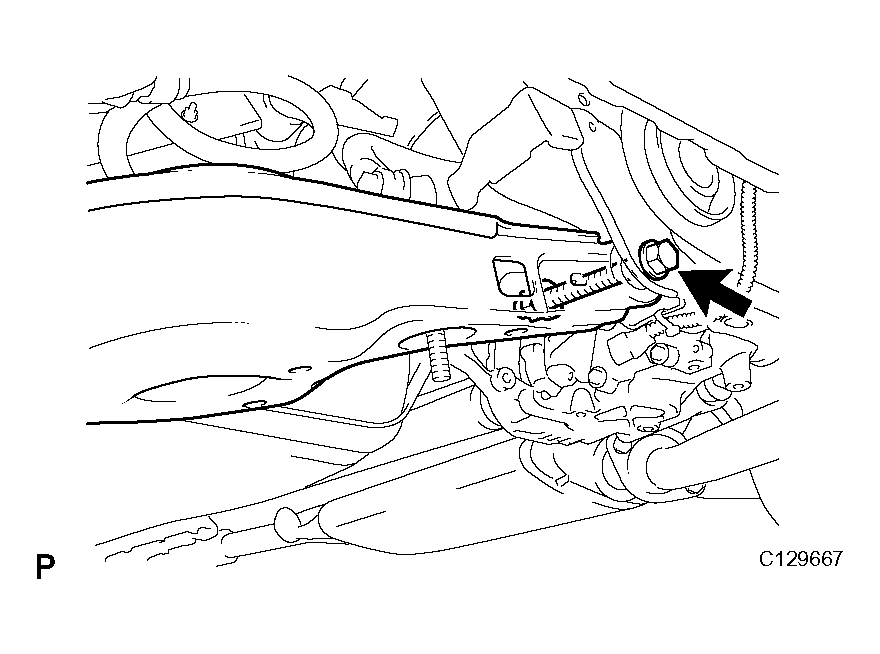

      Fig 1: Loosening Bolt From Suspension Member Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Support the No. 2 suspension arm LH with a jack.
      NOTE: Place a wooden or rubber block between the jack and the arm.

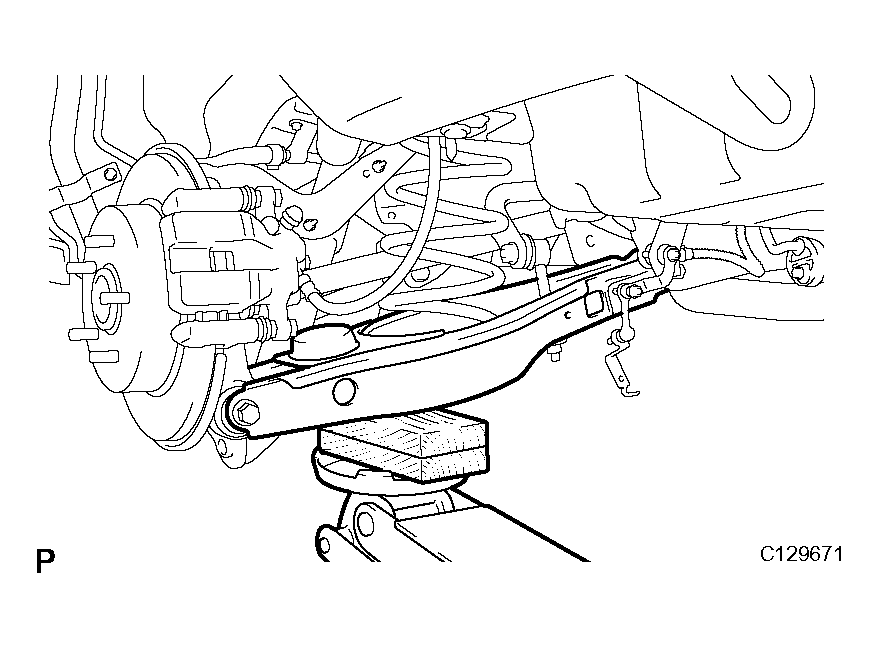

      Fig 2: Supporting No. 2 Suspension Arm LH With A Jack

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt and nut from the axle carrier side.
   4. Slowly lower the jack, and disconnect the No. 2 suspension arm from the axle carrier.
7. REMOVE REAR COIL SPRING INSULATOR UPPER LH (See  REMOVAL  )
8. REMOVE REAR COIL SPRING LH (See  REMOVAL  )
9. REMOVE REAR COIL SPRING INSULATOR LOWER LH (See  REMOVAL  )

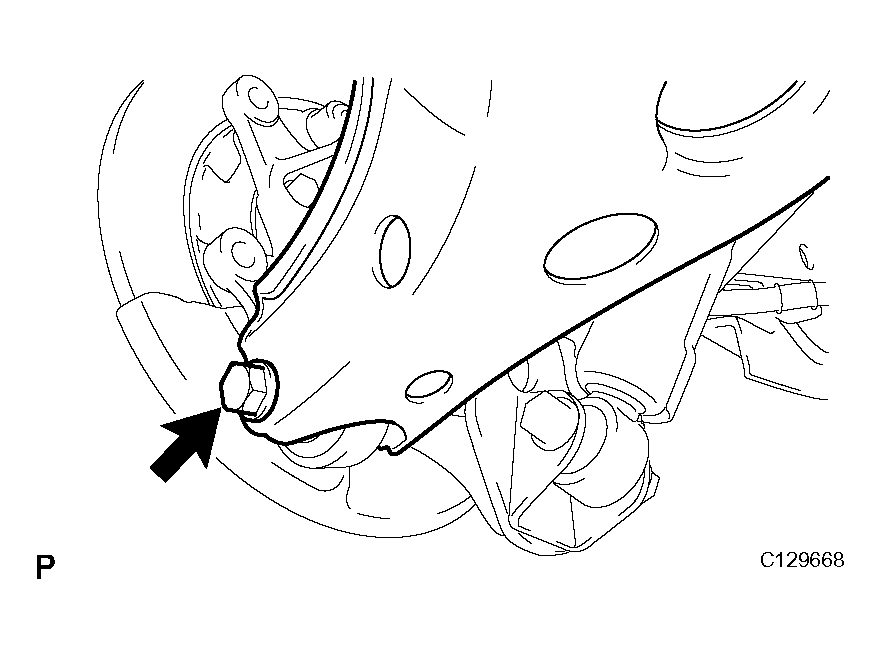

   Fig 3: Removing Bolt And Nut From Axle Carrier Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Remove the bolt, nut and suspension arm from the suspension member.
       Fig 4: Removing Bolt, Nut And Suspension Arm From Suspension Member

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
