Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH
   1. Apply silicon grease (Multemp SI-B) on the contact surfaces of the cylinder parts indicated by the arrows.
      Fig 1: Applying Silicon Grease On Contact Surfaces Of Cylinder Parts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the cylinder with the 2 bolts.

      Torque: 26.5 N*m (270 kgf*cm, 20 ft.*lbf)

      Fig 2: Installing Cylinder Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. CONNECT REAR FLEXIBLE HOSE LH
   NOTE: The gasket and union bolt must be used as a set, as shown in the illustration.

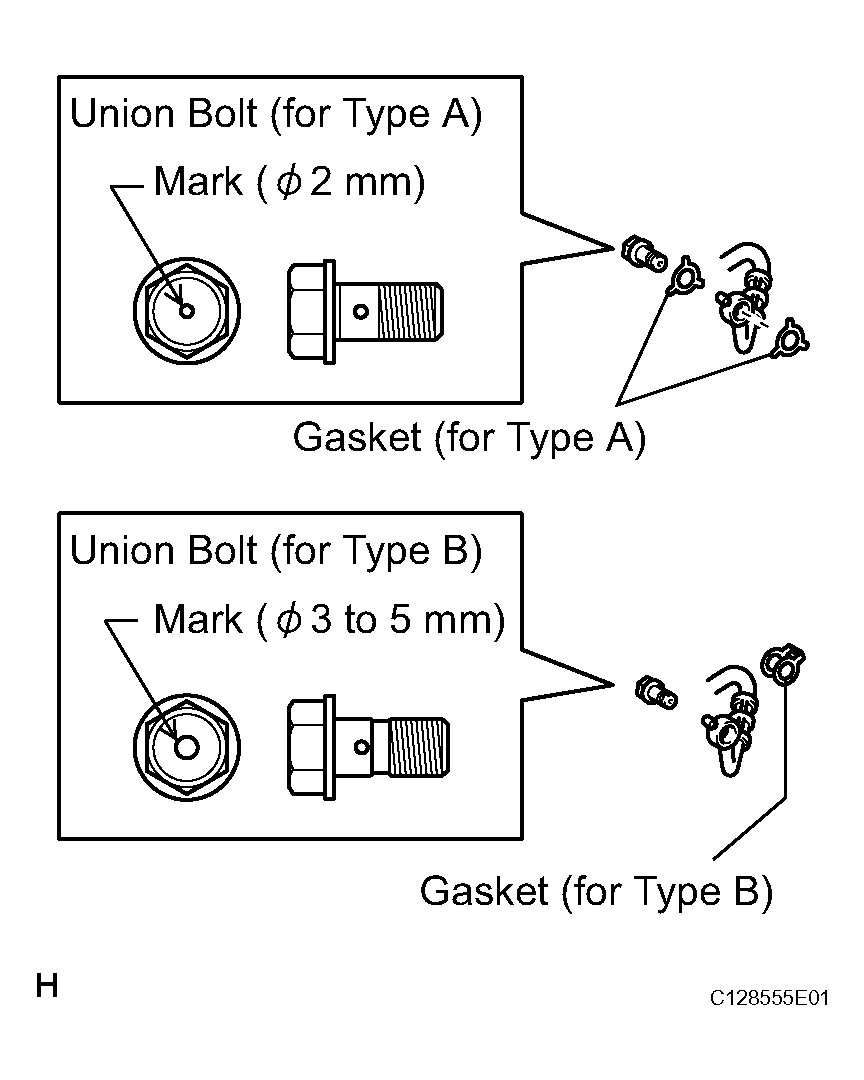

   Fig 3: Identifying Gasket And Union Bolt As A Set

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the flexible hose with new gasket(s) and the union bolt.

      Torque: 30.4 N*m (310 kgf*cm, 22 ft.*lbf)

      HINT:

      Install the flexible hose lock securely in the lock hole in the cylinder.

      Fig 4: Identifying Union Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. FILL RESERVOIR WITH BRAKE FLUID (See  BRAKE FLUID  )
4. BLEED AIR FROM BRAKE MASTER CYLINDER (See  BLEEDING  )
5. BLEED AIR FROM BRAKE LINE (See  BLEEDING  )
6. BLEED AIR FROM ABS AND TRACTION ACTUATOR ASSEMBLY (See  BLEEDING  )
7. CHECK BRAKE FLUID LEVEL IN RESERVOIR (See  BRAKE FLUID  )
8. CHECK FOR BRAKE FLUID LEAKAGE
9. INSTALL REAR WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
