Front Brake Pad, Brake Caliper & Brake Rotor: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

REMOVE FRONT WHEEL
DRAIN BRAKE FLUID
NOTE: Wash off brake fluid immediately if it comes in contact with any painted surface.
DISCONNECT FRONT FLEXIBLE HOSE
1. Remove the union bolt and gasket(s).
2. Disconnect the flexible hose from the brake cylinder.

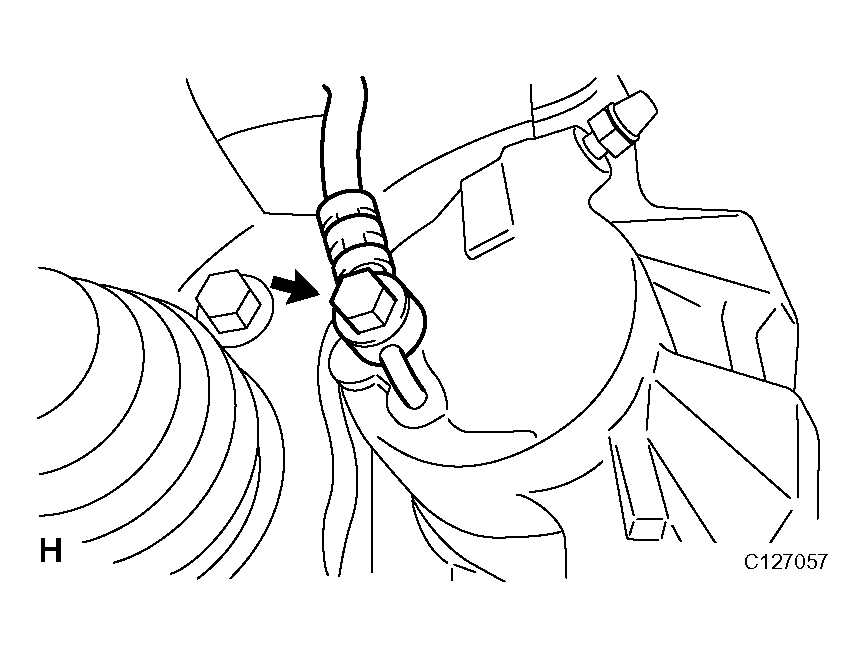

  Fig 1: Identifying Front Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
1. Remove the 2 bolts and cylinder.

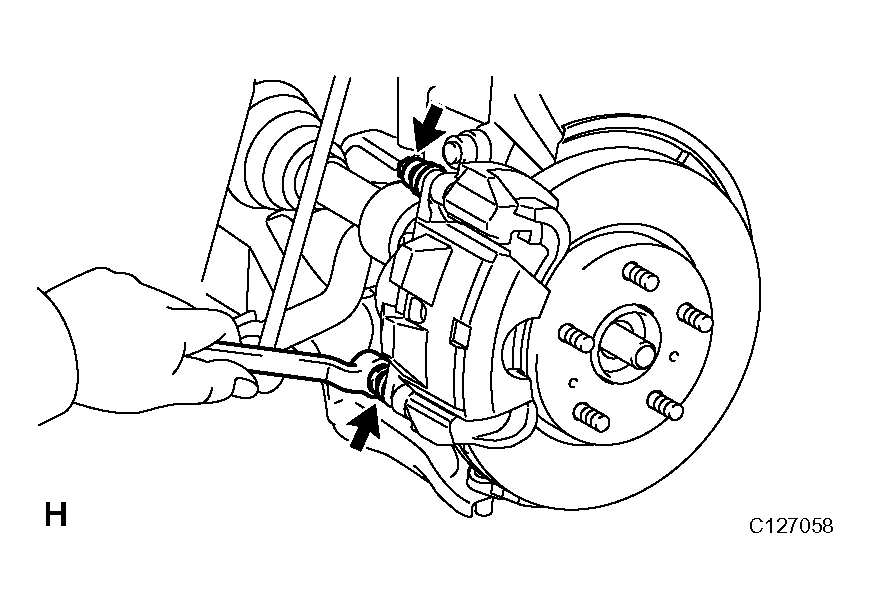

  Fig 2: Removal/Installation Of Disc Brake Cylinder Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
