Parts Location

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

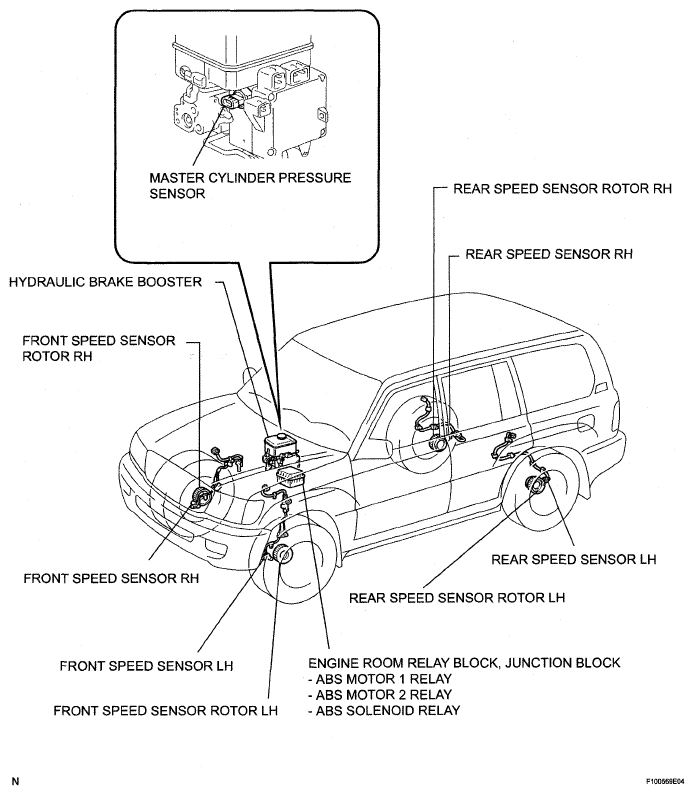

Fig 1: Identifying Brake Control Components Location (1 Of 2)
G05197569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

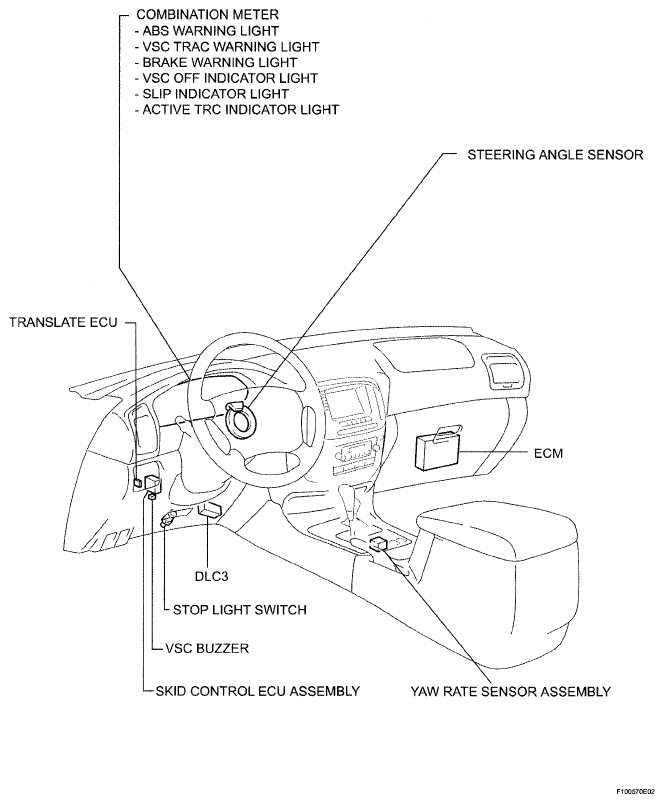

Fig 2: Identifying Brake Control Components Location (2 Of 2)
G05197570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
