DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

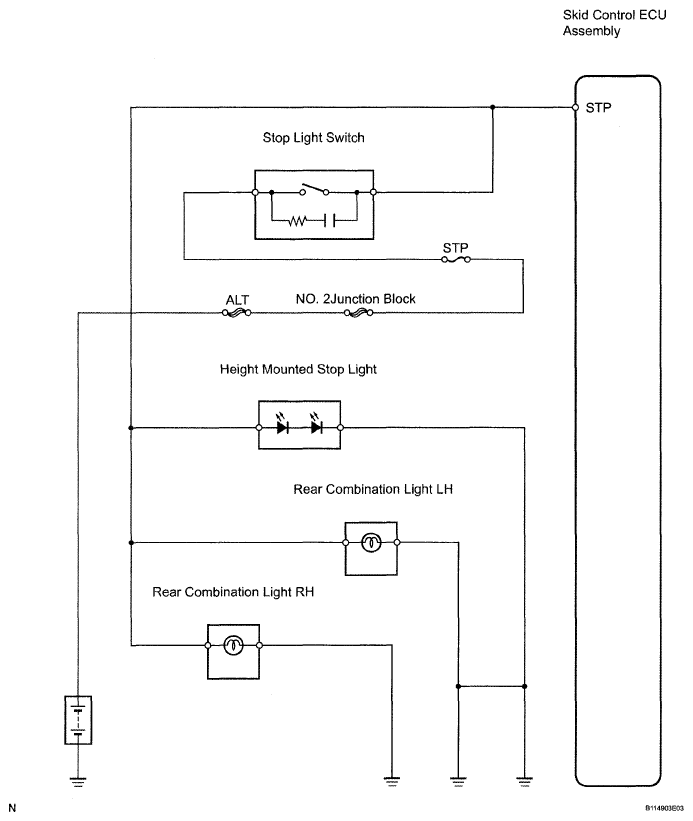

Fig 1: Open In Stop Light Switch Circuit Diagram
G05197636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
