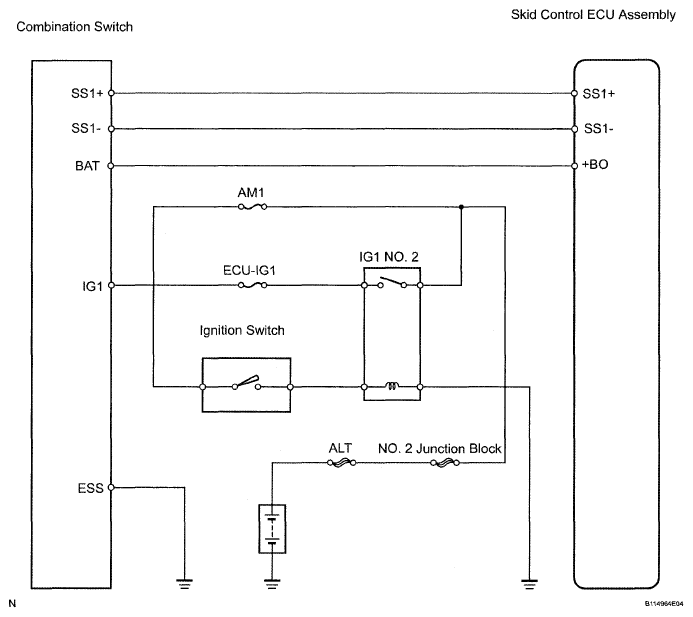

DTC C1231/31 Steering Angle Sensor Circuit Malfunction; DTC C1335/35 Steering Angle Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
