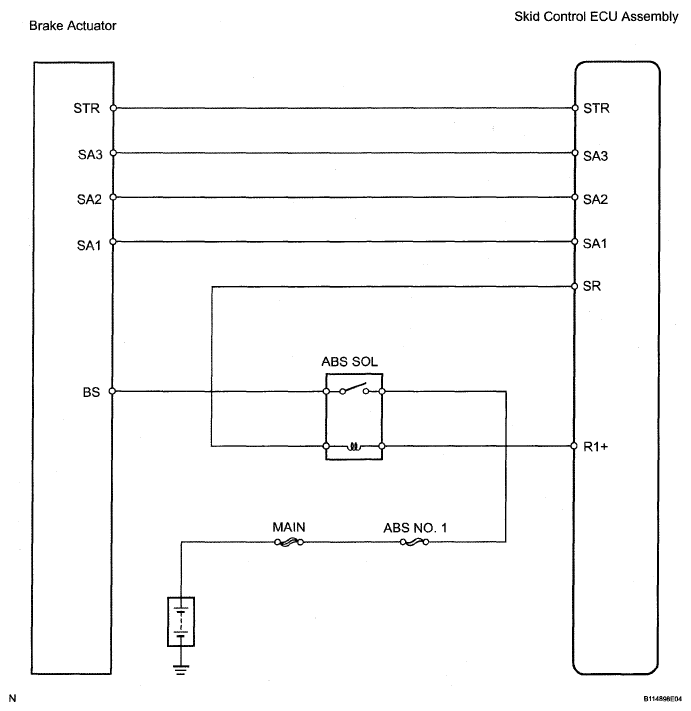

DTC C1225/25 BA and TRAC Solenoid Circuit; DTC C1226/26 BA and TRAC Solenoid Circuit; DTC C1227/27 BA and TRAC Solenoid Circuit; DTC C1228/28 STR Solenoid Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
