Parts Location

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

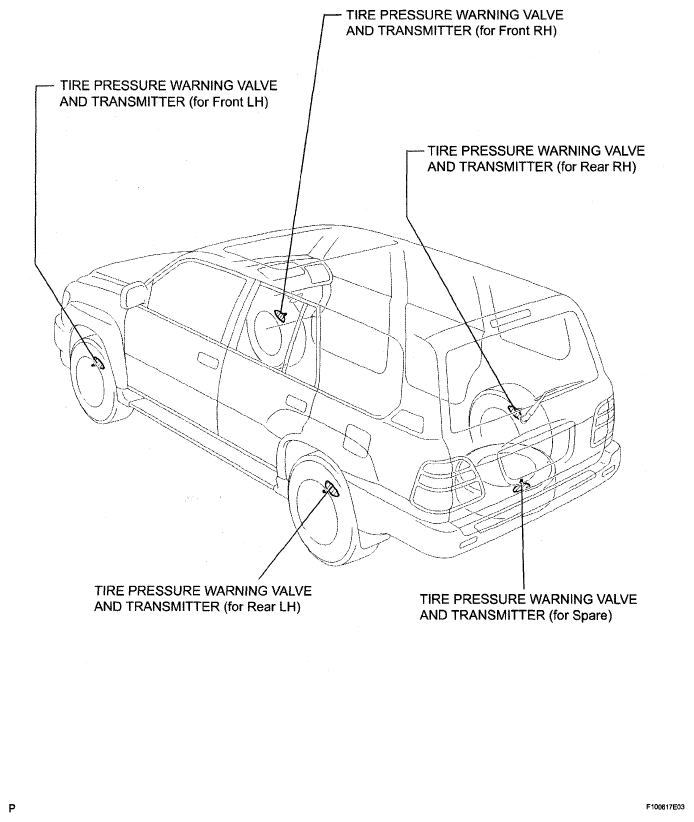

Fig 1: Identifying Tire Pressure Warning Valve And Transmitter Location
G05197506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

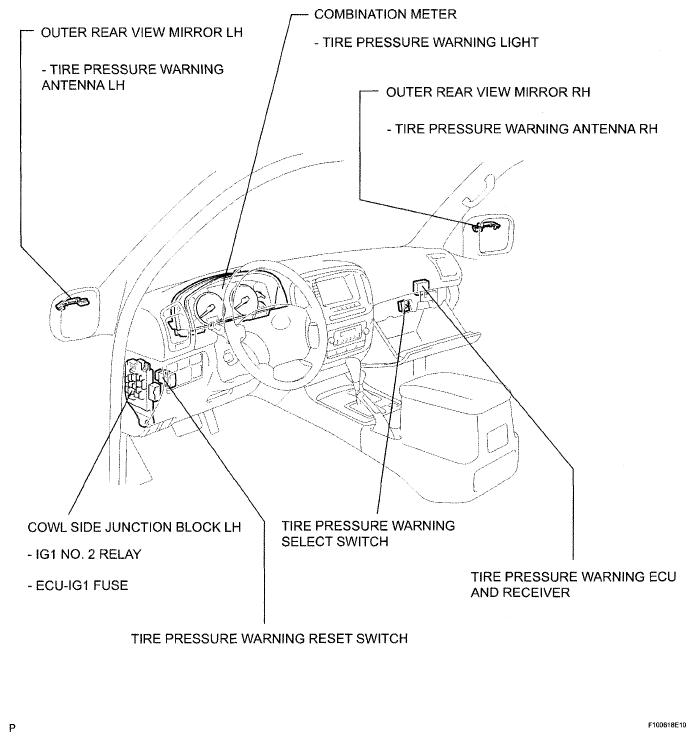

Fig 2: Identifying Tire Pressure Warning Valve Select Switch
G05197507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
