DTC Check / Clear

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK (USING INTELLIGENT TESTER)
1. Turn the ignition switch OFF.

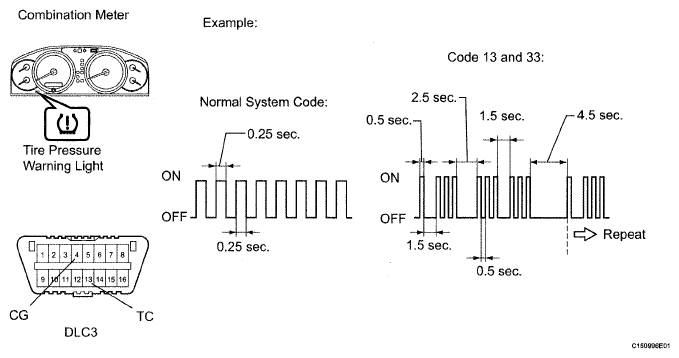

  Fig 1: Identifying Blinking Pattern Of Tire Pressure Warning Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch ON and the tester on.
4. Read the DTCs following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

CHECK DTC (USING SST CHECK WIRE)

Using SST, connect terminals 13 (TC) and 4 (CG) of DLC3.
SST 09843-18040

Fig 2: Connecting Intelligent Tester (With CAN VIM) To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Connecting Intelligent Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn the ignition switch ON.

Read and record any DTCs from the tire pressure warning light on the combination meter. Refer to the for examples of a normal system code and DTCs 13 and 33.

HINT:

If the tire pressure warning light does not blink to indicate any DTCs or the normal system code, inspect the tire pressure warning light circuit or 13 (TC) and 4 (CG) terminal circuits.

TIRE PRESSURE SPECIFICATIONS

Trouble Area	See procedure
Tire pressure warning light circuit	TIRE PRESSURE WARNING LIGHT CIRCUIT
TC and CG terminal circuit	TC AND CG TERMINAL CIRCUIT

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.

Refer to the DIAGNOSTIC TROUBLE CODE CHART .
After completing the check, turn the ignition switch OFF and remove SST from the DLC3.

CLEAR DTC
HINT:

After repairing the malfunctions, clear the DTCs.
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
