TIRE PRESSURE WARNING ECU (w/ Receiver): Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

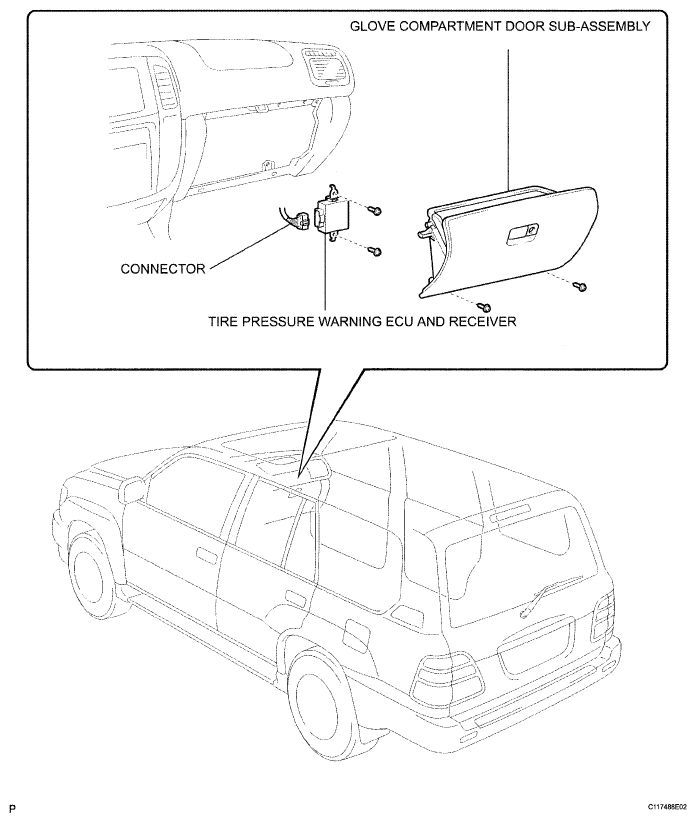

Fig 1: Identifying Tire Pressure Warning ECU (w/ Receiver) Component Location
G05197566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
