Camshaft Timing Oil Control Valve Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Camshaft Timing Oil Control Valve Assembly And Torque Specifications (1 Of 2)
G05196904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

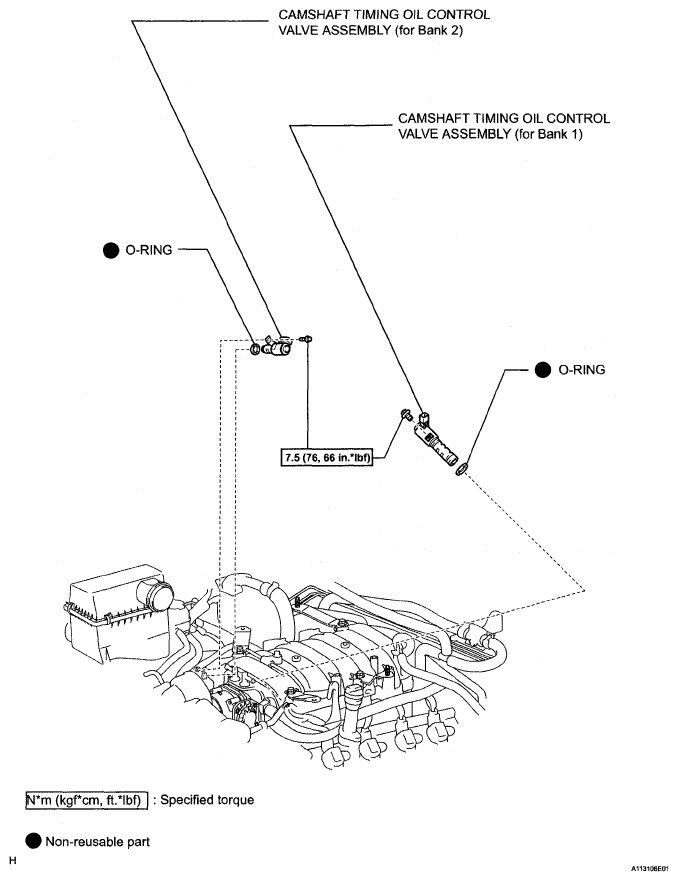

Fig 2: Camshaft Timing Oil Control Valve Assembly And Torque Specifications (2 Of 2)
G05196905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
