Valve Body Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SHIFT SOLENOID VALVE
1. Install the shift solenoid valve S2 with the bolt.
  Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)
2. Install the shift solenoid valve S1 with the bolt.
  Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
3. Install the shift solenoid valve SR with the 2 bolts.
  Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
4. Install the shift solenoid valve SLU and SL2 with the 2 pins, lock plate and bolt.
  Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)
5. Install the shift solenoid valve SLT and SL1 with the 2 pins, lock plate and bolt.
Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)

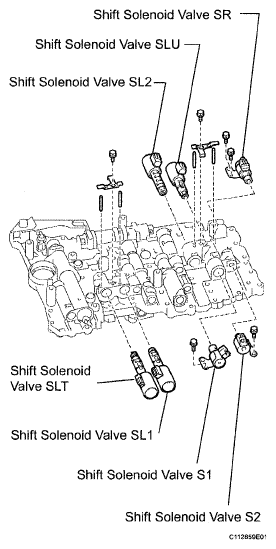

Fig 1: Installing Shift Solenoid Valves
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
