Parts Location

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

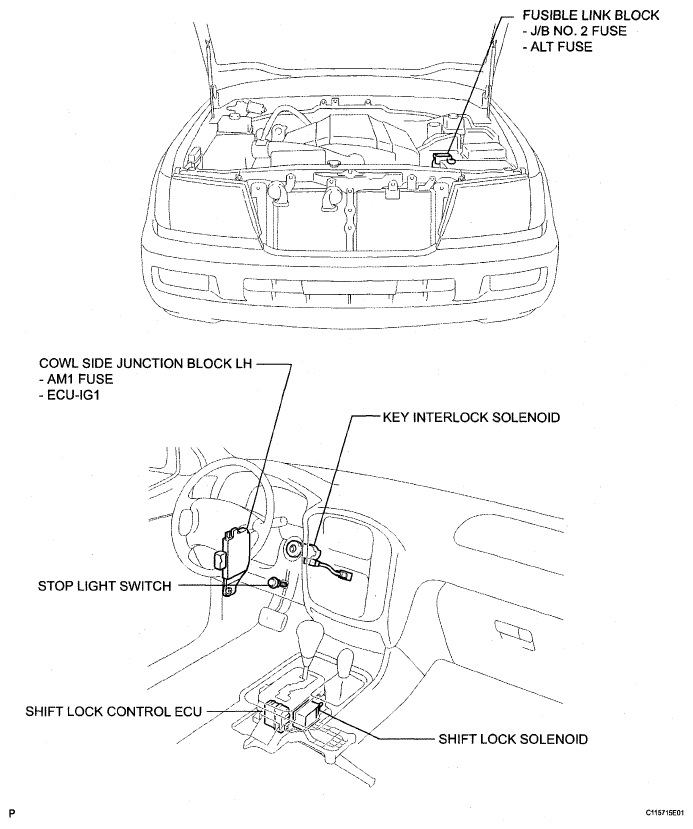

Fig 1: Identifying Shift Lock System Components Location
G05197120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
