Clutch Drum And Input Shaft Assembly: Inspection
- INSPECT REAR CLUTCH DISC
- Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt, 2) the lining of a disc is peeled off or discolored, or 3) grooves or printed numbers have even a little bit of damage.
NOTE: Before assembling new discs, soak them in ATF for at least 15 minutes. - INSPECT REVERSE CLUTCH HUB SUB-ASSEMBLY
- Using a caliper gauge, measure the inside diameter of the reverse clutch hub bushing.
Standard drum bushing: 35.812 to 35.837 mm (1.4099 to 1.4109 in.)
Maximum drum bushing: 35.887 mm (1.4129 in.)
If the inside diameter is greater than the maximum, replace the reverse clutch hub.
- INSPECT FORWARD CLUTCH HUB SUB-ASSEMBLY
- Using a caliper gauge, measure the inside diameter of the forward clutch hub bushing.
Standard drum bushing: 26.037 to 26. 062 mm (1.0251 to 1.0261 in.)
Maximum drum bushing: 26.112 mm (1.0280 in.)
If the inside diameter is greater than the maximum, replace the forward clutch hub.
- Using a caliper gauge, measure the inside diameter of the forward clutch hub bushing.
- INSPECT FORWARD MULTIPLE DISC CLUTCH DISC
- Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt, 2) the lining of a disc is peeled off or discolored, or 3) grooves or printed numbers have even a little bit of damage.
NOTE: Before assembling new discs, soak them in ATF for at least 15 minutes. - INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
- Using a vernier caliper, measure the free length of the spring together with the spring seat.
Standard free length: 26.74 mm (1.053 in.)
- INSPECT DIRECT CLUTCH DISK
- Replace all discs if one of the following problems is present: 1) a disc, plate or flange is worn or burnt, 2) the lining of a disc is peeled off or discolored, or 3) grooves or printed numbers have even a little bit of damage.
NOTE: Before assembling new discs, soak them in ATF for at least 15 minutes. - INSPECT REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY
- Using a vernier caliper, measure the free length of the spring together with the spring seat.
Standard free length: 21.04 mm (0.828 in.)
- INSPECT DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY
- Using a vernier caliper, measure the free length of the spring together with the spring seat.
Standard free length: 19.51 mm (0.768 in.)
- Using a vernier caliper, measure the free length of the spring together with the spring seat.
- INSPECT PACK CLEARANCE OF DIRECT CLUTCH

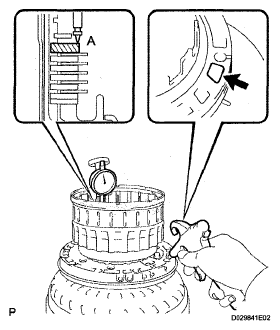

- Using a dial gauge, measure the moving distance (distance A) of the clutch flange at both ends across a diameter while blowing air from the oil hole as shown in the illustration, and calculate the average.
Pack clearance: 0.5 to 0.8 mm (0.020 to 0.031 in.)
NOTE: Install a selective flange (3.4 mm (0.134 in.)) when measuring the moving distance (shaded area in the illustration.)HINT:
Flange moving distance A = 0.26 to 1.14 mm (0.010 to 0.045 in.)
Pack clearance = Flange moving distance A - 0.05 mm (0.002 in.)
- If the pack clearance is outside the standard, select and install a clutch flange that makes the pack clearance within the standard.
Standard flange thickness
FLANGE THICKNESS SPECIFICATIONNo. Thickness No. Thickness 0 3.0 mm (0.118 in.) 5 3.5 mm (0.138 in.) 1 3.1 mm (0.122 in.) 6 3.6 mm (0.142 in.) 2 3.2 mm (0.126 in.) 7 3.7 mm (0.146 in.) 3 3.3 mm (0.130 in.) 8 3.8 mm (0.150 in.) 4 3.4 mm (0.134 in.) - - - Using a dial gauge, measure the moving distance (distance A) of the clutch flange at both ends across a diameter while blowing air from the oil hole as shown in the illustration, and calculate the average.
- INSPECT PACK CLEARANCE OF REVERSE CLUTCH
- Using a dial gauge, measure the reverse clutch piston stroke (distance A) and the moving distance (distance B) of the reverse flange at the both ends across a diameter while blowing air (392 kPa, 4 kgf/cm2
, 57 psi) from the oil hole as shown in the illustration, and calculate the average.
Pack clearance: 0.5 to 0.8 mm (0.020 to 0.031 in.)
NOTE: Install a selective flange (3.3 mm (0.130 in.)) when measuring the moving distance (shaded area in the illustration.)HINT:
Piston stroke A = 1.05 to 2.15 mm (0.041 to 0.085 in.)
Flange moving distance B = 0.72 to 1.08 mm (0.029 to 0.043 in.)
Pack clearance = Piston stroke A to Flange moving distance B to 0.06 mm (0.002 in.)
- If the pack clearance is outside the standard, select and install a clutch flange that makes the pack clearance within the standard.
Standard flange thickness
FLANGE THICKNESS SPECIFICATIONNo. Thickness No. Thickness 0 2.8 mm (0.110 in.) 6 3.4 mm (0.134 in.) 1 2.9 mm (0.114 in.) 7 3.5 mm (0.138 in.) 2 3.0 mm (0.118 in.) 8 3.6 mm (0.142 in.) 3 3.1 mm (0.122 in.) 9 3.7 mm (0.146 in.) 4 3.2 mm (0.126 in.) A 3.8 mm (0.150 in.) 5 3.3 mm (0.130 in.) - - Using a dial gauge, measure the reverse clutch piston stroke (distance A) and the moving distance (distance B) of the reverse flange at the both ends across a diameter while blowing air (392 kPa, 4 kgf/cm2
, 57 psi) from the oil hole as shown in the illustration, and calculate the average.
- INSPECT PACK CLEARANCE OF FORWARD CLUTCH
- Using a dial gauge, measure the moving distance (distance A) of the clutch flange at both end across a diameter while blowing air from the oil hole as shown in the illustration, and calculate the average.
Standard pack clearance: 0.6 to 0.9 mm (0.024 to 0.354 in.)
NOTE: Install a selective flange (3.4 mm (0.134 in.)) when measuring the moving distance (shaded area in the illustration.)HINT:
Flange moving distance A = 0.26 to 1.36 mm (0.010 to 0.054 in.)
Pack clearance = Flange moving distance A to 0.01 mm (0.0003 in.)
- If the pack clearance is outside the standard, select and install a clutch flange that makes the pack clearance within the standard.
Standard flange thickness
FLANGE THICKNESS SPECIFICATIONNo. Thickness No. Thickness 0 3.0 mm (0.118 in.) 6 3.6 mm (0.142 in.) 1 3.1 mm (0.122 in.) 7 3.7 mm (0.146 in.) 2 3.2 mm (0.126 in.) 8 3.8 mm (0.150 in.) 3 3.3 mm (0.130 in.) 9 3.9 mm (0.154 in.) 4 3.4 mm (0.134 in.) A 4.0 mm (0.158 in.) 5 3.5 mm (0.138 in.) - - Using a dial gauge, measure the moving distance (distance A) of the clutch flange at both end across a diameter while blowing air from the oil hole as shown in the illustration, and calculate the average.
