Clutch Drum And Input Shaft Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

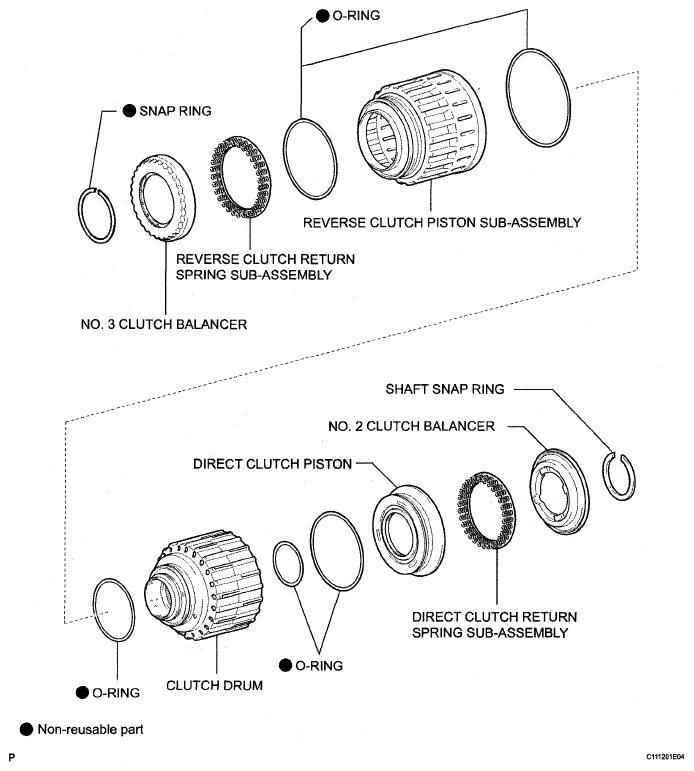

Fig 1: Identifying Clutch Drum And Input Shaft Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

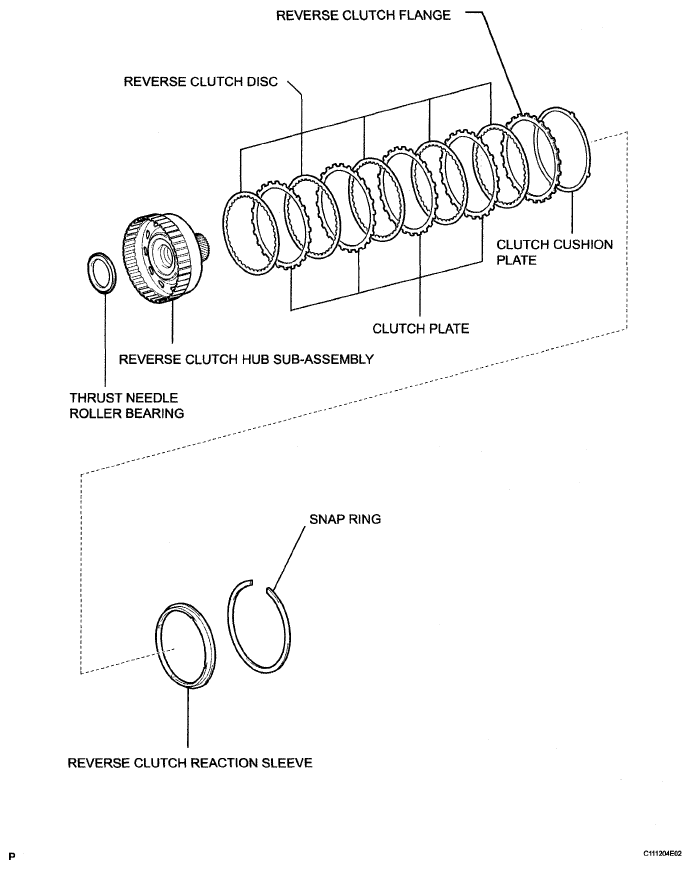

Fig 2: Identifying Clutch Drum And Input Shaft Assembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Clutch Drum And Input Shaft Assembly Components (3 Of 4)

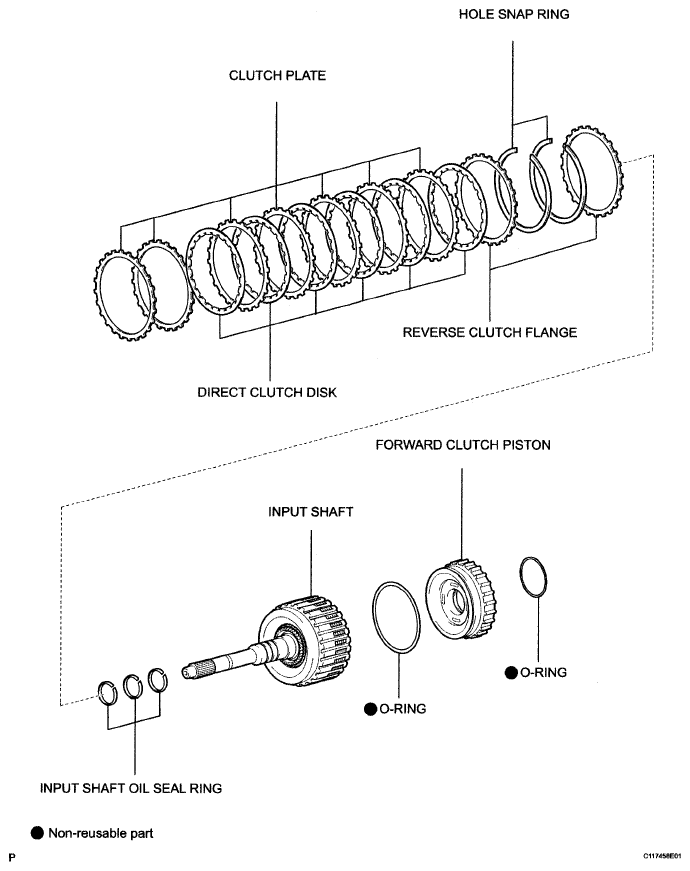

Fig 4: Identifying Clutch Drum And Input Shaft Assembly Components (4 Of 4)
