System Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the A750F automatic transmission is as shown in the following chart.

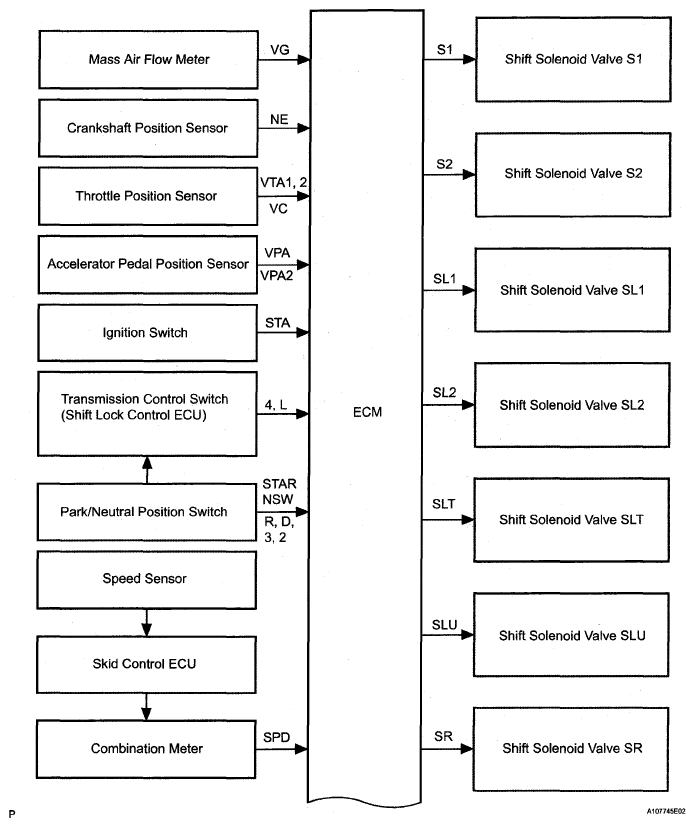

Fig 1: Automatic Transmission System Diagram (1 Of 4)
G05196961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

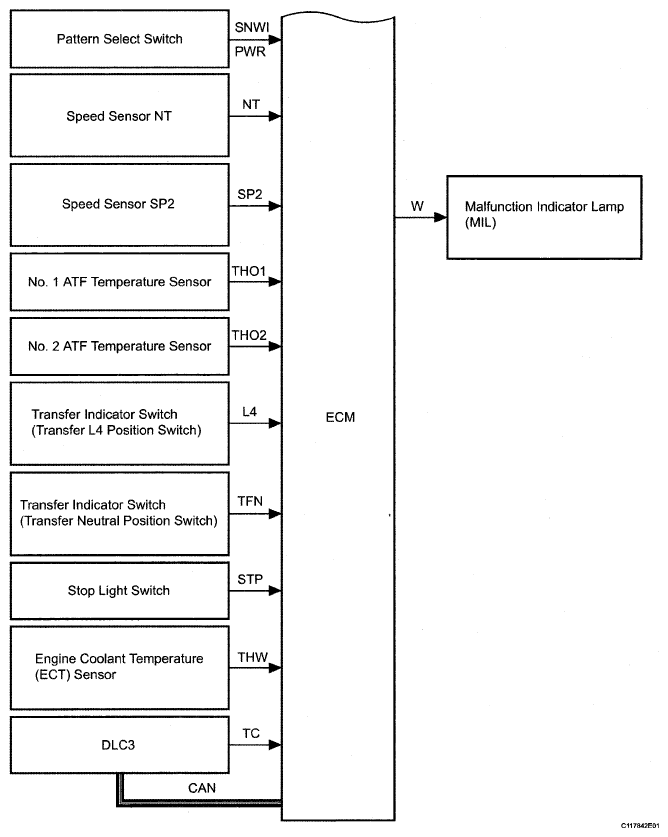

Fig 2: Automatic Transmission System Diagram (2 Of 4)
G05196962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

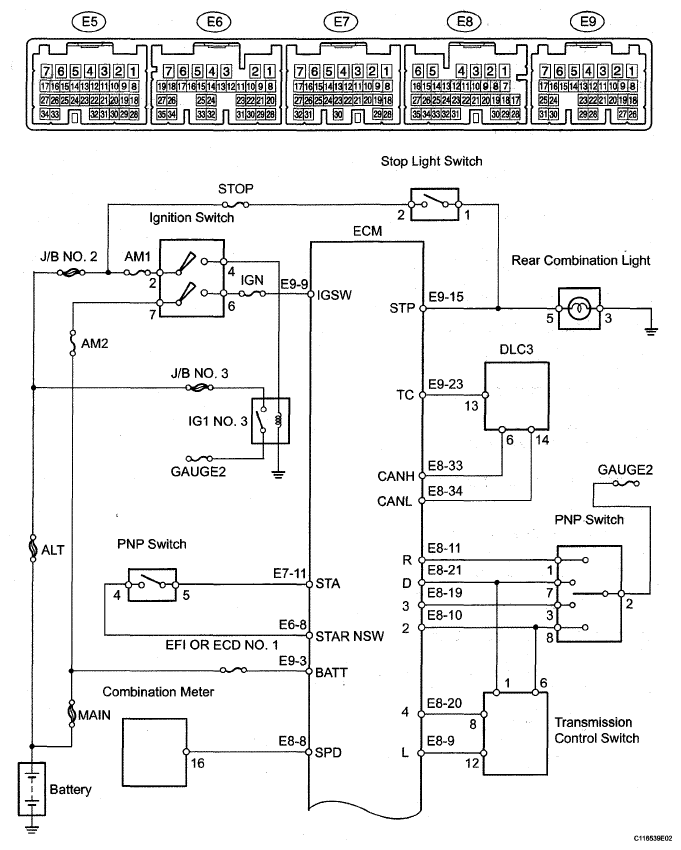

Fig 3: Automatic Transmission System Diagram (3 Of 4)
G05196963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

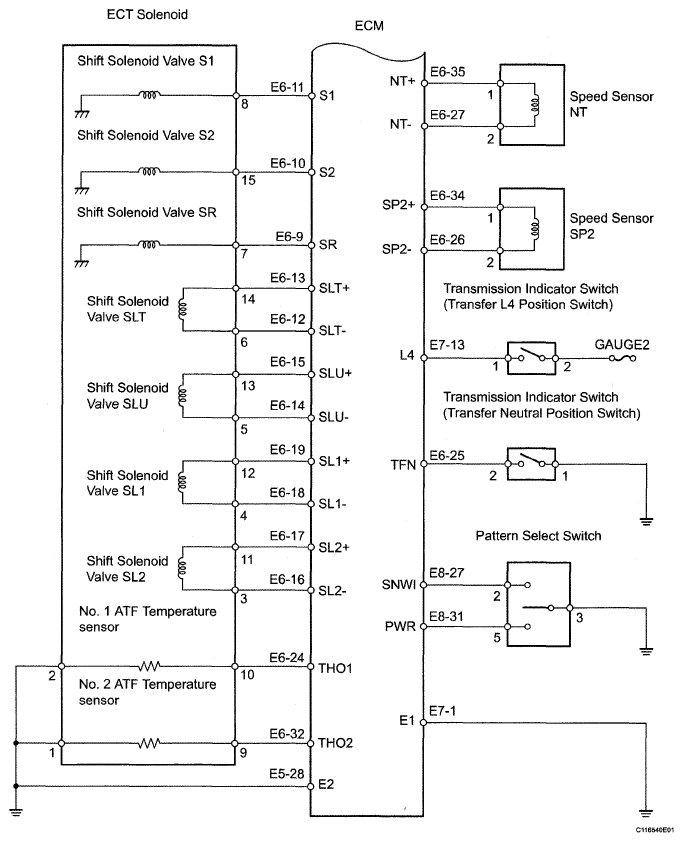

Fig 4: Automatic Transmission System Diagram (4 Of 4)
G05196964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
