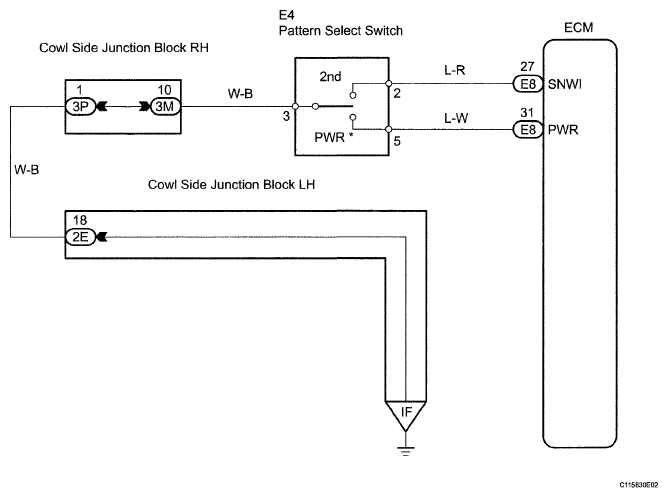

Pattern Select Switch Power Mode Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
*: Pattern select switch (PWR mode switch)
When the PWR mode switch is pushed, the switch contact is made and the PWR mode is selected.
To cancel the PWR mode, push the PWR mode switch once again.
