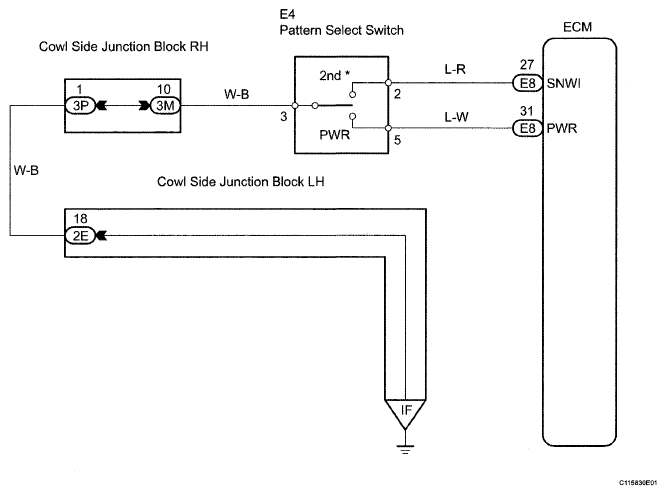

Pattern Select Switch 2nd Start Mode Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
*: Pattern select switch (2nd start switch)
When the 2nd start switch is pushed, the switch contact is made and the 2nd mode is selected.
To cancel the 2nd start, push the 2nd start switch once again.
