Parts Location

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

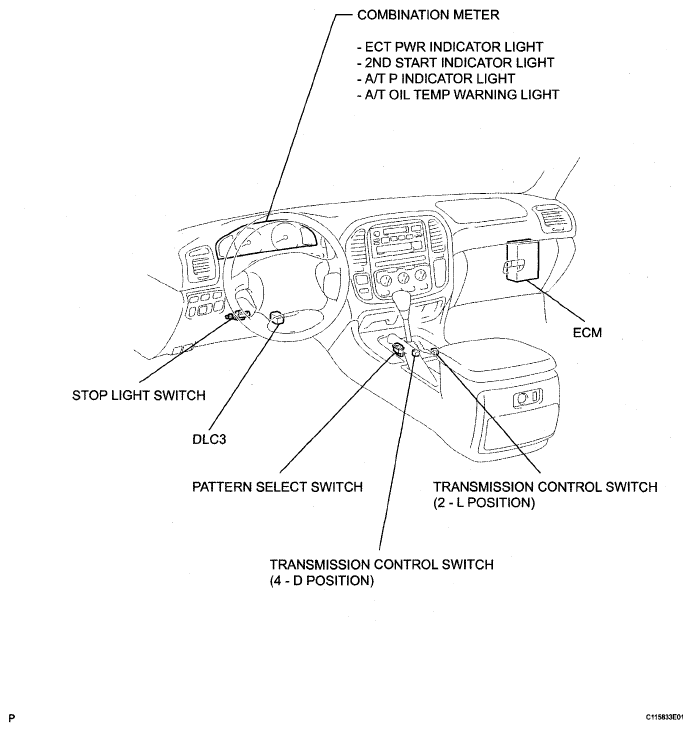

Fig 1: Identifying Automatic Transmission System Components Location (1 Of 2)
G05196959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

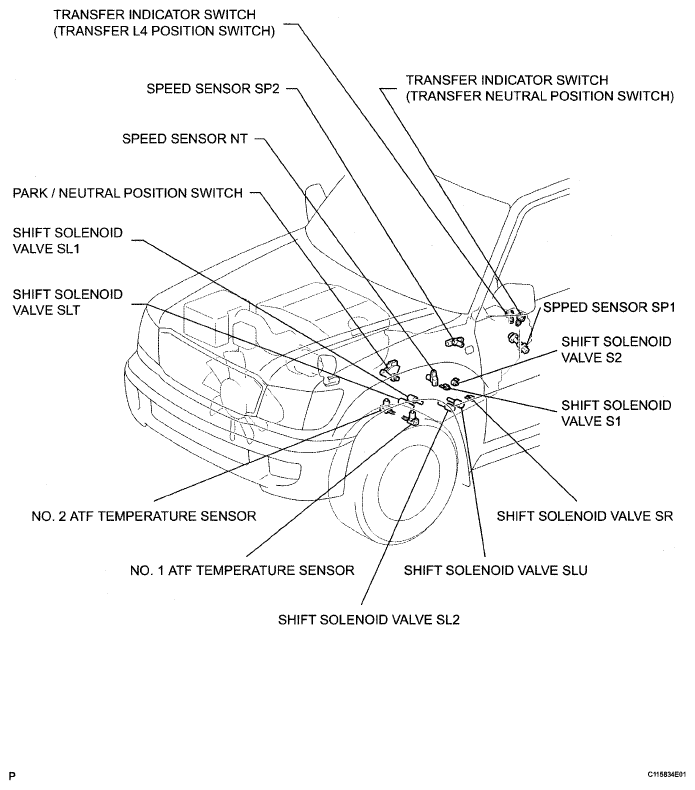

Fig 2: Identifying Automatic Transmission System Components Location (2 Of 2)
G05196960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
