DTC P0300 Random / Multiple Cylinder Misfire Detected; DTC P0301 Cylinder 1 Misfire Detected; DTC P0302 Cylinder 2 Misfire Detected; DTC P0303 Cylinder 3 Misfire Detected; DTC P0304 Cylinder 4 Misfire Detected: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

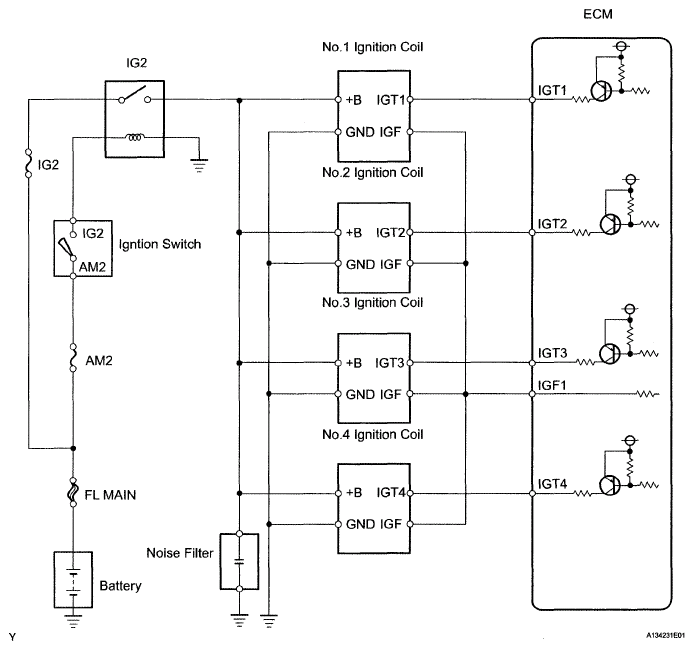

Wiring diagram of the ignition system.

Fig 1: Ignition System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

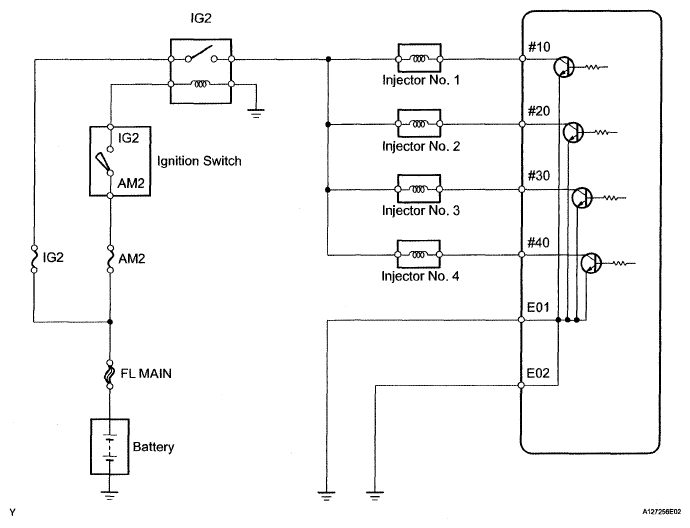

Wiring diagram of the injector circuit.

Fig 2: Injector Wiring Diagram
