Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

INSPECT IGNITION COIL ASSEMBLY (POWER SOURCE)

Disconnect the ignition coil with igniter connector.

Measure the resistance.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
B56-4 (GND) - Body ground	Below 1 Ω
B42-4 (GND) - Body ground	Below 1 Ω
B55-4 (GND) - Body ground	Below 1 Ω
B41-4 (GND) - Body ground	Below 1 Ω
B49-4 (GND) - Body ground	Below 1 Ω
B39-4 (GND) - Body ground	Below 1 Ω

Fig 1: Identifying Ignition Coil With Igniter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the ignition switch ON.

Measure the voltage between the terminals of the wire harness side connector.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
B56-1 (+B) - B56-4 (GND)	9 to 14 V
B42-1 (+B) - B42-4 (GND)	9 to 14 V
B55-1 (+B) - B55-4 (GND)	9 to 14 V
B41-1(+B) - B41-4(GND)	9 to 14 V
B49-1 (+B) - B49-4 (GND)	9 to 14 V
B39-1 (+B) - B39-4 (GND)	9 to 14 V

Reconnect the ignition coil with igniter connector.

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO to Next Step

CHECK WIRE HARNESS (IGNITION COIL ASSEMBLY - ECM)

Disconnect the ignition coil with connector.
Disconnect the B30 ECM connector.

Measure the resistance.

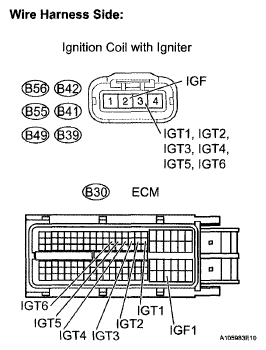

Fig 2: Identifying Ignition Coil With Igniter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
B56-2 (IGF) - B30-106 (IGF1)	Below 1 Ω
B42-2(IGF) - B30-106(IGF1)	Below 1 Ω
B55-2 (IGF) - B30-106 (IGF1)	Below 1 Ω
B41-2 (IGF) - B30-106 (IGF1)	Below 1 Ω
B49-2 (IGF) - B30-106 (IGF1)	Below 1 Ω
B39-2 (IGF) - B30-106 (IGF1)	Below 1 Ω
B56-3 (IGT1) - B30-40 (IGT1)	Below 1 Ω
B42-3 (IGT2) - B30-39 (IGT2)	Below 1 Ω
B55-3 (IGT3) - B30-38 (IGT3)	Below 1 Ω
B41-3 (IGT4) - B30-37 (IGT4)	Below 1 Ω
B49-3 (IGT5) - B30-36 (IGT5)	Below 1 Ω
B39-3 (IGT6) - B30-35 (IGT6)	Below 1 Ω
B56-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B42-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B55-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B41-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B49-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B39-2 (IGF) or B30-106 (IGF1) - Body ground	10 kΩ or higher
B56-3 (IGT1) or B30-40 (IGT1) - Body ground	10 kΩ or higher
B42-3 (IGT2) or B30-39 (IGT2) - Body ground	10 kΩ or higher
B55-3 (IGT3) or B30-38 (IGT3) - Body ground	10 kΩ or higher
B41-3 (IGT4) or B30-37 (IGT4) - Body ground	10 kΩ or higher
B49-3 (IGT5) or B30-36 (IGT5) - Body ground	10 kΩ or higher
B39-3 (IGT6) or B30-35 (IGT6) - Body ground	10 kΩ or higher

Reconnect the ECM connector.
Reconnect the ignition coil with igniter connector.

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO to Next Step

CHECK WHETHER DTC OUTPUT RECURS (DTC P0351, P0352, P0353, P0354, P0355 OR P0356)

Connect the intelligent tester to the DLC3.
Turn the ignition switch ON and turn the tester ON.
Clear DTCs (see DTC CHECK/CLEAR ).
Shuffle arrangement of the ignition coils with igniters (among No. 1 to No. 6 cylinders).
NOTE: Do not shuffle the connectors.
Perform a simulation test.
Check DTCs displayed on the tester.

Result

RESULT CHART

Display (DTC Output)	Proceed to
Same DTC output	A
Different ignition coil DTC output	B

B: REPLACE IGNITION COIL ASSEMBLY

A: REPLACE ECM
