Wiper Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WIPER AND WASHER SWITCH ASSEMBLY
    1. Attach the claw to install the wiper switch.
    2. Connect the connectors.
      NOTE: Do not push the claw with excessive force as damage may occur.
  2. INSTALL STEERING COLUMN COVER LOWER (See appropriate step(s) under  INSTALLATION  )

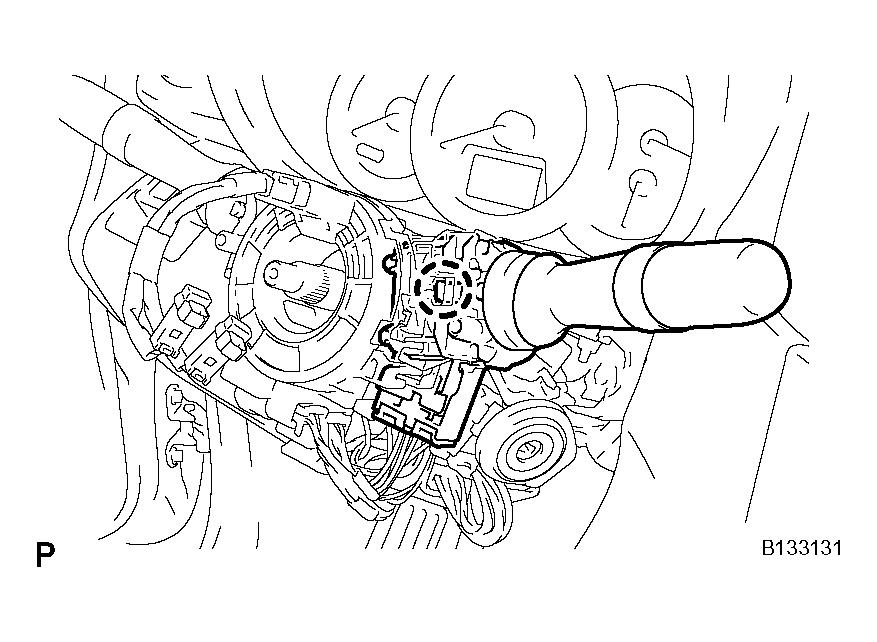

    Fig 1: Attaching Claw For Installing Wiper Switch
    G04490991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL STEERING COLUMN COVER UPPER (See appropriate step(s) under  INSTALLATION  )
  4. INSTALL STEERING WHEEL ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  6. INSPECT STEERING WHEEL CENTER POINT
  7. INSTALL STEERING PAD ASSEMBLY (See appropriate Step(s) under  INSTALLATION  )
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. INSPECT STEERING PAD ASSEMBLY (See appropriate Step(s) under  INSTALLATION  )
  10. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See appropriate step(s) under PROBLEM SYMPTOMS TABLE ).
