INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
HINT:

This check should be performed with the windshield washer motor and pump installed to the washer jar.
1. Fill the washer jar with washer fluid.
2. Connect the battery's positive (+) lead to terminal 1 of the washer motor and pump, and the negative (-) lead to terminal 2.
3. Check that washer fluid flows from the washer jar.
  OK: Washer fluid flows from the washer jar.

  If the result is not as specified, replace the washer motor and pump assembly.

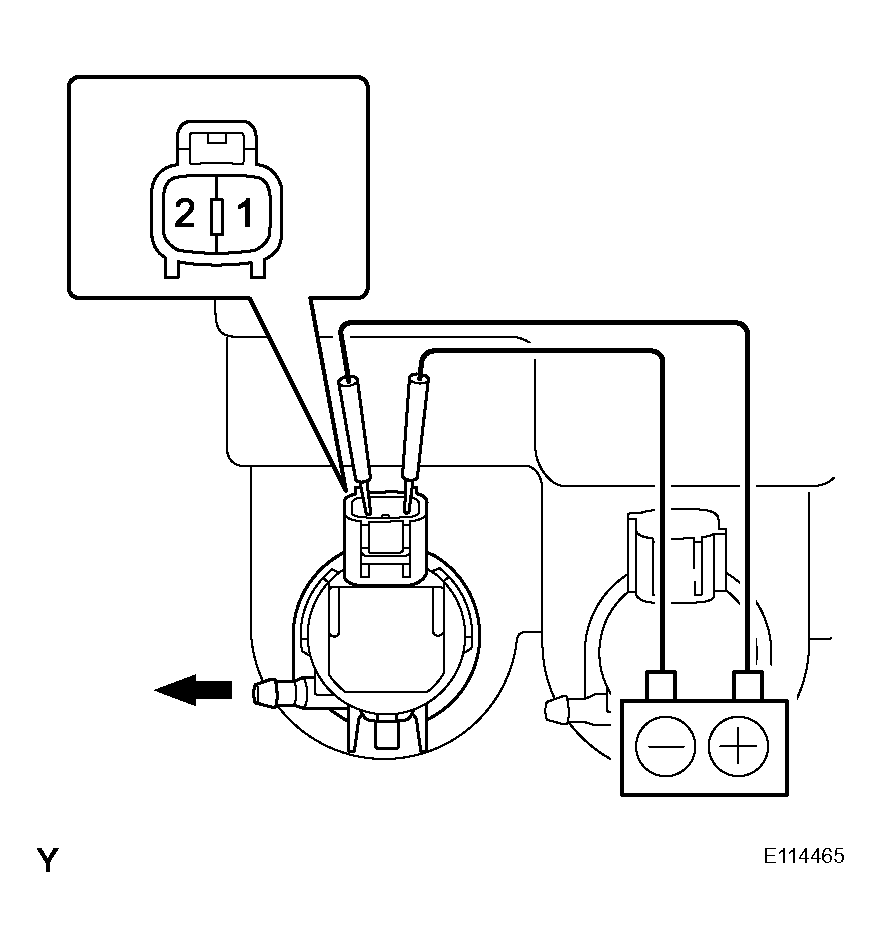

  Fig 1: Inspecting Windshield Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR WASHER MOTOR AND PUMP ASSEMBLY
1. Fill the washer jar with washer fluid.
2. Connect the battery's positive (+) lead to terminal 1 of the washer motor and pump, and the negative (-) lead to terminal 2.
3. Check that washer fluid flows from the washer jar.
  OK: Washer fluid flows from the washer jar.

  If the result is not as specified, replace the washer motor and pump assembly.

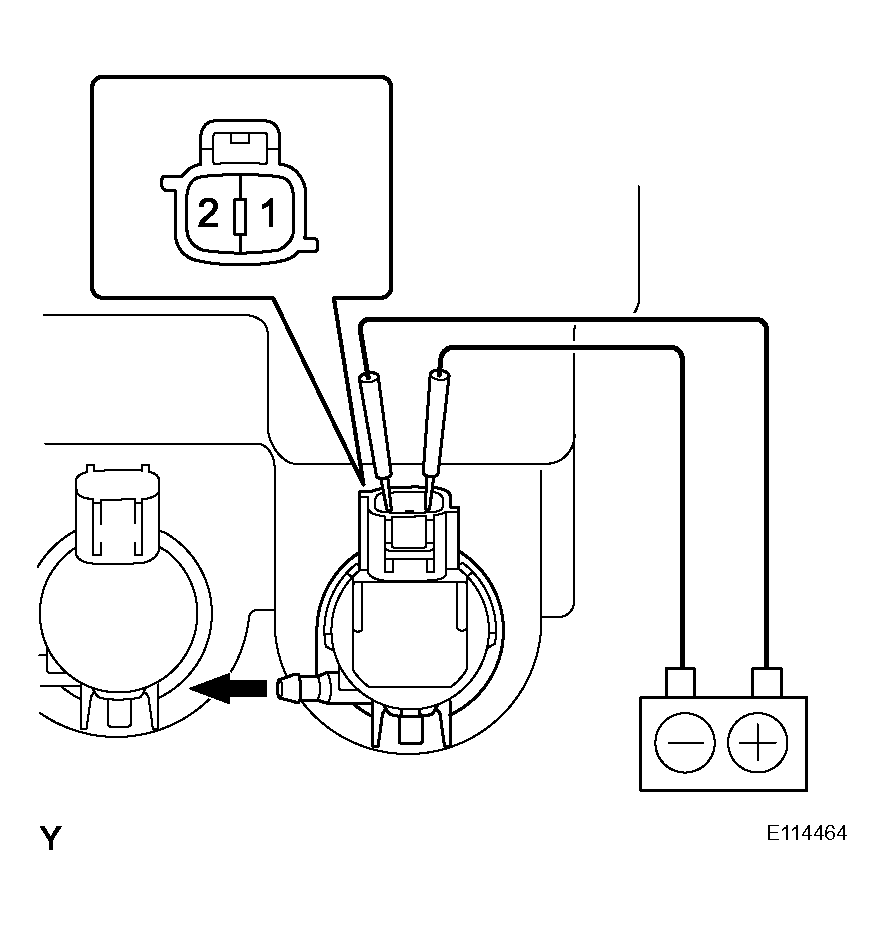

  Fig 2: Inspecting Rear Washer Motor And Pump Assembly
