Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR WIPER MOTOR ASSEMBLY
1. Install the wiper motor with the 3 bolts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the connector.
INSTALL REAR WIPER MOTOR GROMMET
INSTALL REAR WIPER ARM AND BLADE ASSEMBLY
1. Stop the wiper motor at the automatic stop position.

  Fig 1: Installing Rear Wiper Arm And Blade Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the wiper arm serration with a round file or equivalent.
3. Clean the wiper pivot serration with a wire brush.

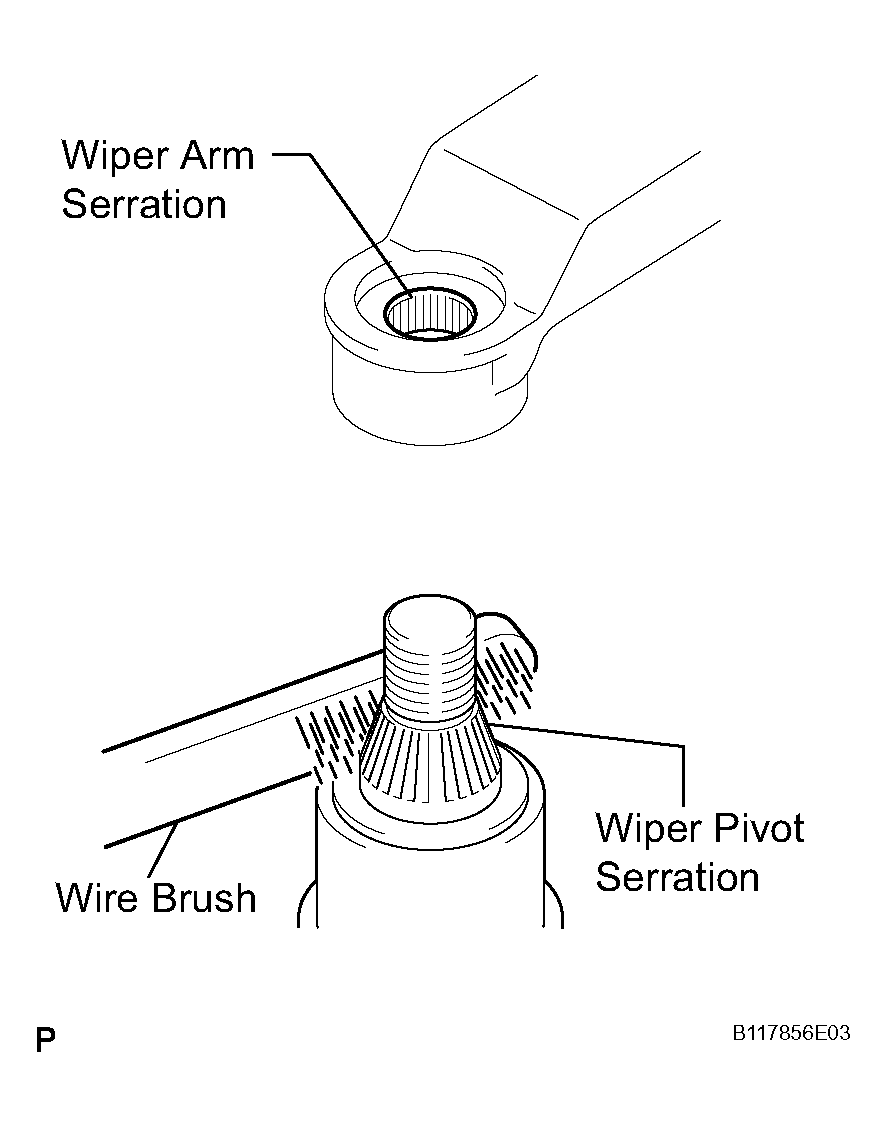

  Fig 2: Cleaning Wiper Pivot Serration Using Wire Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the arm and blade with the nut. Make sure that the arm and blade comes to the position shown in the illustration.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  HINT:
  - Hold down the arm hinge by hand while tightening the nut.
  - Install the arm and blade so that the rear wiper blade is aligned with the ceramic line.

    Fig 3: Positions For Installing Arm And Blade
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the cap.
INSTALL BACK DOOR TRIM BOARD ASSEMBLY (See appropriate step(s) under REASSEMBLY )
INSTALL BACK DOOR SIDE GARNISH RH (See appropriate step(s) under REASSEMBLY )
INSTALL BACK DOOR SIDE GARNISH LH (See appropriate step(s) under REASSEMBLY )
INSTALL BACK DOOR CENTER GARNISH (See appropriate step(s) under REASSEMBLY )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
