Front Wiper Rubber: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WIPER RUBBER
1. Install the 2 packing plates to the rubber.
  NOTE: Install the packing plates facing the proper direction.

  Fig 1: Installing 2 Packing Plates To Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wiper rubber to the claw of the wiper blade in the direction indicated by the arrow in the illustration.
  HINT:

  Install the wiper rubber so that the head part (large side) of the wiper rubber faces the arm axle side.

  Fig 2: Positions For Installing Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the head part (large side) of the wiper rubber to the rear end side claw of the wiper blade.
  NOTE: Push the wiper blade into the grooves of the wiper rubber to attach them completely.

  Fig 3: Attaching Head Part (Large Side) Of Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WIPER BLADE
1. Attach the claw to install the wiper blade.

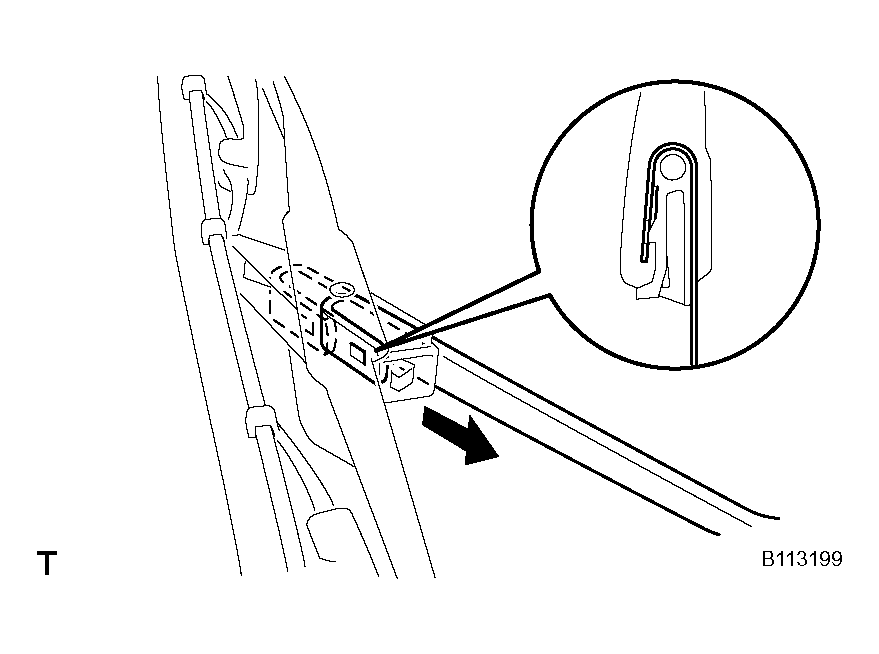

  Fig 4: Attaching Claw To Installing Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
