Front Wiper Motor: Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT WIPER MOTOR
1. Check the LO operation.
  1. Connect the battery's positive (+) lead to terminal 5 (+1) and the negative (-) lead to terminal 4 (E), and check that the front wiper motor operates at low speed (LO).
    OK: Front wiper motor operates at low speed (LO).

    If the result is not as specified, replace the motor.

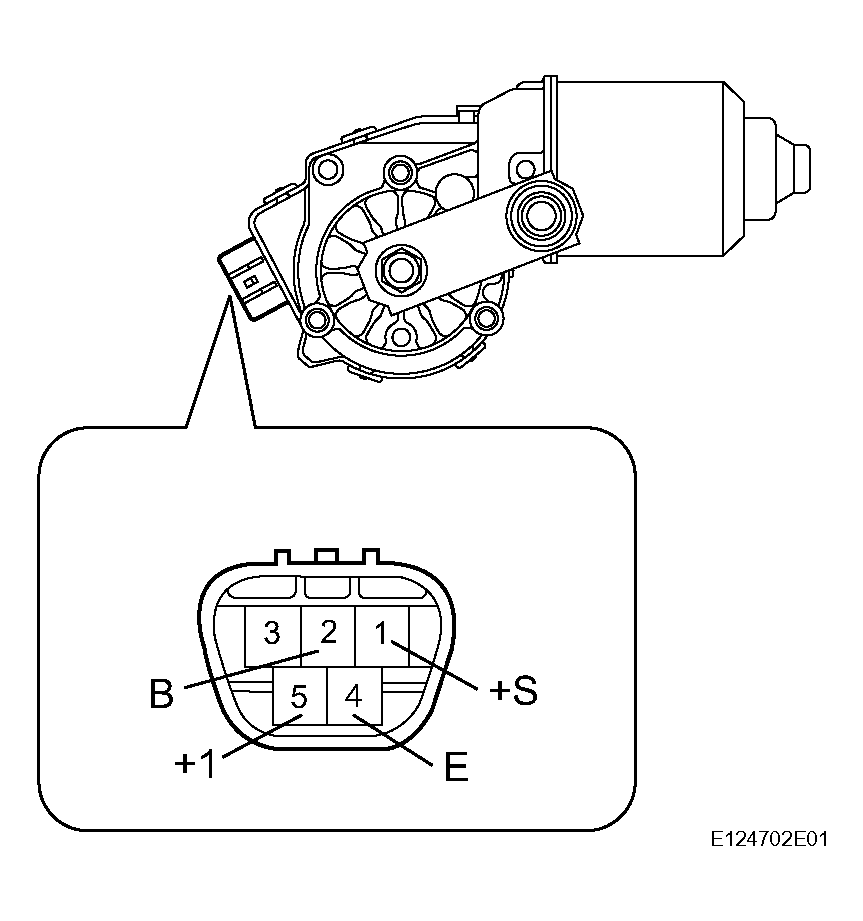

    Fig 1: Inspecting Front Wiper Motor (LO Operation)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the HI operation.
  1. Connect the battery's positive (+) lead to terminal 3 (+2) and the negative battery (-) lead to terminal 4 (E), and check that the front wiper motor operates at high speed (HI).
    OK: Front wiper motor operates at high speed (HI).

    If the result is not as specified, replace the motor.

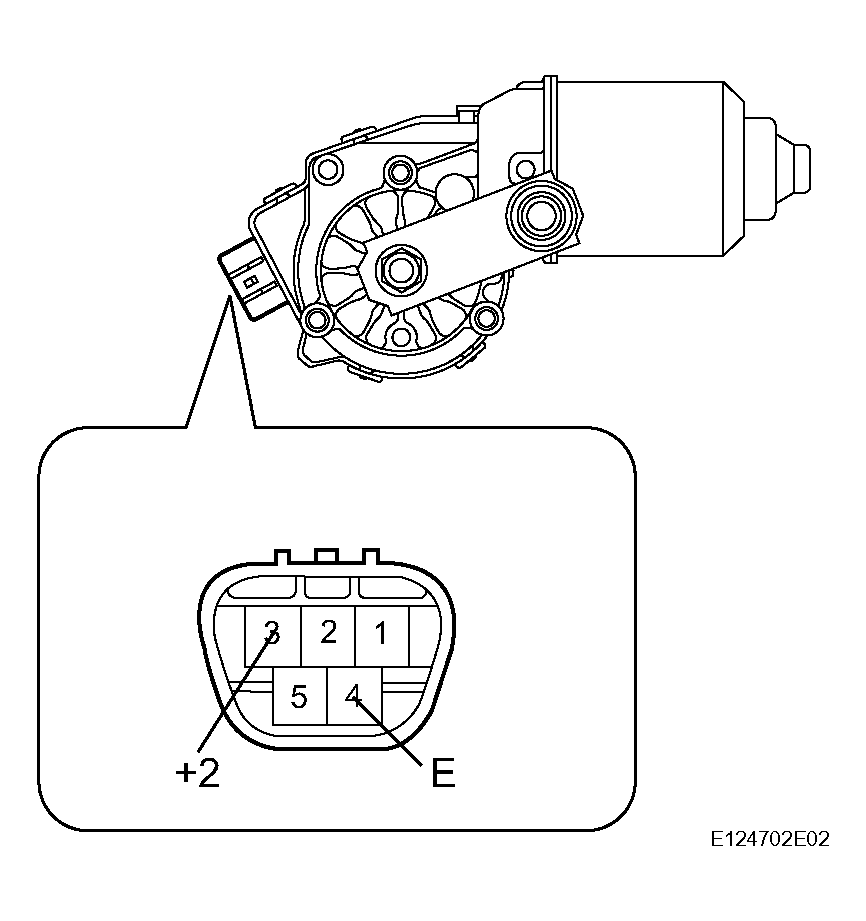

    Fig 2: Inspecting Front Wiper Motor (HI Operation)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the automatic stop operation.
  1. Connect the battery's positive (+) lead to terminal 5 (+1) and the negative (-) lead to terminal 4 (E). With the motor rotating at low speed (LO), disconnect the lead from terminal 5 (+1) to stop the wiper motor operation at any position other than the automatic stop position.
  2. Using SST, connect the terminals 1 (+S) and 5 (+1). Then connect the battery's positive (+) lead to terminal 2 (B) to restart the motor operation at low speed (LO).

    Fig 3: Checking Automatic Stop Operation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check that the motor stops automatically at the automatic stop position.
    OK: Refer to Fig 4 .

    If the result is not as specified, replace the motor.

    Fig 4: Checking Motor Stops Automatically
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
