Front Wiper Motor And Link: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

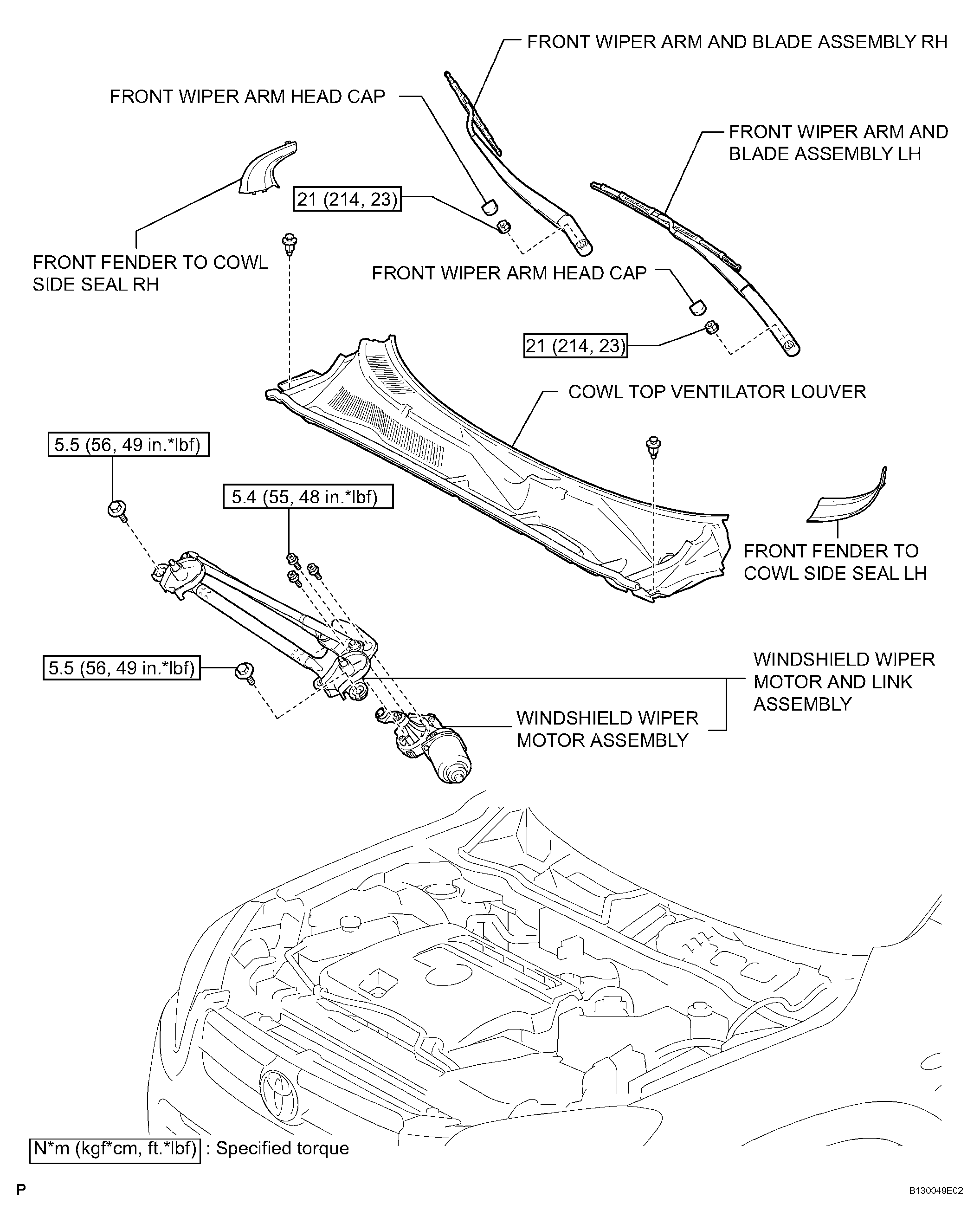

Fig 1: Front Wiper Motor And Link Replacement Components With Torque Specifications
G04490932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
