Outer Mirror Switch: Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

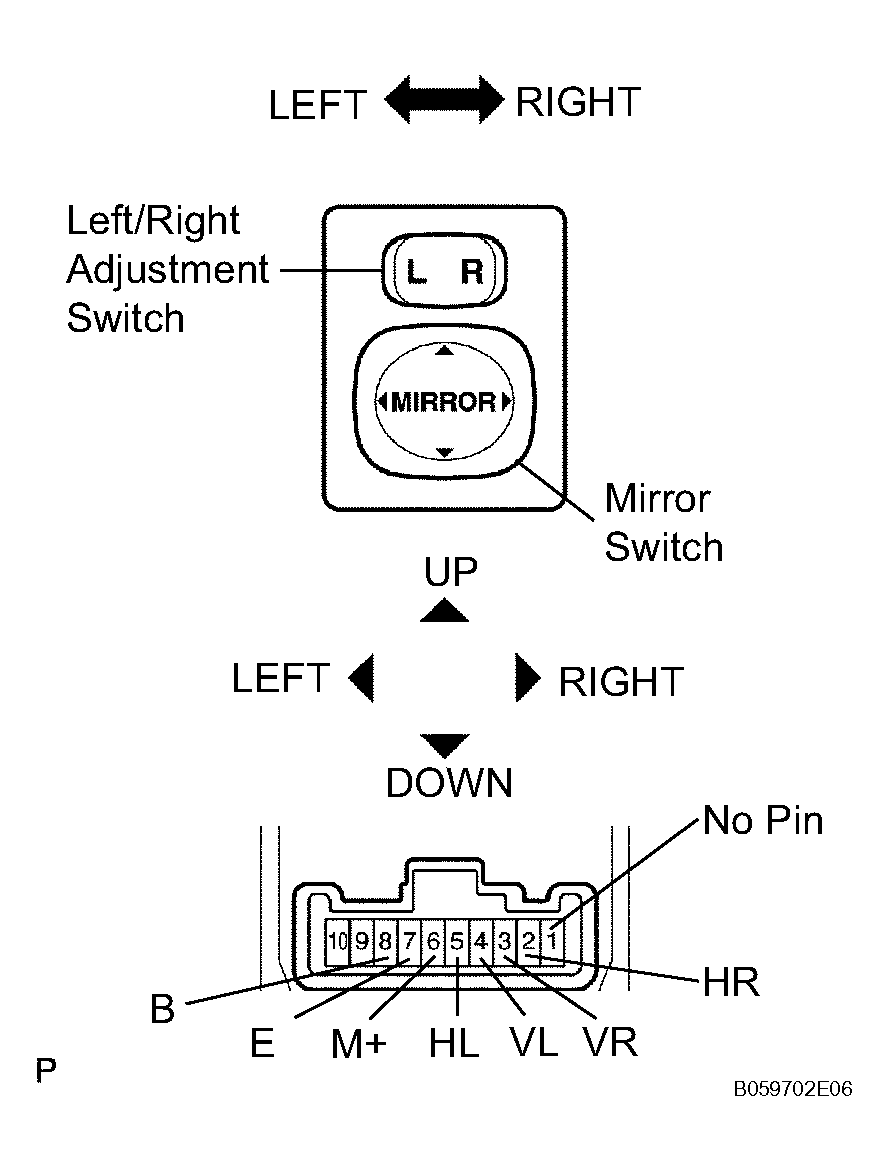

- INSPECT OUTER MIRROR SWITCH ASSEMBLY
- The L position of the left/right adjustment switch: Measure the resistance of the mirror switch.
Standard resistance (for left side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REFERENCE CHART (TESTING LEFT SIDE)Tester Connection Switch Condition Specified Condition 4 (VL) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω OFF 10 kΩ or higher 4 (VL) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω OFF 10 kΩ or higher 5 (HL) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω OFF 10 kΩ or higher 5 (HL) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω OFF 10 kΩ or higher If the result is not as specified, replace the switch assembly.
- The R position of the left/right adjustment switch: Measure the resistance of the mirror switch. Refer to Fig 1.
Standard resistance (for right side)
REFERENCE CHART (TESTING RIGHT SIDE)Tester Connection Switch Condition Specified Condition 3 (VR) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω OFF 10 kΩ or higher 3 (VR) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω OFF 10 kΩ or higher 2 (HR) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω OFF 10 kΩ or higher 2 (HR) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω OFF 10 kΩ or higher If the result is not as specified, replace the switch assembly.
- The L position of the left/right adjustment switch: Measure the resistance of the mirror switch.
