Fuel Pump Resistor: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PUMP RESISTOR
1. Install the resistor with the 2 bolts.
  Torque: 7.0 N*m (71.4 kgf*cm, 62 in.*lbf)
2. Connect the connector.
INSTALL FUEL PUMP RESISTOR COVER
1. Install the cover to the resistor.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

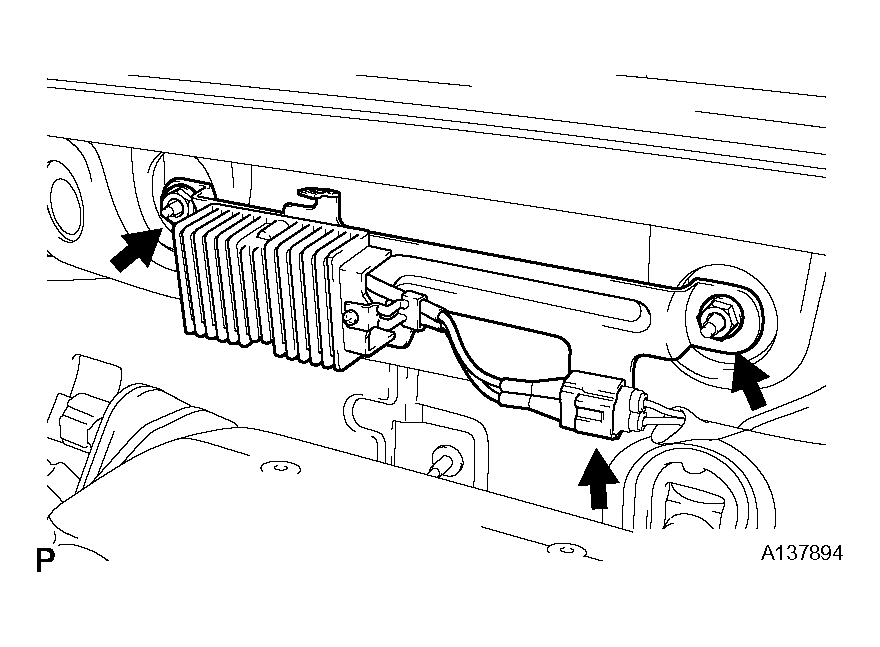

Fig 1: Installing Cover To Resistor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
