Steering Gear: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

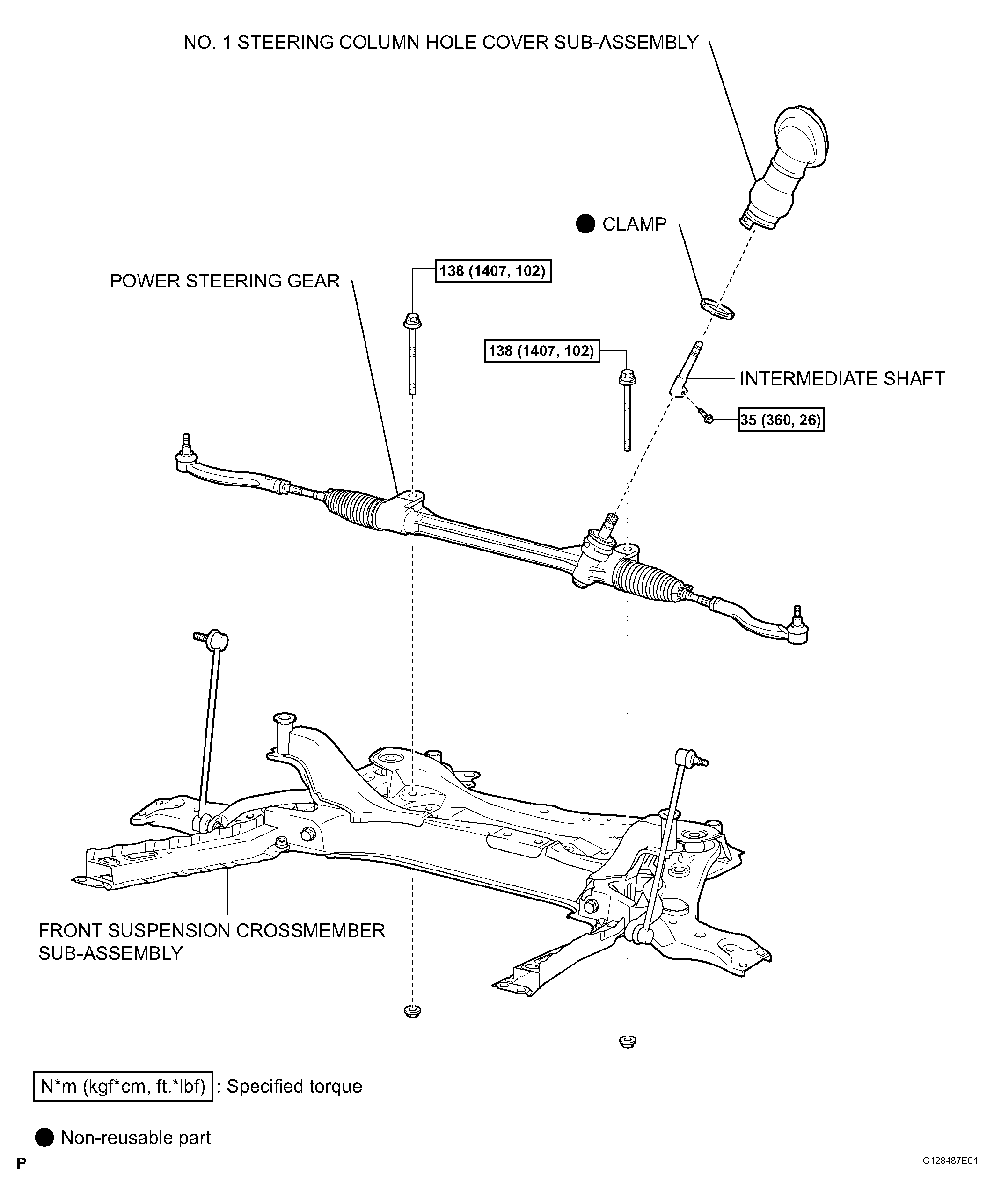

Fig 1: Steering Gear Replacement Components With Torque Specifications
G04489754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

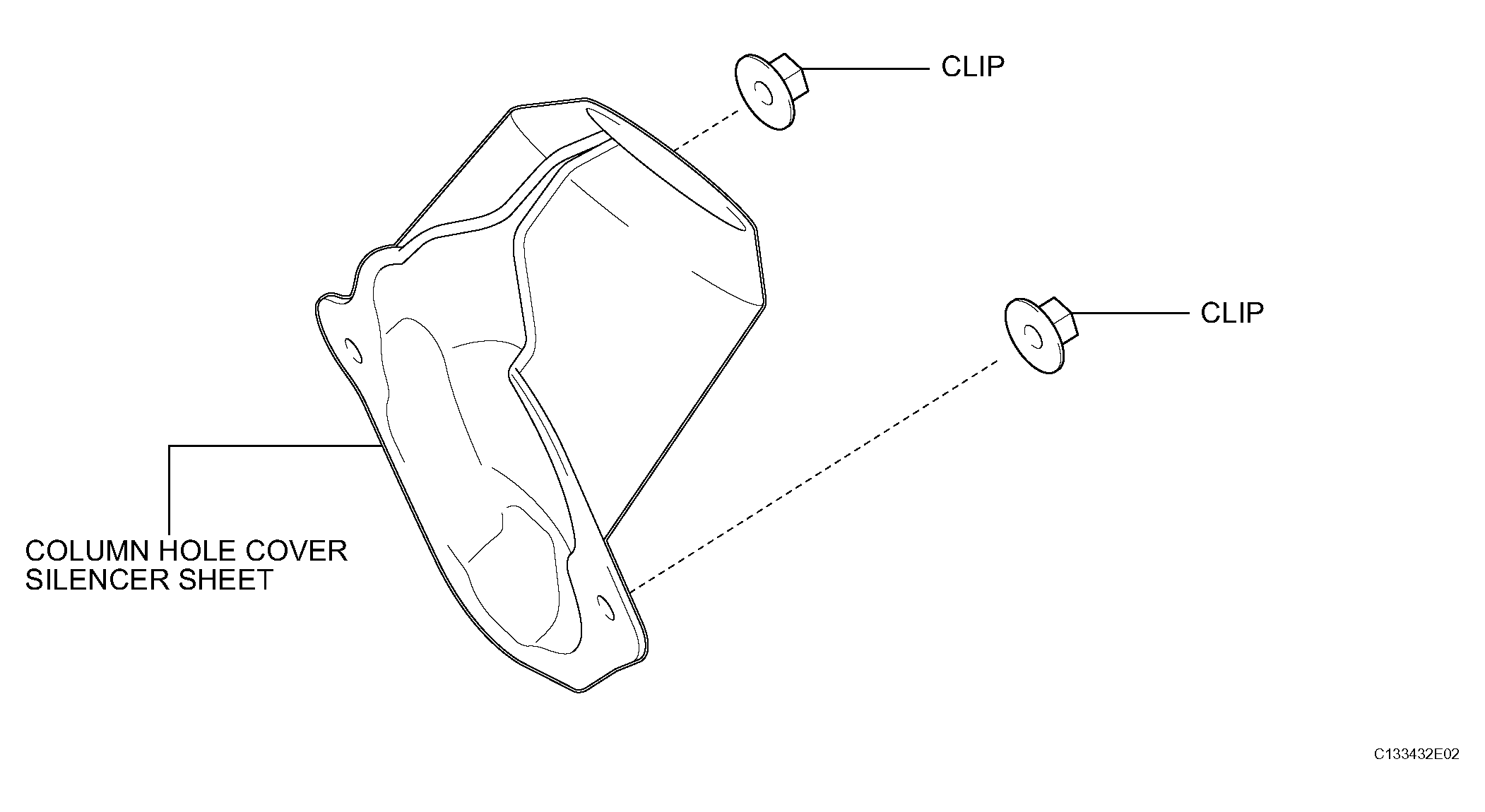

Fig 2: Identifying Steering Column Hole Cover Silence Sheet
G04489755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
