Terminals Of Ecu

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER STEERING ECU

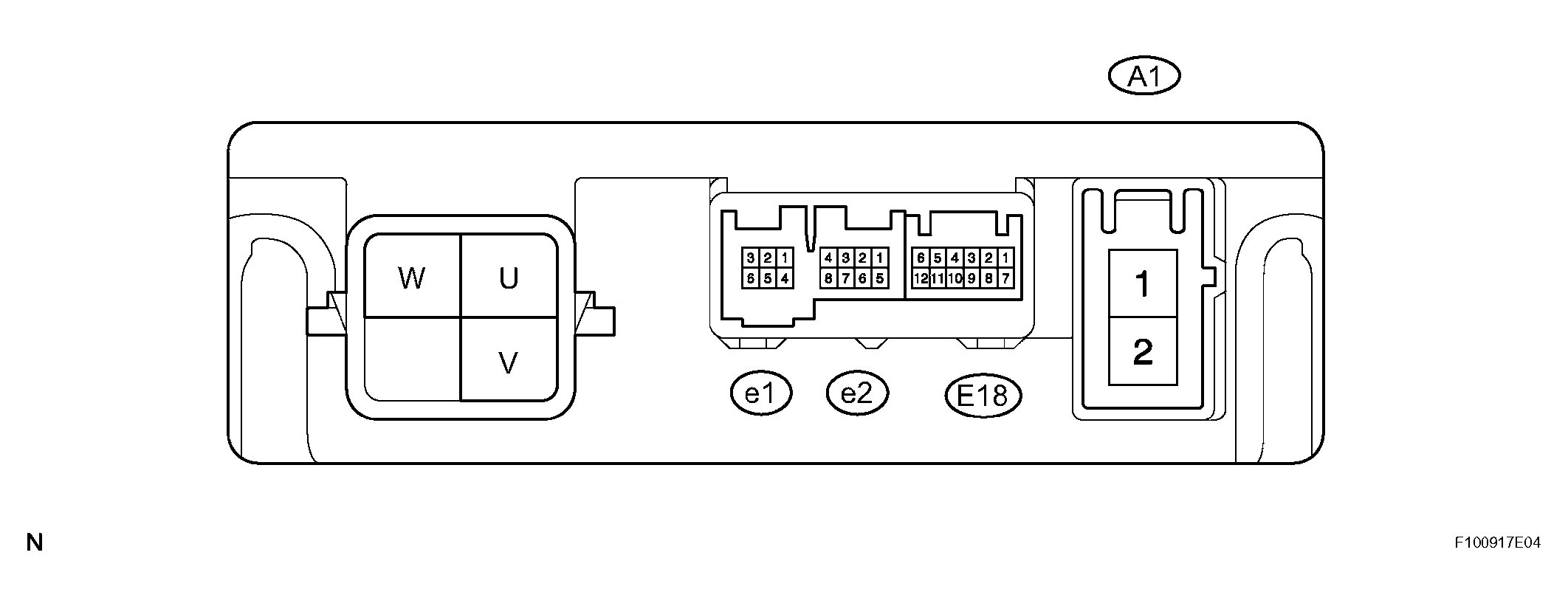

    Fig 1: Identifying Power Steering ECU Connector Terminals
    G04489736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Measurements cannot be performed on the C connector side of the power steering ECU.

    POWER STEERING ECU TERMINALS WIRING COLOR AND DESCRIPTION CHART

    Symbols Wiring Color Terminal Description
    U W U phase motor output
    V B V phase motor output
    W W-R W phase motor output
    1. Measure the voltage and resistance of the connectors.
      POWER STEERING ECU TERMINALS VOLTAGE AND RESISTANCE SPECIFICATION

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      PIG (A1-1) - PGND (A1-2) W-B - W-B Power source Always 10 to 14 V
      IG (E18-5) - PGND (A1-2) L - W-B IG power source Ignition switch ON 10 to 14 V
      TRQ1 (e1-6) - TRQG (e1-1) G - B Torque sensor signal Ignition switch ON
      Steering wheel not turned (without load)
      2.3 to 2.7 V
      Ignition switch ON
      Steering wheel turned to right with vehicle stopped
      2.5 to 4.04 V
      Ignition switch ON
      Steering wheel turned to left with vehicle stopped
      0.95 to 2.5 V
      TRQ2 (e1-2) - TRQG (e1-1) Y - B Torque sensor signal Ignition switch ON
      Steering wheel not turned (without load)
      2.3 to 2.7 V
      Ignition switch ON
      Steering wheel turned to right with vehicle stopped
      0.95 to 2.5 V
      Ignition switch ON
      Steering wheel turned to left with vehicle stopped
      2.5 to 4.04 V
      TRQF (e1-4) - TRQG (e1-1) W - B Torque sensor reference voltage Ignition switch ON 3.35 to 3.37 V
      TRQV (e1-3) - TRQG (e1-1) R - B Torque sensor voltage source Ignition switch ON 8.5 to 10.5 V
      TRQG (e1-1) - Body ground B - Body ground Torque sensor ground Always Below 1 Ω
      PGND (A1-2) - Body ground W-B - Body ground Power ground Always Below 1 Ω
      C1 (e2-1) - PGND (A1-2) R - W-B Resolver signal Ignition switch ON
      Steering wheel is turned
      0.68 to 4.42 V
      C2 (e2-5) - PGND (A1-2) L - W-B Resolver signal Ignition switch ON
      Steering wheel is turned
      0.68 to 4.42 V
      S1 (e2-2) - PGND (A1-2) B - W-B Resolver signal Ignition switch ON
      Steering wheel is turned
      0.68 to 4.42 V
      S2 (e2-6) - PGND (A1-2) Y - W-B Resolver signal Ignition switch ON
      Steering wheel is turned
      0.68 to 4.42 V
      R1 (e2-4) - PGND (A1-2) W - W-B Resolver excitation signal Ignition switch ON
      Steering wheel is turned
      2.9 to 5.1 V
      R2 (e2-8) - PGND (A1-2) G - W-B Resolver excitation signal Ignition switch ON
      Steering wheel is turned
      2.9 to 5.1 V
      CANH (E18-2) - CANL (E18-8) Y - W CAN communication line Ignition switch OFF 54 to 67 Ω

      If the result is not as specified, the ECU may have a malfunction.
