DTC Check / Clear

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC
    1. When using intelligent tester:
      1. Connect the intelligent tester (with CAN VIM) to the DLC3.
      2. Turn the ignition switch ON and press the intelligent tester main switch ON.
      3. Read the DTCs by following the prompts on the intelligent tester.

        HINT:

        Refer to the intelligent tester operator's manual for further details.

        Fig 1: Connecting Intelligent Tester To DLC3
        G04490696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. When not using intelligent tester:
      1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

        SST 09843-18040

      2. Turn the ignition switch ON.
        Fig 2: Identifying Connector Terminals 13 (TC) And 4 (CG) Of DLC3
        G04489740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Read and write down any DTCs indicated by the P/S warning light on the combination meter. Refer to the chart below for examples of a normal code and DTCs 21 and 22.

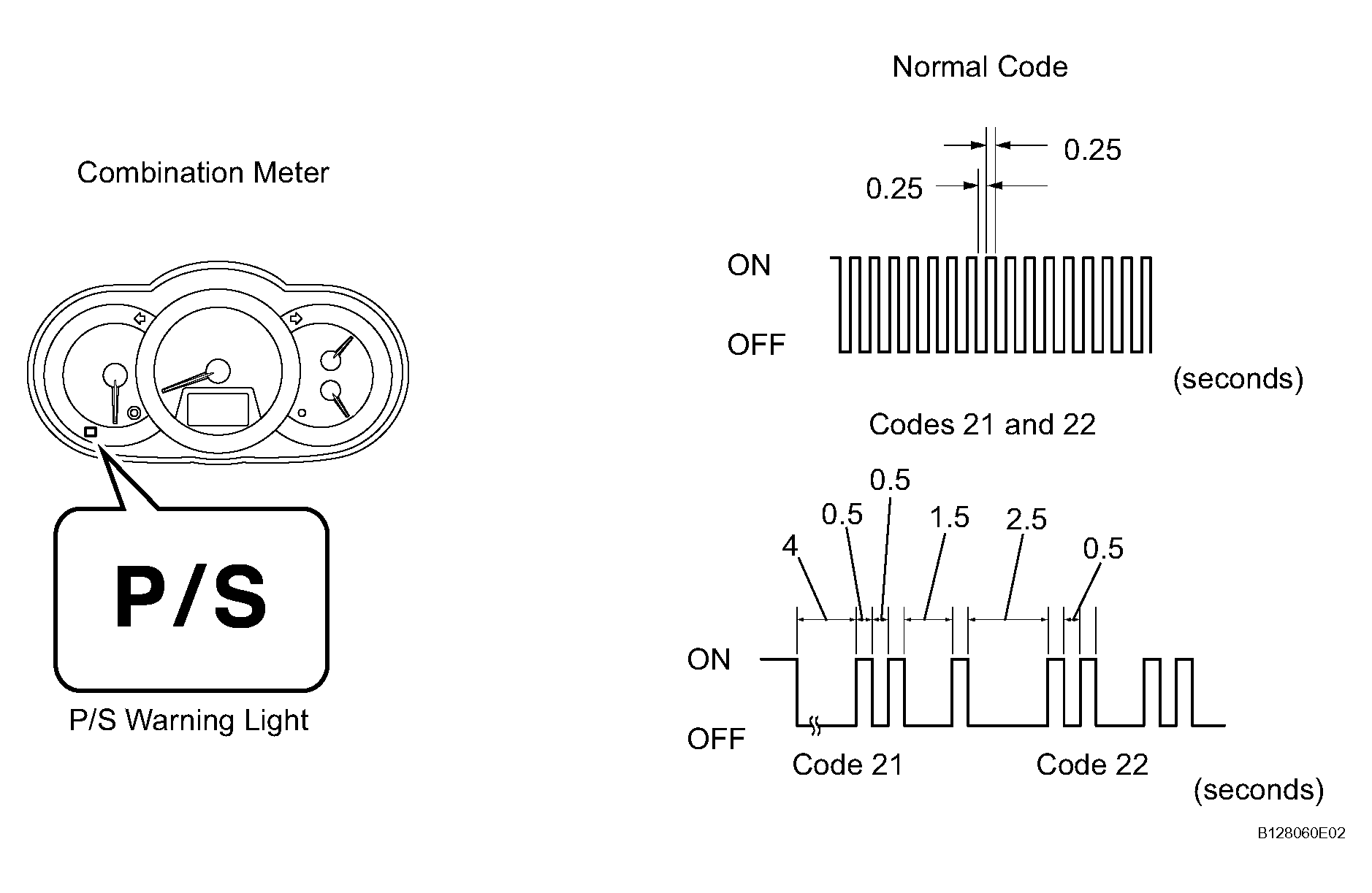

        Fig 3: Identifying P/S Warning Light Blinking Pattern
        G04489741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If the P/S warning light does not blink to display any DTCs set or the normal code, inspect the circuit shown in the table below.
          TROUBLE AREA REFERENCE

          Trouble Area Refer to
          EPS warning light circuit EPS WARNING LIGHT CIRCUIT
        • If two or more malfunctions are detected simultaneously, DTCs will be displayed in ascending numerical order.
      4. Refer to the DIAGNOSTIC TROUBLE CODE CHART  for DTC information.
  2. CLEAR DTC
    1. When using intelligent tester:
      1. Connect the intelligent tester (with CAN VIM) to the DLC3.
      2. Turn the ignition switch ON and press the intelligent tester main switch ON.
      3. Clear the DTCs by following the prompts on the intelligent tester.
      4. Turn the ignition switch OFF.
      5. Disconnect the intelligent tester from the DLC3.
    2. When not using intelligent tester:
      1. Using SST, connect terminals 12 (TS) and 4 (CG) of the DLC3.

        SST 09843-18040

      2. Turn the ignition switch ON.
      3. Disconnect the SST check wire from terminal 4 (CG) and reconnect it, and repeat this procedure 4 times or more within 8 seconds.
      4. Check that the P/S warning light blinking pattern is the normal code.
      5. Turn the ignition switch OFF.
      6. Remove SST from the DLC3.
        Fig 4: Identifying Connector Terminals 12 (TS) And 4 (CG) Of DLC3
        G04489742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
