Taillight Relay Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

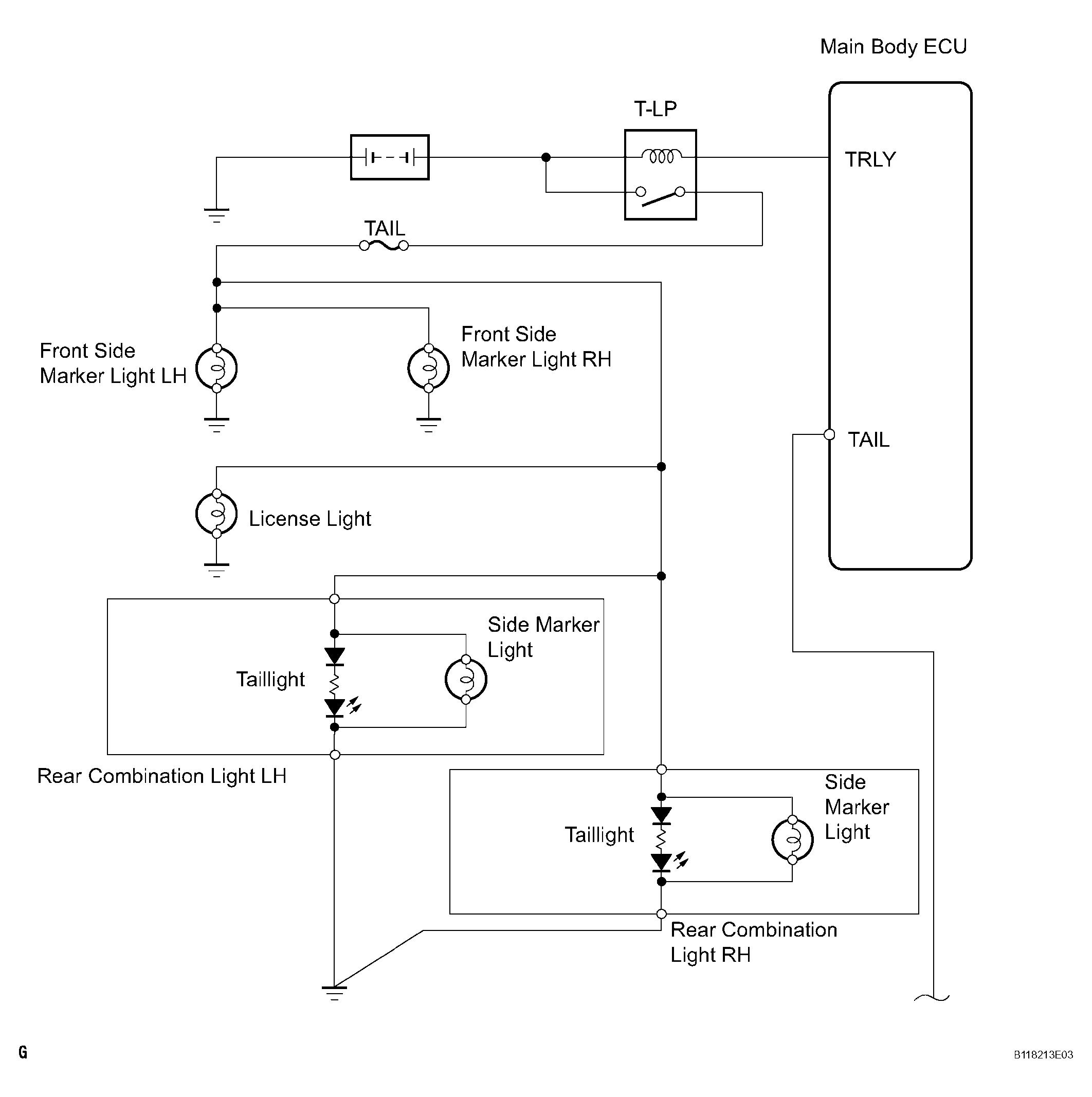

Fig 1: Taillight Relay - Wiring Diagram (1 Of 2)
G04490803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

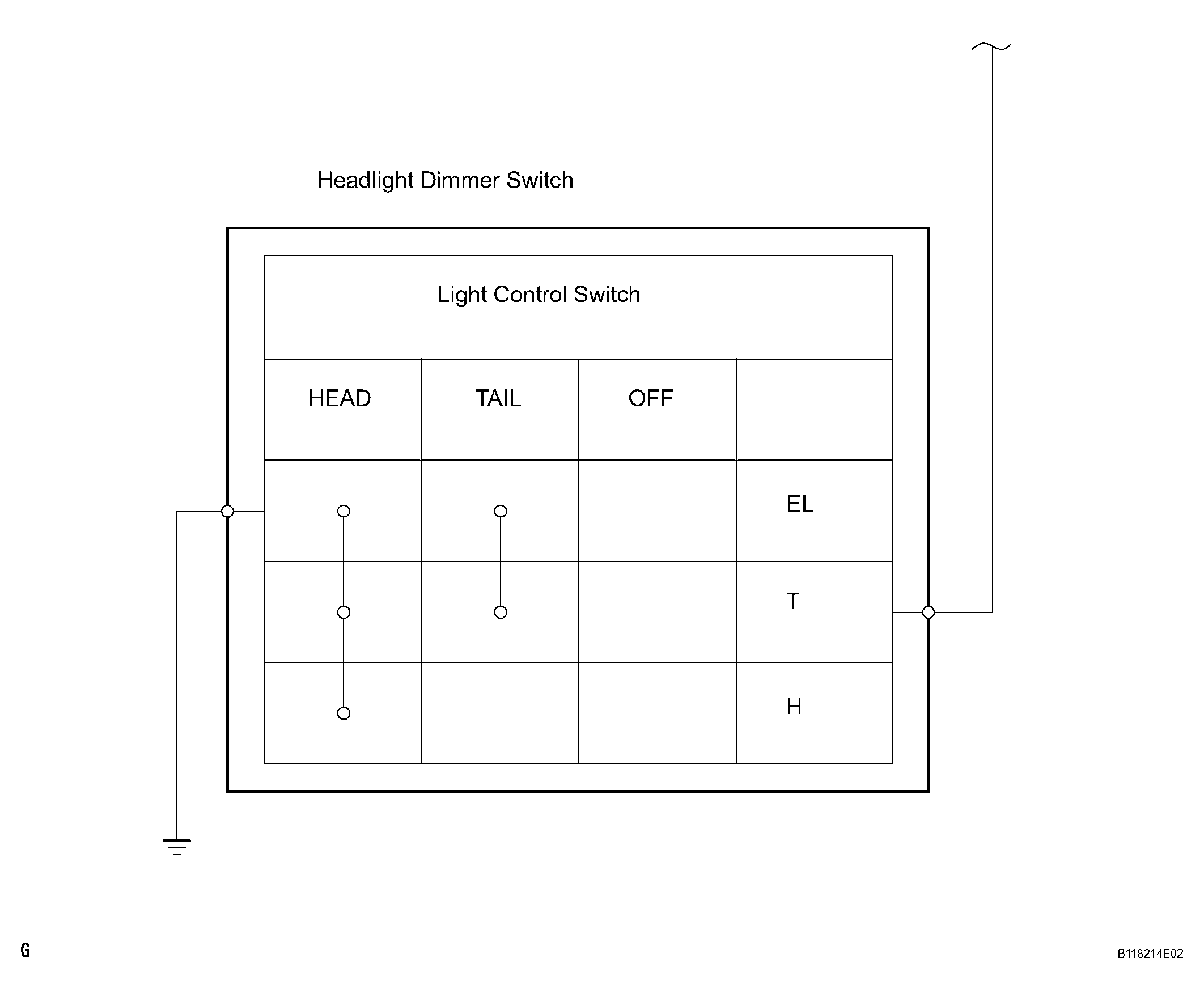

Fig 2: Taillight Relay - Wiring Diagram (2 Of 2)
G04490804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
