Parts Location

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

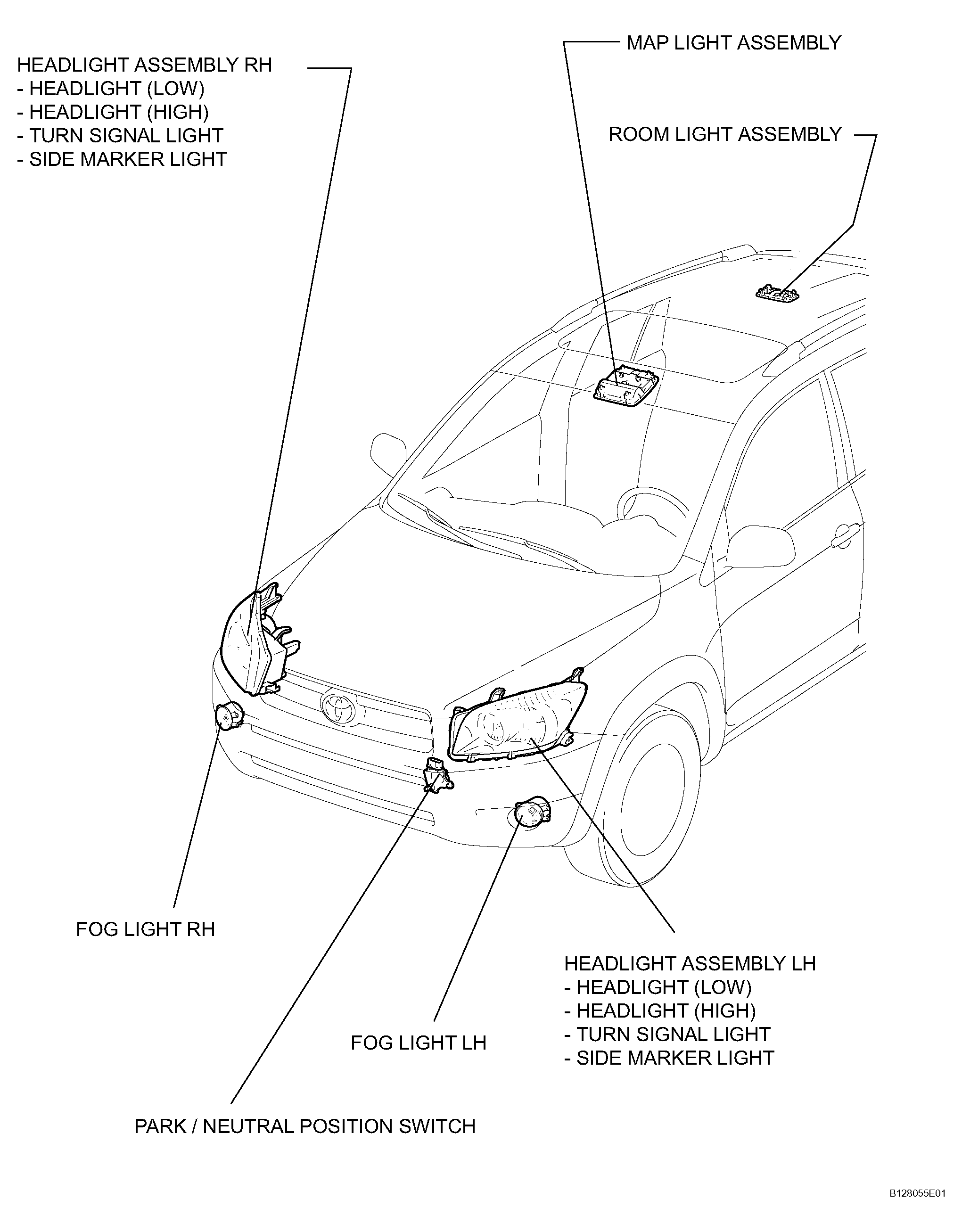

Fig 1: Locating Lighting System Parts (1 Of 4)
G04490718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

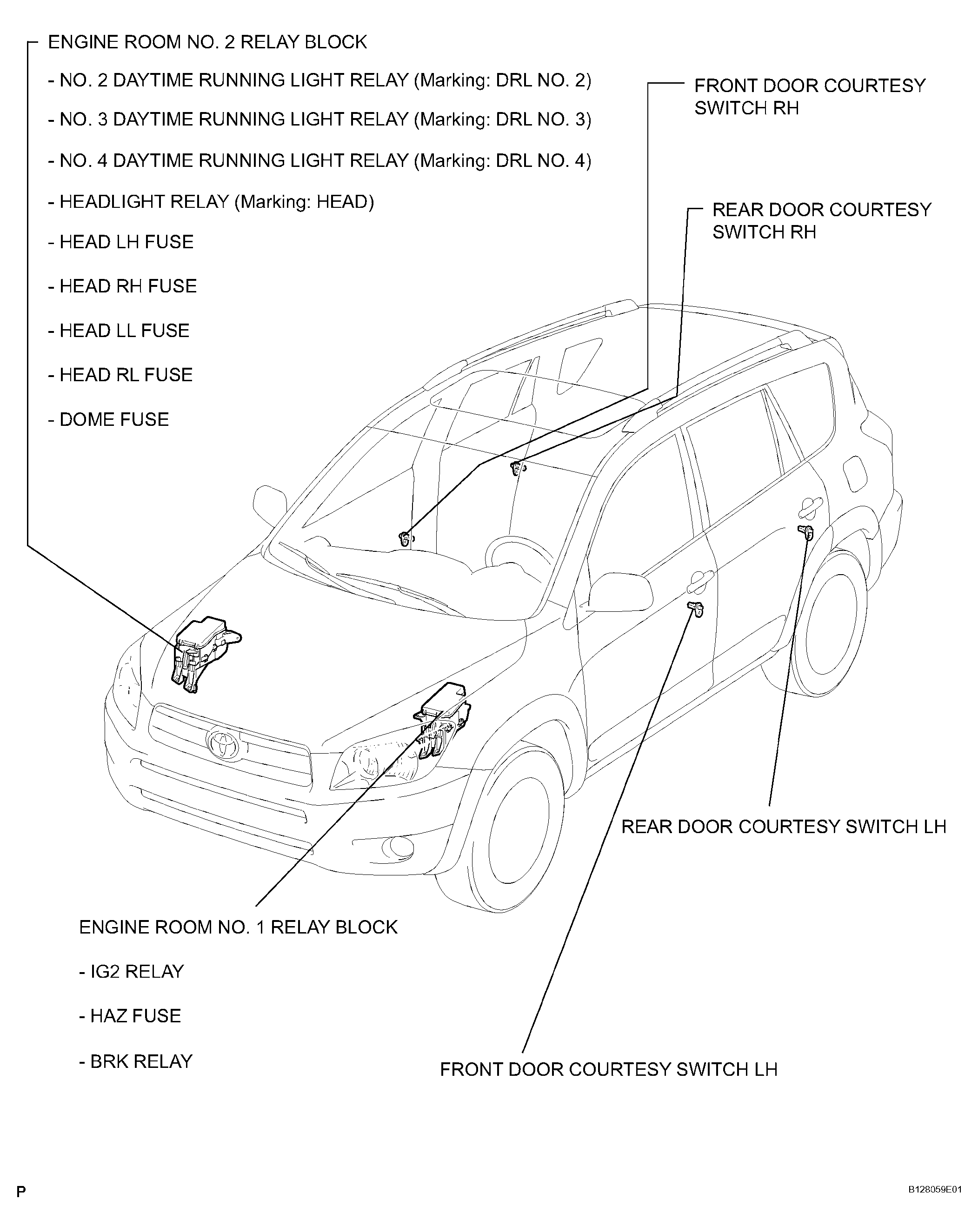

Fig 2: Locating Lighting System Parts (2 Of 4)
G04490719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

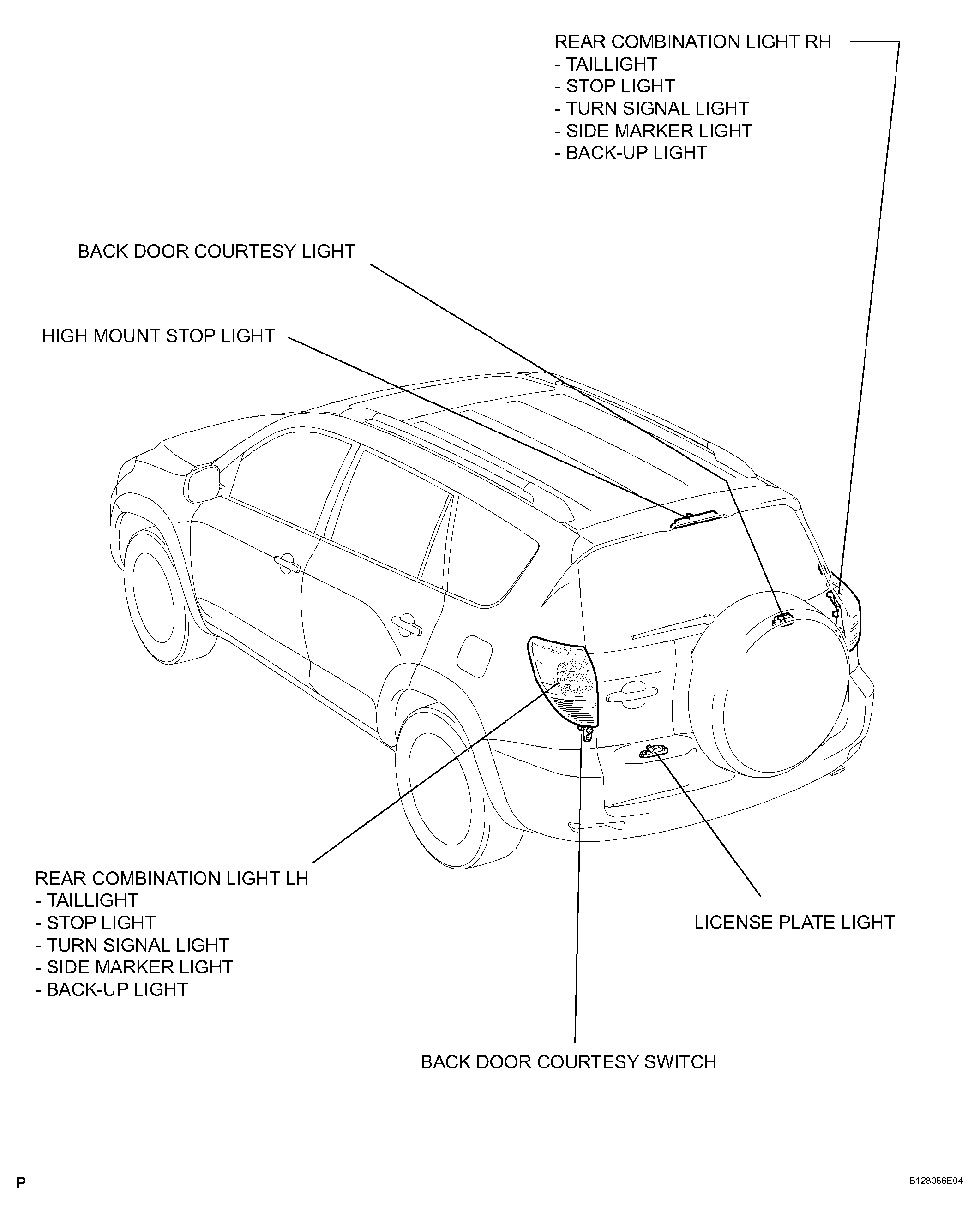

Fig 3: Locating Lighting System Parts (3 Of 4)
G04490720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

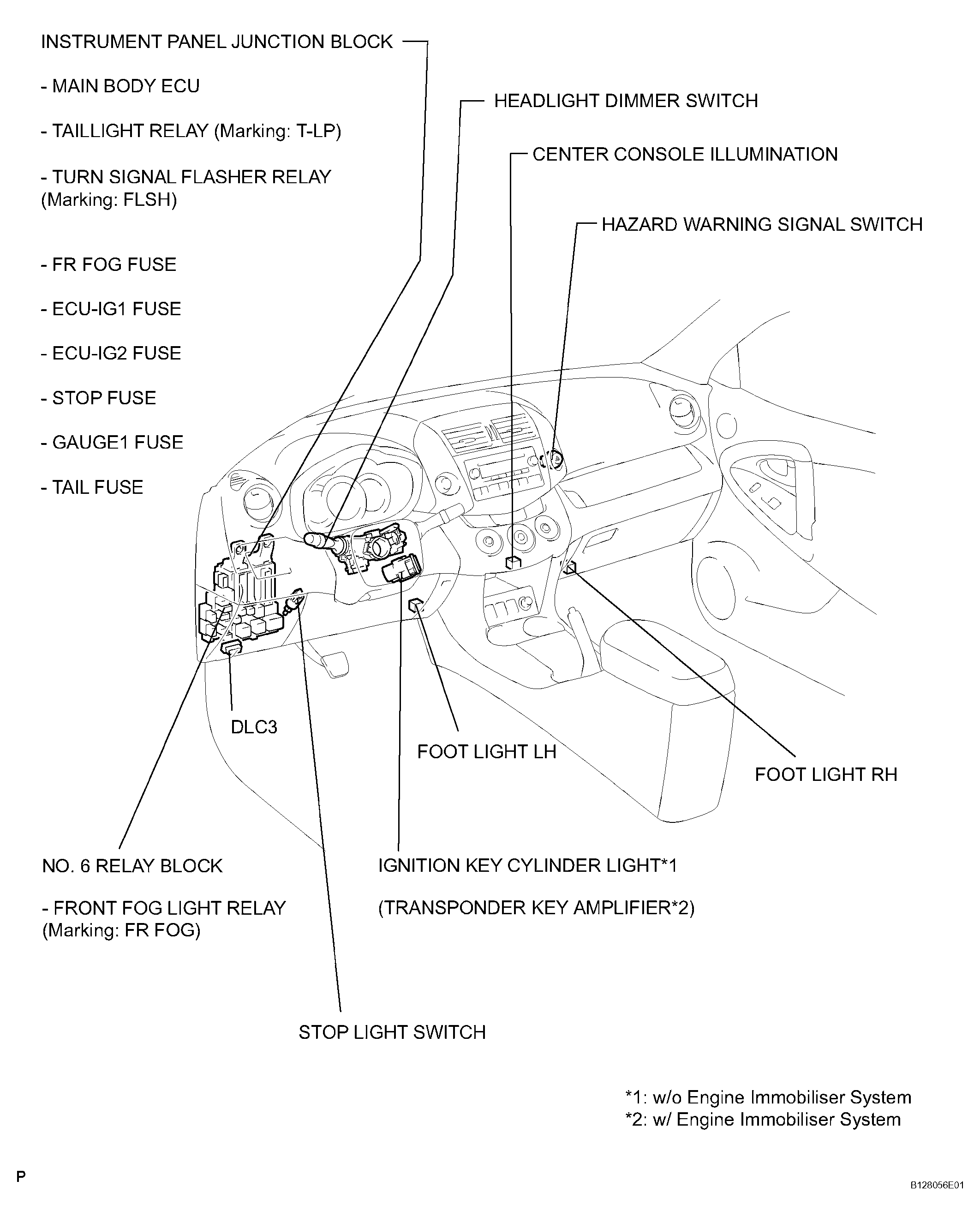

Fig 4: Locating Lighting System Parts (4 Of 4)
G04490721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
