Headlight (HI-BEAM) Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

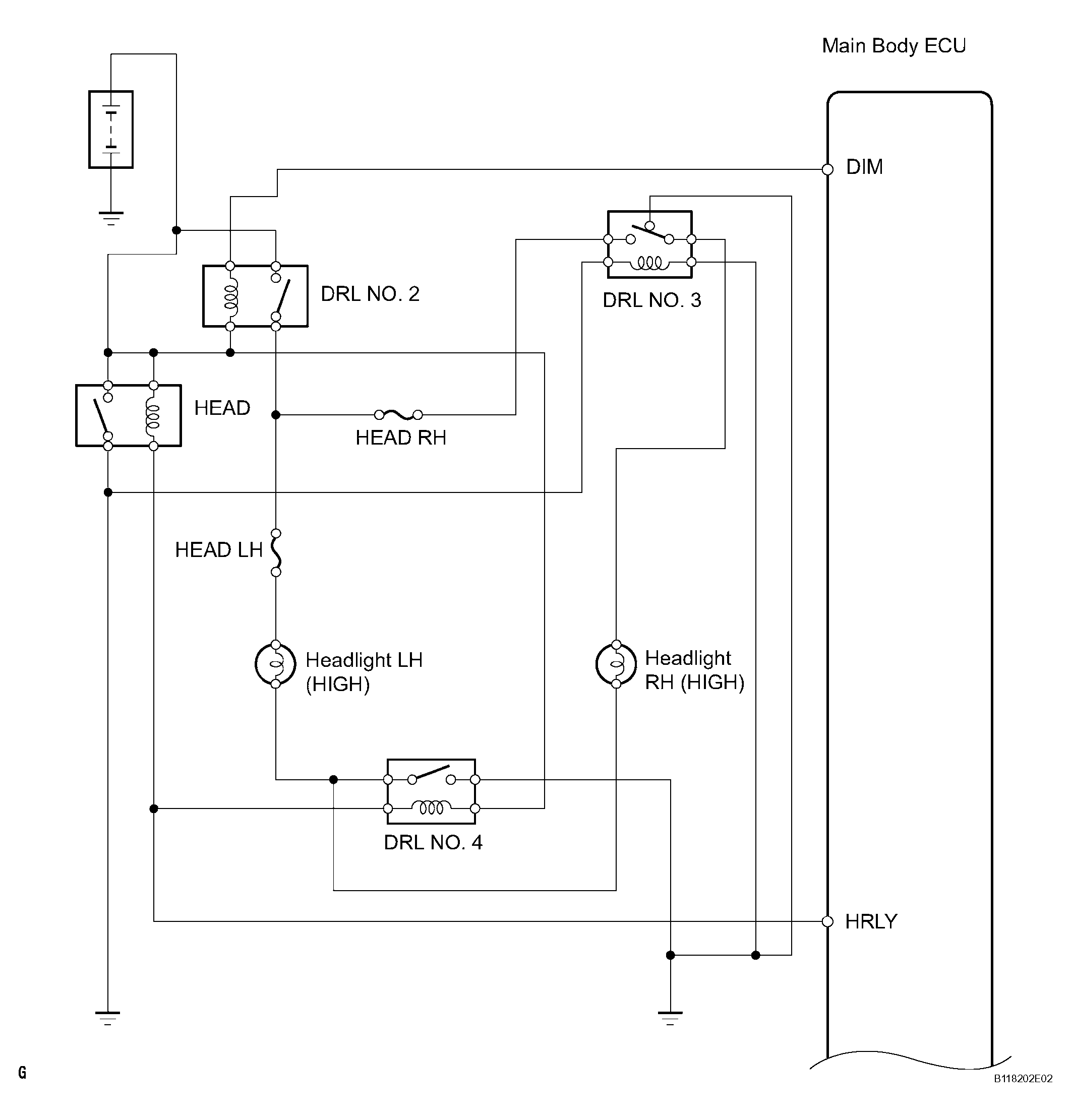

Fig 1: Headlight (HI-BEAM) - Wiring Diagram
G04490747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

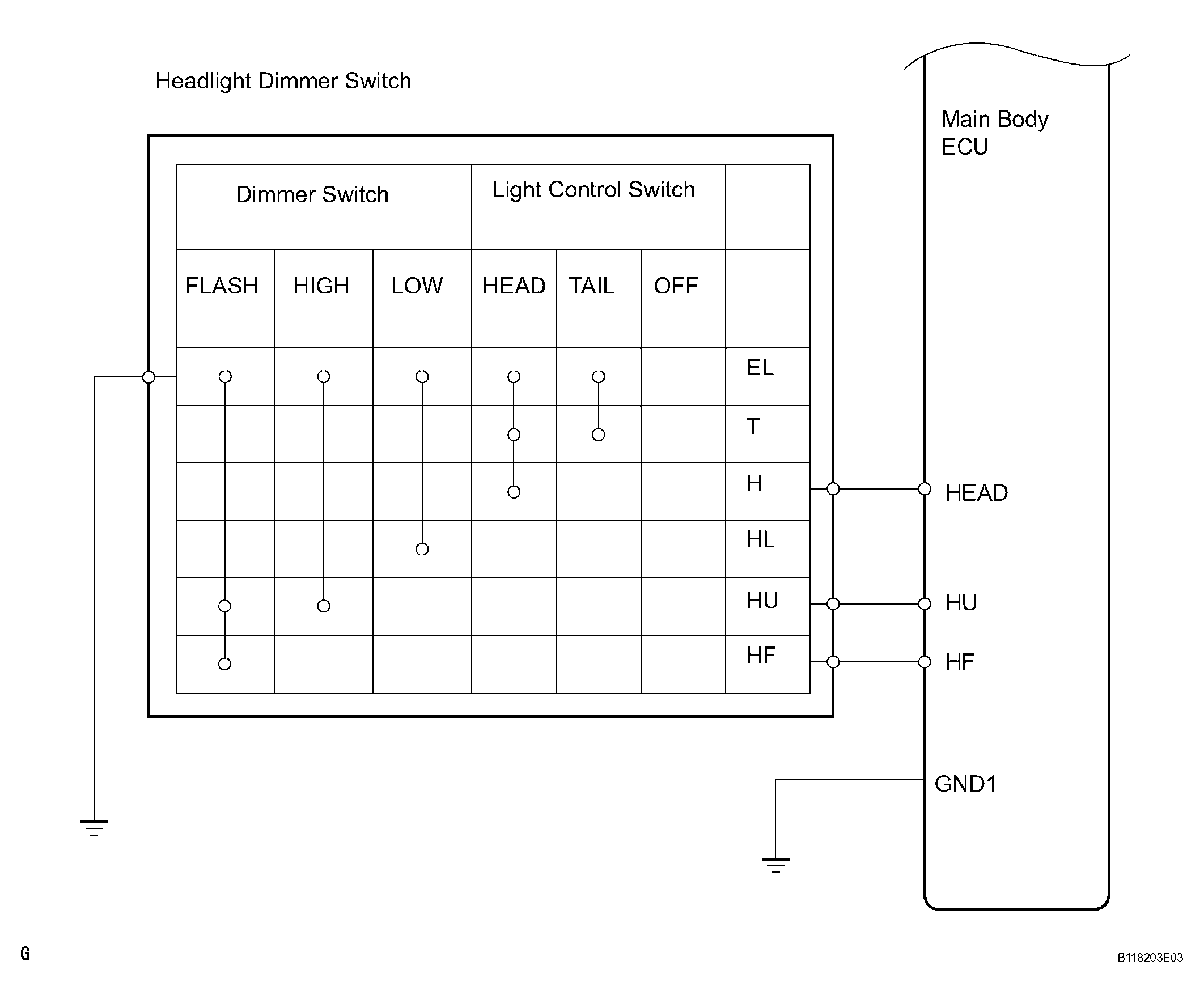

Fig 2: Headlight Dimmer Switch - Wiring Diagram
G04490748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
