On-Vehicle Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT DAY TIME RUNNING LIGHT RELAY

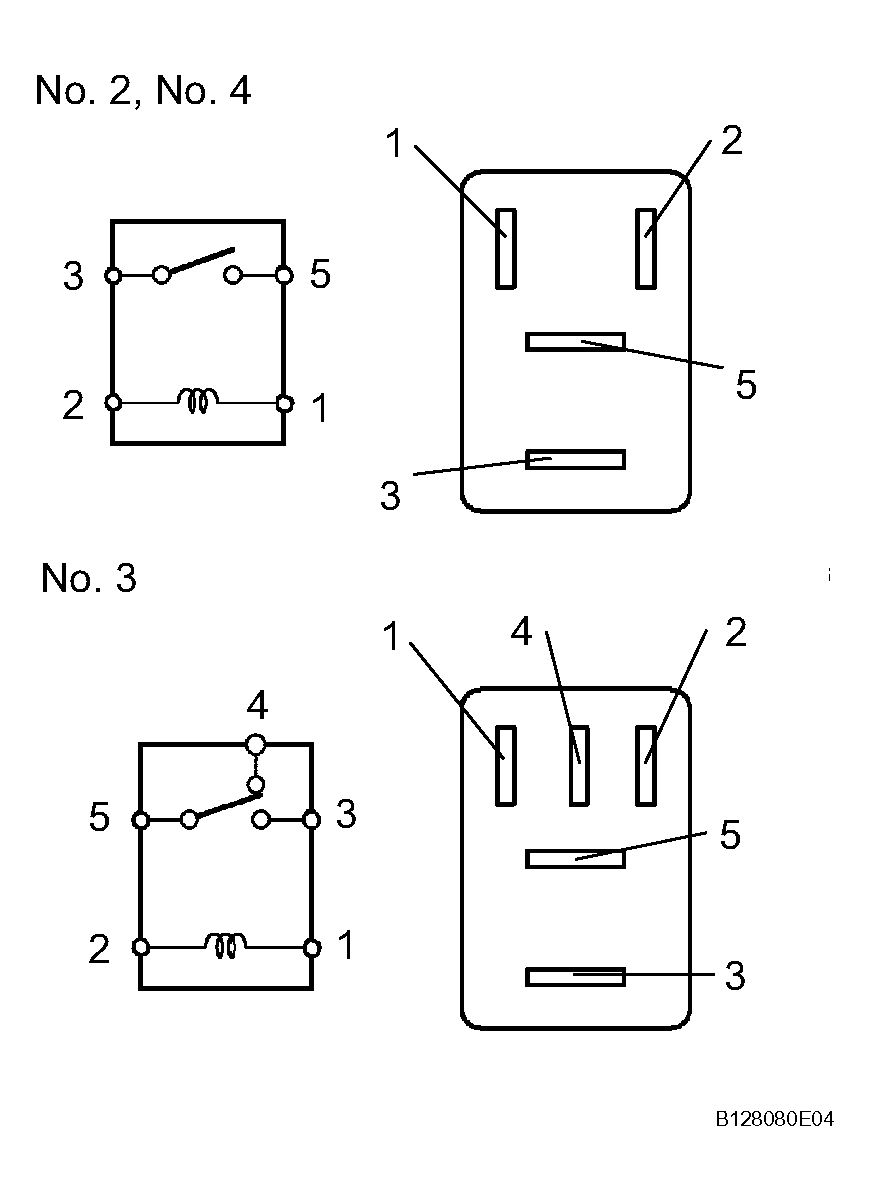

- Remove the No. 2 relay, No. 3 relay and No. 4 relay from the engine room No. 2 relay block (see Fig 1).
- Measure the resistance of the relays.
Standard resistance:
No. 2, No. 4
RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω
(Battery voltage applied to terminals 1 and 2)No. 3
RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition 4 - 5 Below 1 Ω 4 - 5 10 kΩ or higher
(Battery voltage applied to terminals 1 and 2)3 - 5 Below 1 Ω 3 - 5 10 kΩ or higher
(Battery voltage applied to terminals 1 and 2)Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the relay.
