Back Door Courtesy Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE BACK DOOR COURTESY LIGHT SWITCH ASSEMBLY
    1. Remove the bolt and switch.
    2. Disconnect the connector.

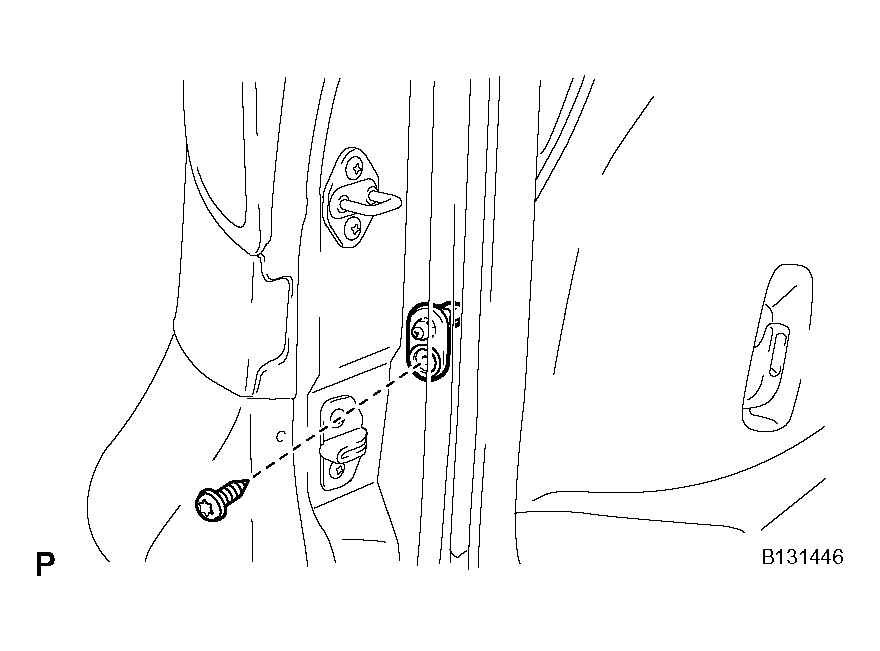

      Fig 1: Removing Back Door Courtesy Light Switch
      G04490916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
