Rear Door Lock: Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

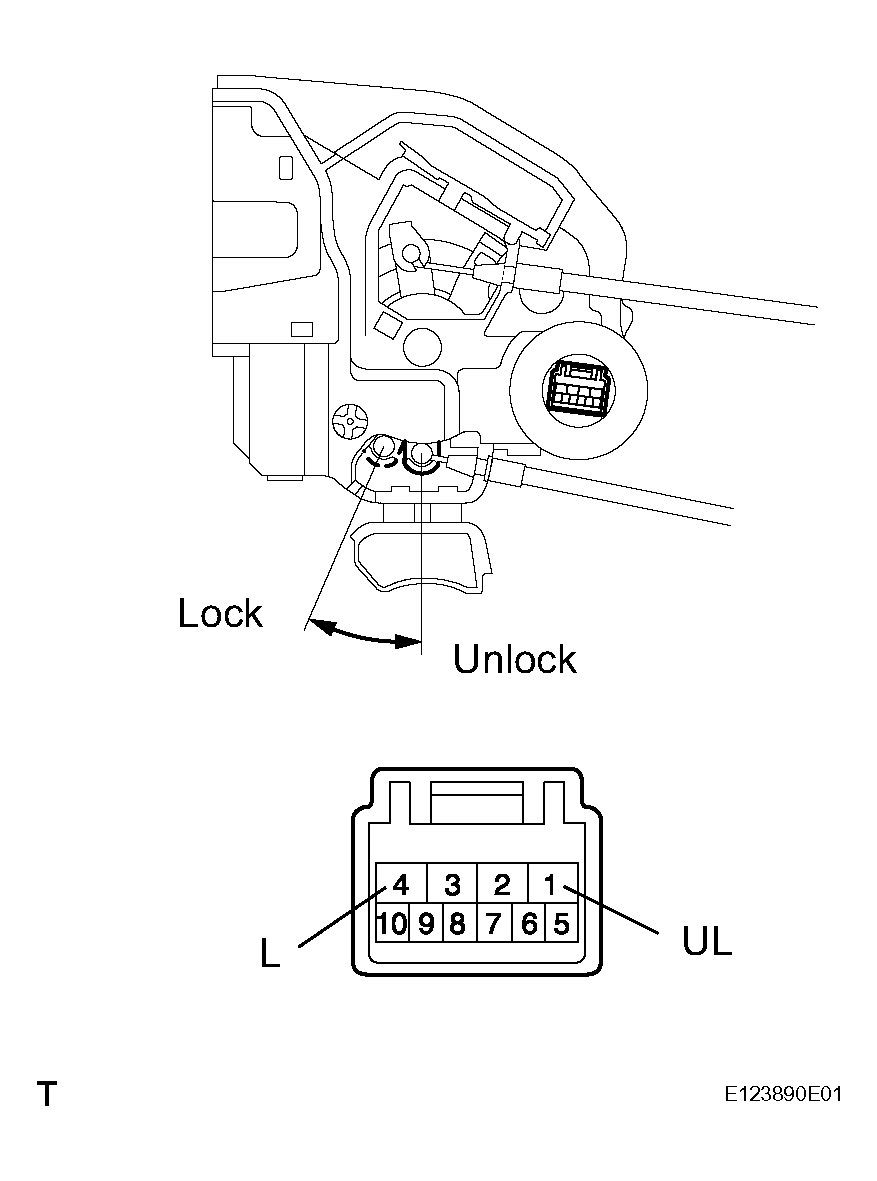

- INSPECT REAR DOOR WITH MOTOR LOCK ASSEMBLY LH
- Apply the battery voltage to the door lock motor and check the operation of the door lock motor.
OK
DOOR LOCK MOTOR OPERATION CONDITIONSMeasurement Condition Specified Condition Battery positive (+) --> 4 (L)
Battery negative (-) --> 1 (UL)Lock Battery positive (+) --> 1 (UL)
Battery negative (-) --> 4 (L)Unlock Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assembly.
- Apply the battery voltage to the door lock motor and check the operation of the door lock motor.

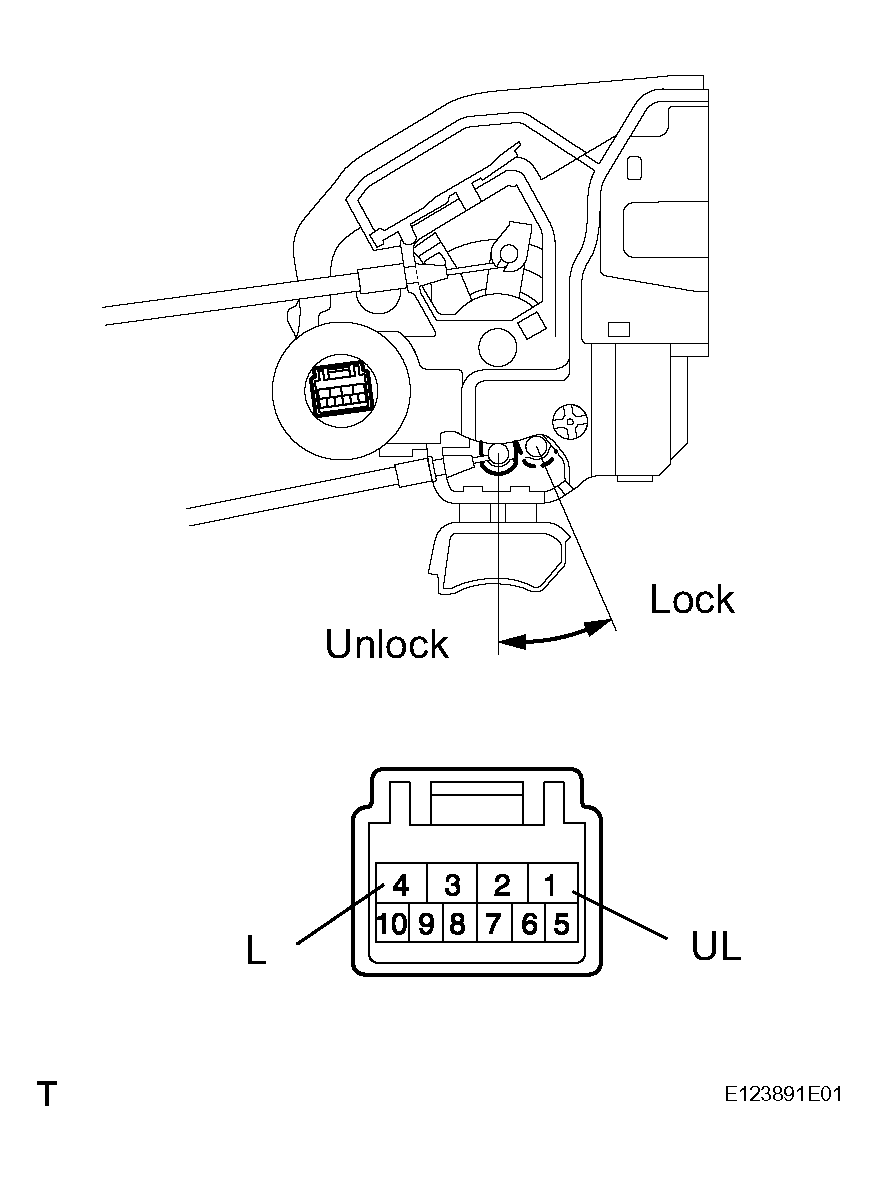

- INSPECT REAR DOOR WITH MOTOR LOCK ASSEMBLY RH
- Apply the battery voltage to the door lock motor and check the operation of the door lock motor. (See Fig 2).
OK
DOOR LOCK MOTOR OPERATION CONDITIONSMeasurement Condition Specified Condition Battery positive (+) --> 4 (L)
Battery negative (-) --> 1 (UL)Lock Battery positive (+) --> 1 (UL)
Battery negative (-) --> 4 (L)Unlock Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assembly.
- Apply the battery voltage to the door lock motor and check the operation of the door lock motor. (See Fig 2).
