Front Door Lock: Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

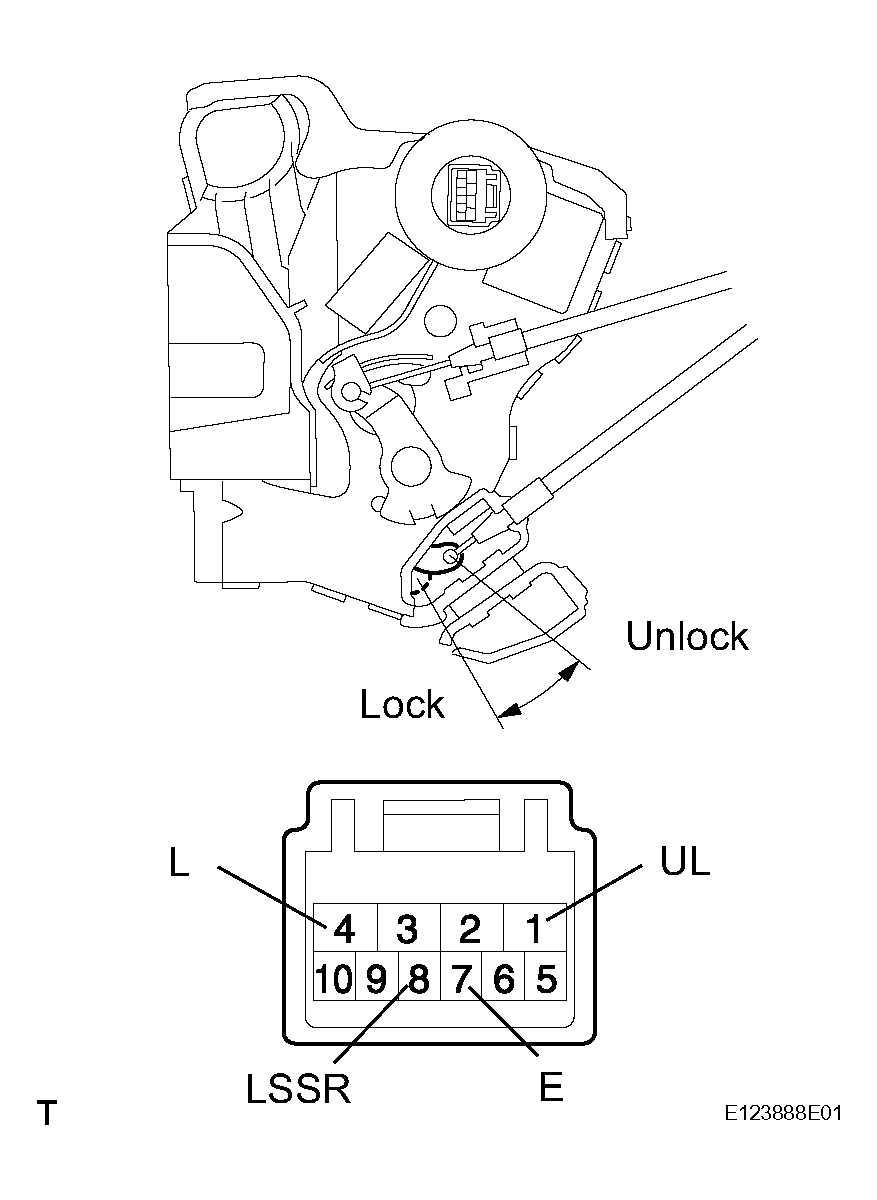

- INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH
- Apply the battery voltage to the motor terminals and check the operation of the door lock motor.
OK
DOOR LOCK MOTOR OPERATION CONDITIONSMeasurement Condition Specified Condition Battery positive (+) --> 4 (L)
Battery negative (-) --> 1 (UL)Lock Battery positive (+) --> 1 (UL)
Battery negative (-) --> 4 (L)Unlock If the result is not as specified, replace the door lock assembly.
- Measure the resistance of the door lock position switch.
Standard resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Switch Condition Specified Condition 8 (LSSR) - 7 (E) Lock 10 kΩ or higher 8 (LSSR) - 7 (E) Unlock Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assembly.

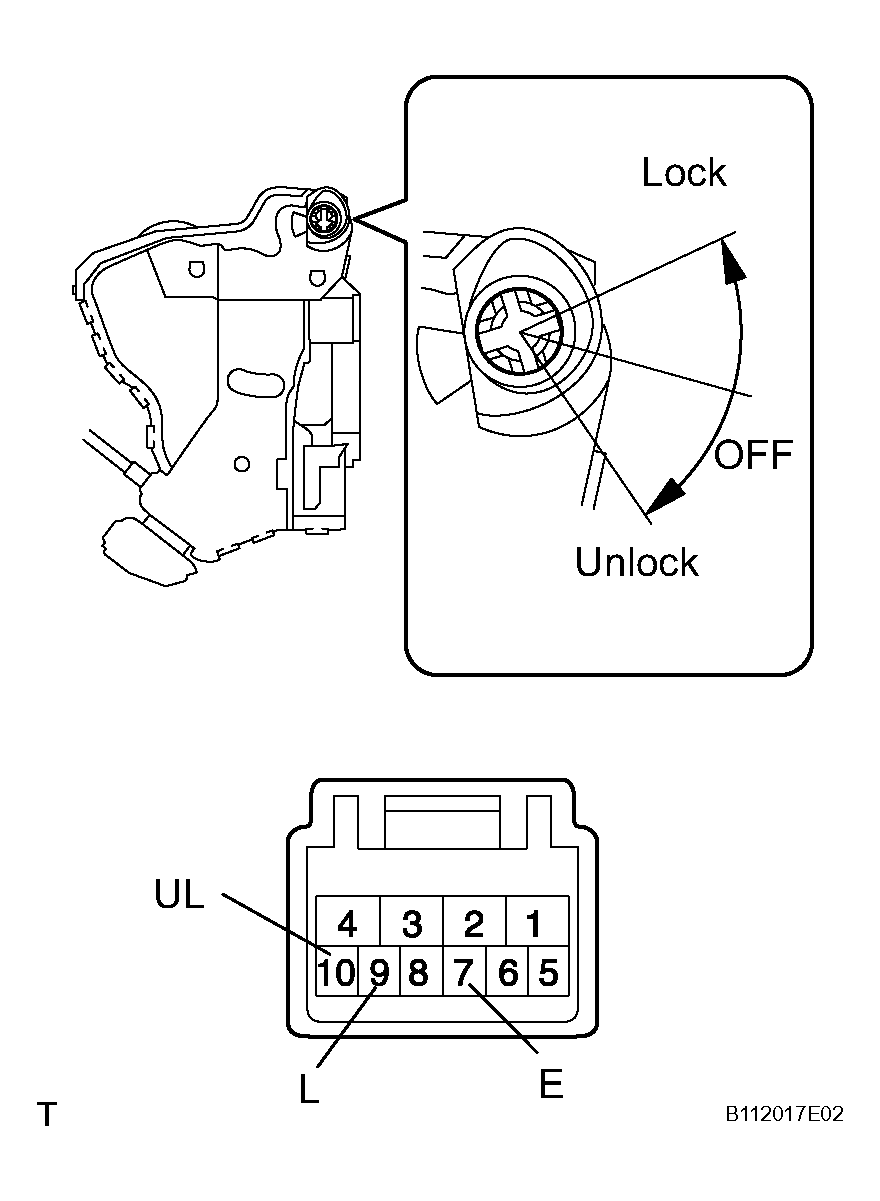

- Measure the resistance of the door key lock and unlock switch operation.
Standard resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Switch Condition Specified Condition 9 (L) - 7 (E) Lock Below 1 Ω 9 (L) - 7 (E) OFF 10 kΩ or higher 10 (UL) - 7 (E) Unlock Below 1 Ω 10 (UL) - 7 (E) OFF 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assembly.
- Apply the battery voltage to the motor terminals and check the operation of the door lock motor.

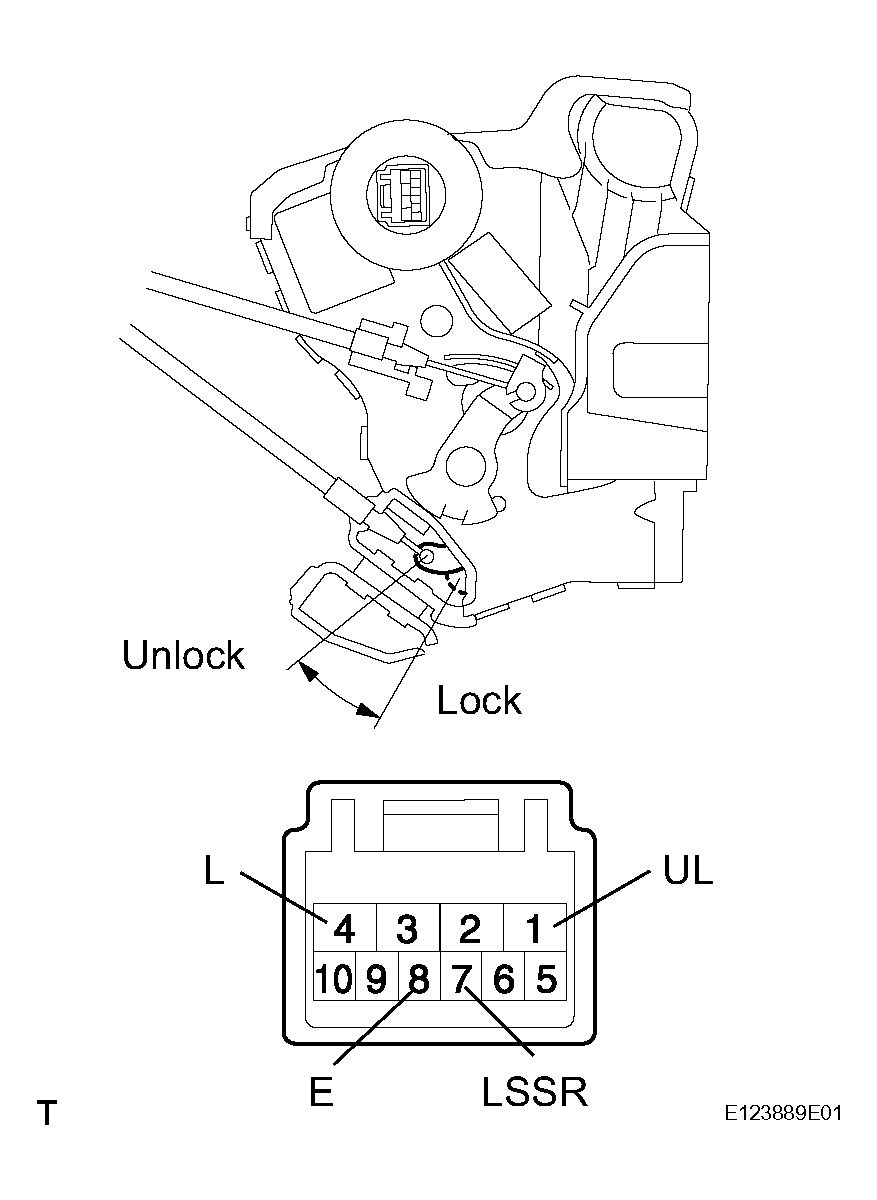

- INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH
- Apply the battery voltage to the door lock motor and check that the operation of the door lock motor. (See Fig 3).
OK
DOOR LOCK MOTOR OPERATION CONDITIONSMeasurement Condition Specified Condition Battery positive (+) --> 4 (L)
Battery negative (-) --> 1 (UL)Lock Battery positive (+) --> 1 (UL)
Battery negative (-) --> 4 (L)Unlock If the result is not as specified, replace the door lock assembly.
- Measure the resistance of the door lock position switch.
Standard resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Switch Condition Specified Condition 7 (LSSR) - 8 (E) Lock 10 kΩ or higher 7 (LSSR) - 8 (E) Unlock Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assembly.
- Apply the battery voltage to the door lock motor and check that the operation of the door lock motor. (See Fig 3).
