Door Control Receiver: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 9 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a clip remover, detach the 2 clips and remove the garnish.

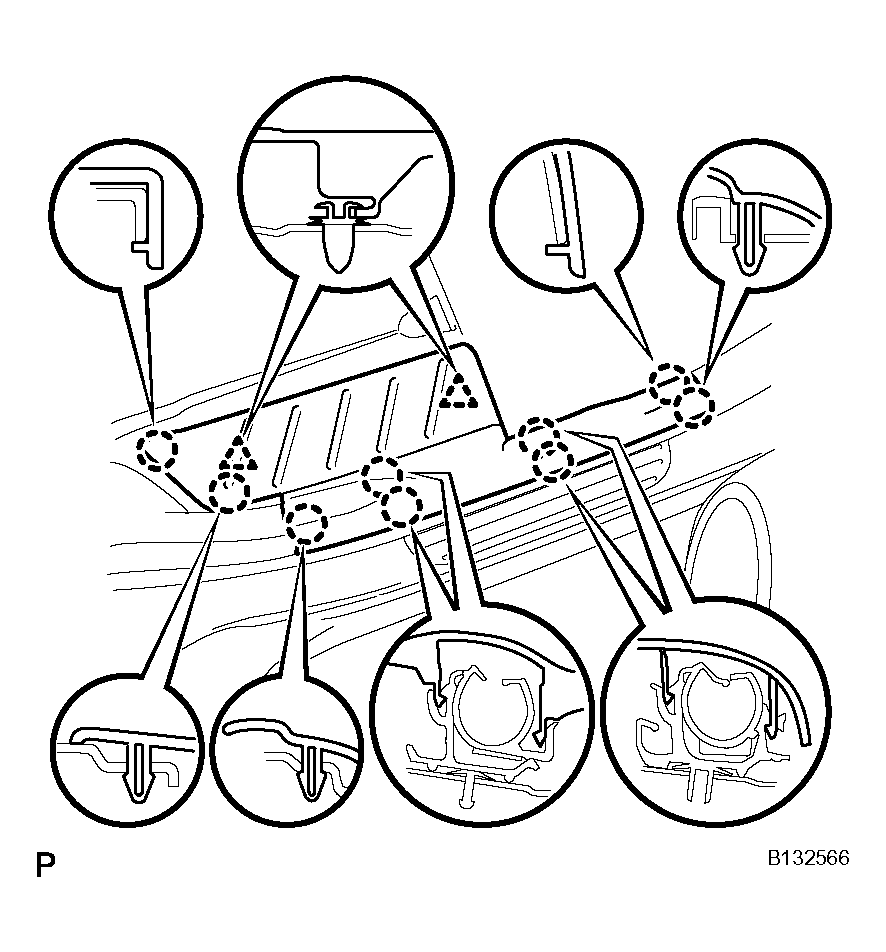

      Fig 1: Detaching Claws & Clips From Scuff Plate
      G04491105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  3. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  4. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  5. REMOVE NO. 2 SEAT HINGE COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  6. REMOVE NO. 2 SEAT HINGE COVER RH (w/Rear No. 2 Seat)

    HINT:

    Use the same procedures described for the LH side.

  7. REMOVE NO. 2 SEAT LEG COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  8. REMOVE NO. 2 SEAT LEG COVER RH (w/Rear No. 2 Seat)

    HINT:

    Use the same procedures described for the LH side.

  9. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  10. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat)

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE REAR FLOOR NO. 3 BOARD
  12. REMOVE REAR FLOOR NO. 2 BOARD
  13. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (See appropriate step(s) under  REMOVAL  )
  14. REMOVE REAR FLOOR FINISH PLATE (See appropriate step(s) under  REMOVAL  )
  15. REMOVE REAR DECK TRIM COVER RH (w/Rear No. 2 Seat)
    1. Remove the bolt.
    2. Using a screwdriver, detach the 4 claws and remove the trim cover.

      HINT:

      Tape the screwdriver tip before use.

  16. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  17. REMOVE TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
    1. Remove the bolt and tether anchor bracket.
      Fig 2: Removing Tether Anchor Bracket
      G04491106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  20. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)
    1. Using a clip remover, detach the 7 clips and remove the garnish.

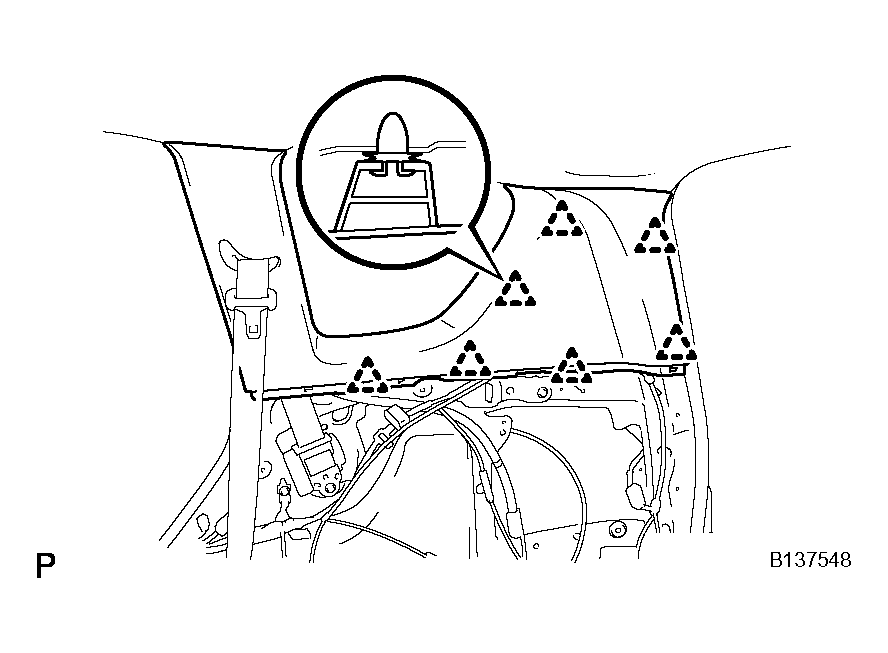

      Fig 3: Locating Clips For Removing Garnish
      G04491107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH (w/Rear No. 2 Seat)
    1. Disconnect the rear No. 2 seat outer belt's shoulder anchor.
      1. Using a screwdriver, detach the 2 claws and open the seat belt anchor cover.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the bolt and disconnect the shoulder anchor.

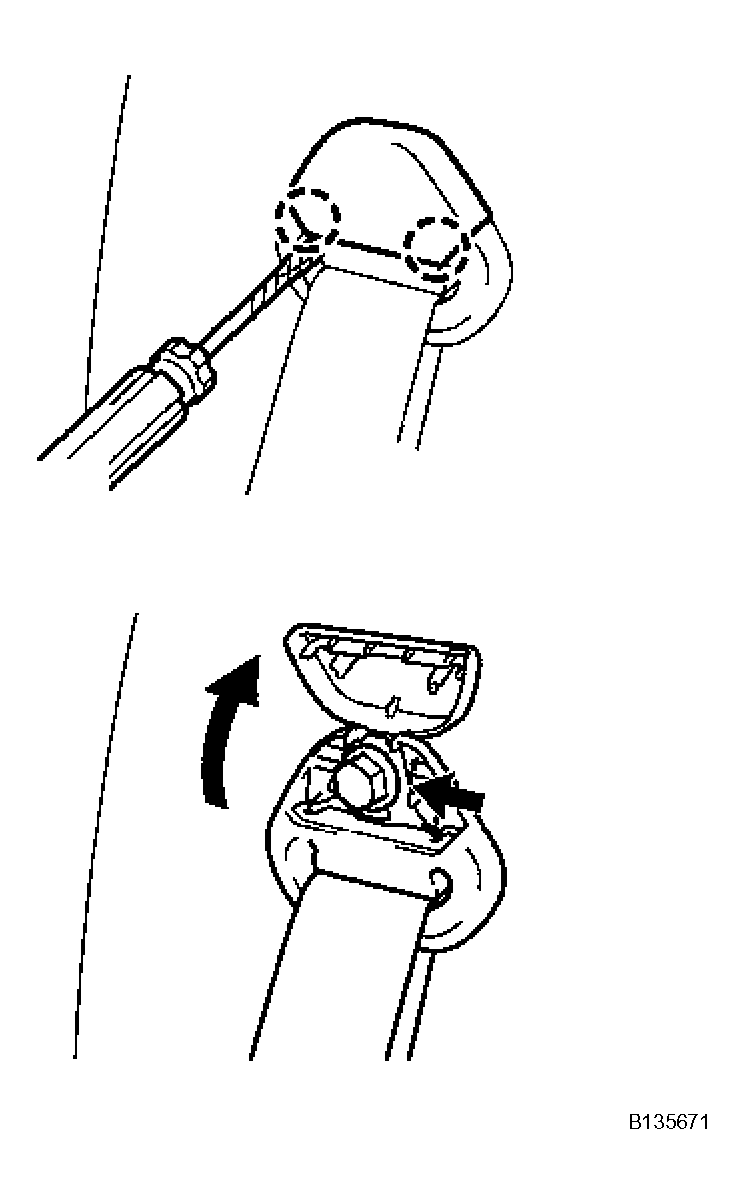

        Fig 4: Disconnecting Rear No. 2 Seat Outer Belt's Shoulder Anchor
        G04491108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, detach the 7 clips and remove the garnish.

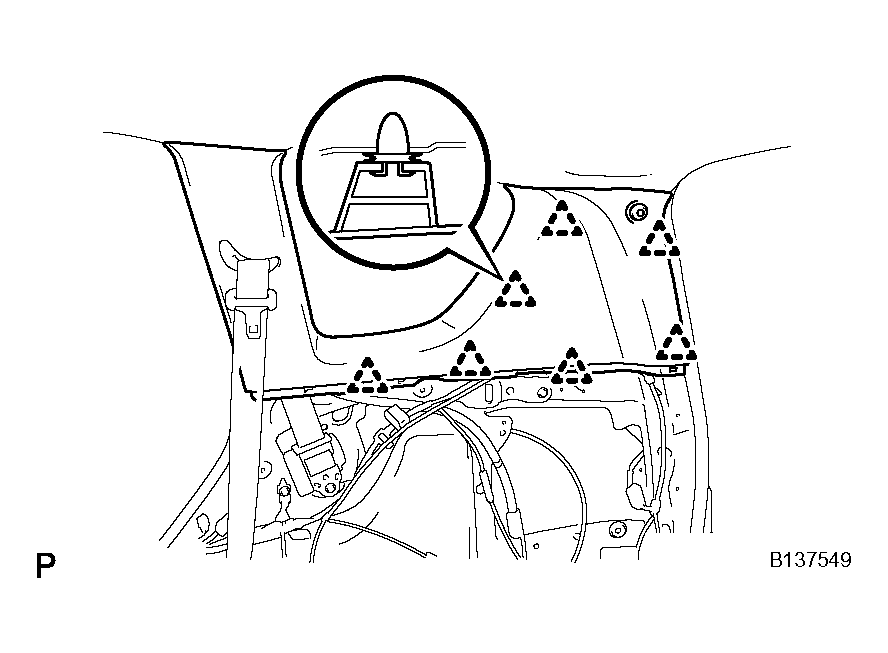

      Fig 5: Detaching Clips And Removing Inner Roof Side Garnish
      G04491109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE DOOR CONTROL RECEIVER
    1. Disconnect the receiver connector.
    2. Remove the bolt and receiver.
      Fig 6: Removing Door Control Receiver
      G04491110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
