Back Door Lock: Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT BACK DOOR WITH MOTOR LOCK ASSEMBLY

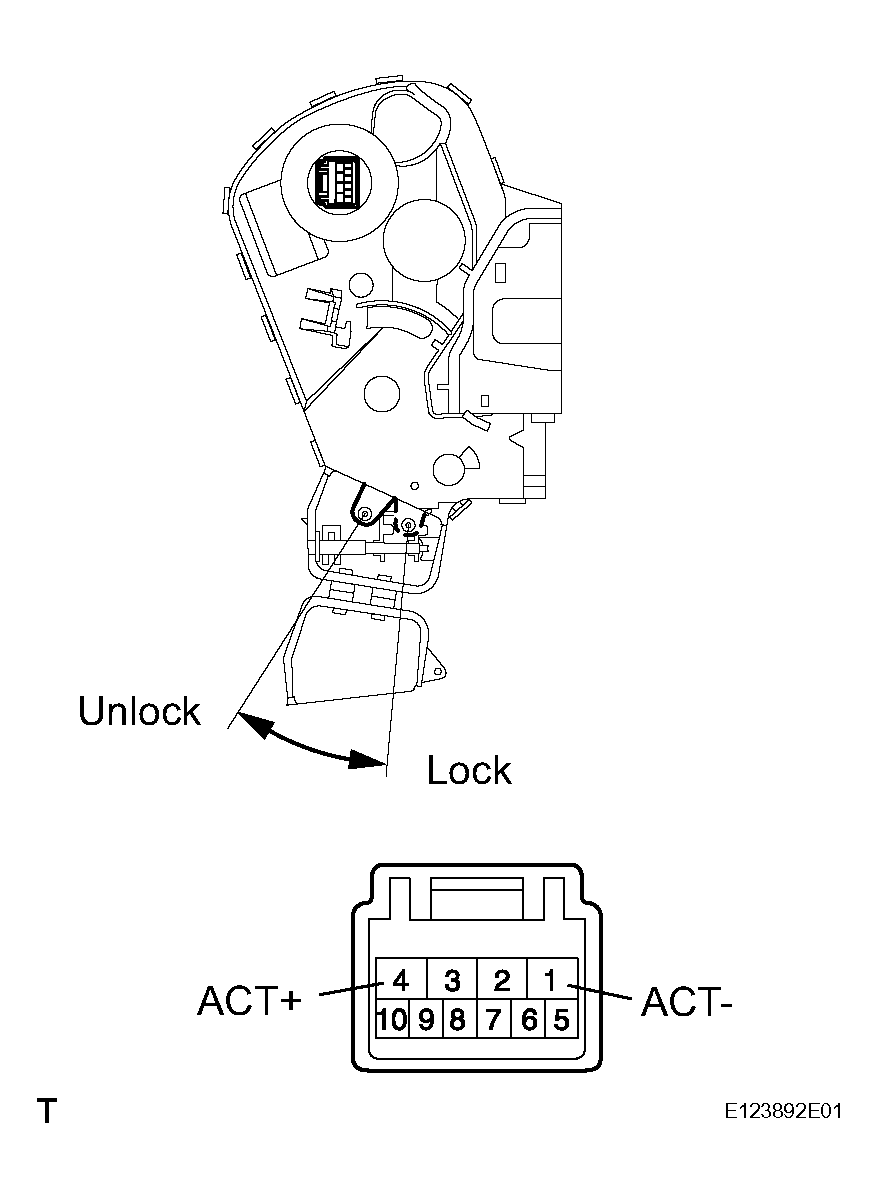

- Apply the battery voltage to the door lock motor and check the operation of the door lock motor.
OK
DOOR LOCK MOTOR OPERATION CONDITIONSMeasurement Condition Specified Condition Battery positive (+) --> 4 (ACT+)
Battery negative (-) --> 1 (ACT-)Lock Battery positive (+) --> 1 (ACT-)
Battery negative (-) --> 4 (ACT+)Unlock If the result is not as specified, replace the door lock assembly.
- Apply the battery voltage to the door lock motor and check the operation of the door lock motor.
