Radiator Grille: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When installing the ornament plate and emblem, heat the radiator grille, ornament plate and emblem using a heat light.

Standard heating temperature

STANDARD HEATING TEMPERATURE SPECIFICATION

Item	Specified Condition
Emblem base, emblem	20 to 30°C (68 to 86°F)

NOTE: Do not heat the emblem base and emblem excessively.

INSTALL RADIATOR GRILLE EMBLEM
1. Attach the 4 claws to install the radiator grille.

  Fig 1: Installing Radiator Grille
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Install the ornament plate with the 12 screws.

  Fig 2: Installing Ornament Plate With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

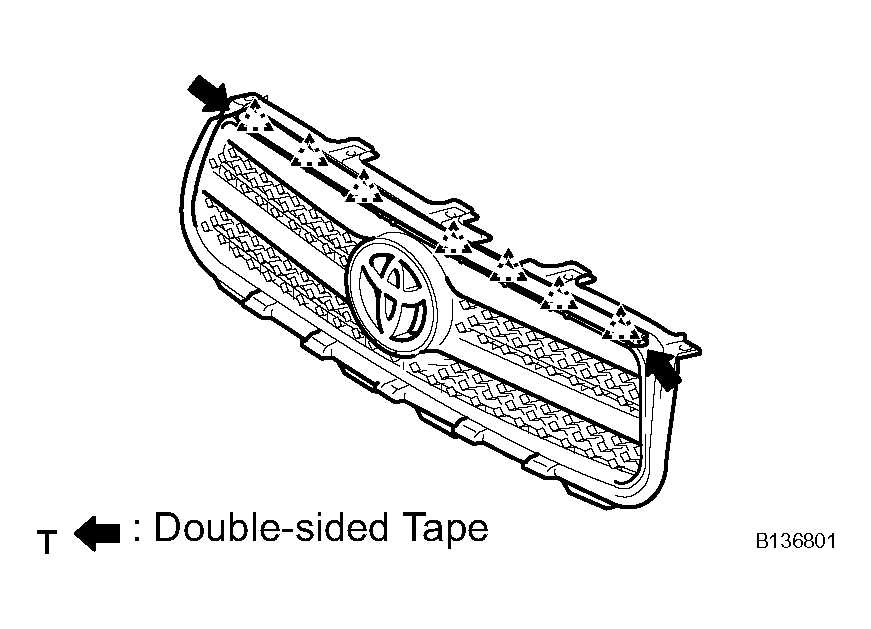

INSTALL HOOD TO RADIATOR GRILLE SEAL
1. Install the new double-side tape.
2. Attach the 7 clips and install the hood to radiator grille seal.

  Fig 3: Installing Hood To Radiator Grille Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
