RADIATOR GRILLE (for 2GR-FE): Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When installing the ornament plate and emblem, heat the radiator grille, ornament plate and emblem using a heat light.

Standard heating temperature

STANDARD HEATING TEMPERATURE SPECIFICATION

Item	Specified Condition
Radiator grille, Ornament plate, emblem	20 to 30°C (68 to 86°F)

NOTE: Do not heat the radiator grille, ornament plate and emblem excessively.

INSTALL RADIATOR GRILLE EMBLEM
1. Attach the 3 claws to install the emblem.

  Fig 1: Installing Radiator Grille Emblem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Install the ornament plate with the 12 screws.

  Fig 2: Installing Radiator Grille Ornament Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RADIATOR GRILLE EMBLEM
1. Attach the claw to install the emblem.
2. Install the 2 screws.

  Fig 3: Installing No. 2 Radiator Grille Emblem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD TO RADIATOR GRILLE SEAL
1. Install new double-sided tape.
2. Attach the 7 clips and install the hood to radiator grille seal.

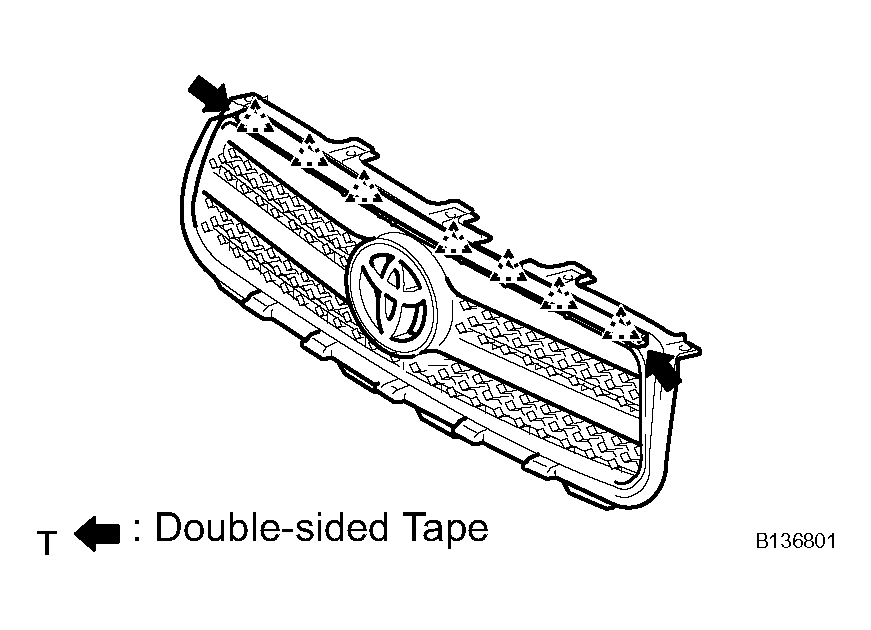

  Fig 4: Installing Hood To Radiator Grille Seal (Double-Sided Tape)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
