RADIATOR GRILLE (for 2GR-FE): Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When removing the ornament plate and emblem, heat the radiator grille, ornament plate and emblem using a heat light.

Standard heating temperature

STANDARD HEATING TEMPERATURE SPECIFICATION

Item	Specified Condition
Radiator grille, ornament plate, emblem	20 to 30°C (68 to 86°F)

NOTE: Do not heat the radiator grille, ornament plate and emblem excessively.

REMOVE HOOD TO RADIATOR GRILLE SEAL
1. Remove the double-sided tape.
2. Detach the 7 clips and remove the hood to radiator grille seal.

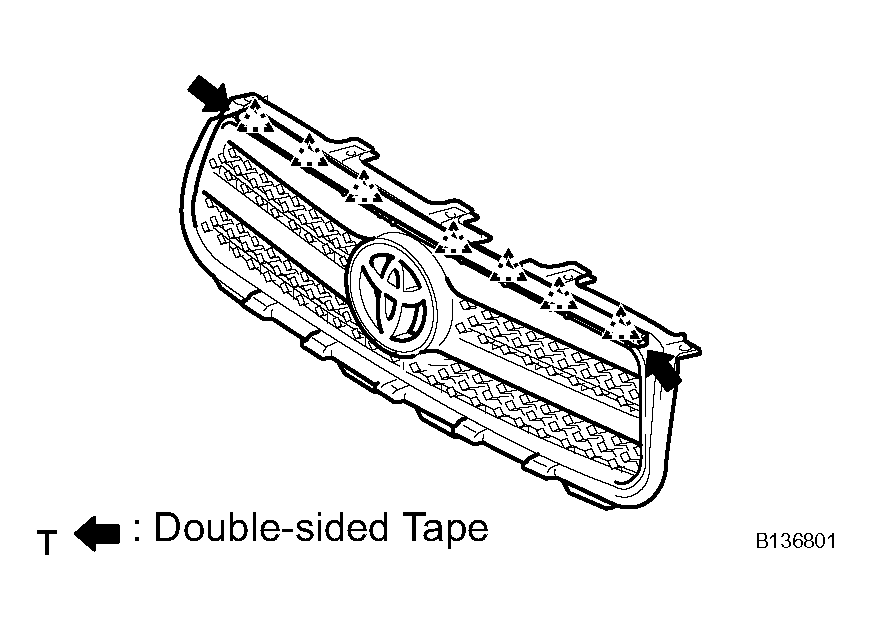

  Fig 1: Removing Clips And Hood To Radiator Grille Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIATOR GRILLE EMBLEM
1. Remove the 2 screws.
2. Detach the claw and remove the emblem.

  Fig 2: Removing Claw And Emblem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Remove the 12 screws and ornament plate.

  Fig 3: Removing Screws And Ornament Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE EMBLEM
1. Using a screwdriver, detach the 3 claws and remove the emblem from the radiator grille.
  HINT:

  Tape the screwdriver tip before use.
  NOTE:
  - If reusing the emblem, take care not to damage the emblem.
  - Be careful not to damage the emblem base.

    Fig 4: Removing Claws And Emblem From Radiator Grille
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
