Rear No. 1 Suspension Arm: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR WHEEL
REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
1. Support the No. 2 suspension arm LH.

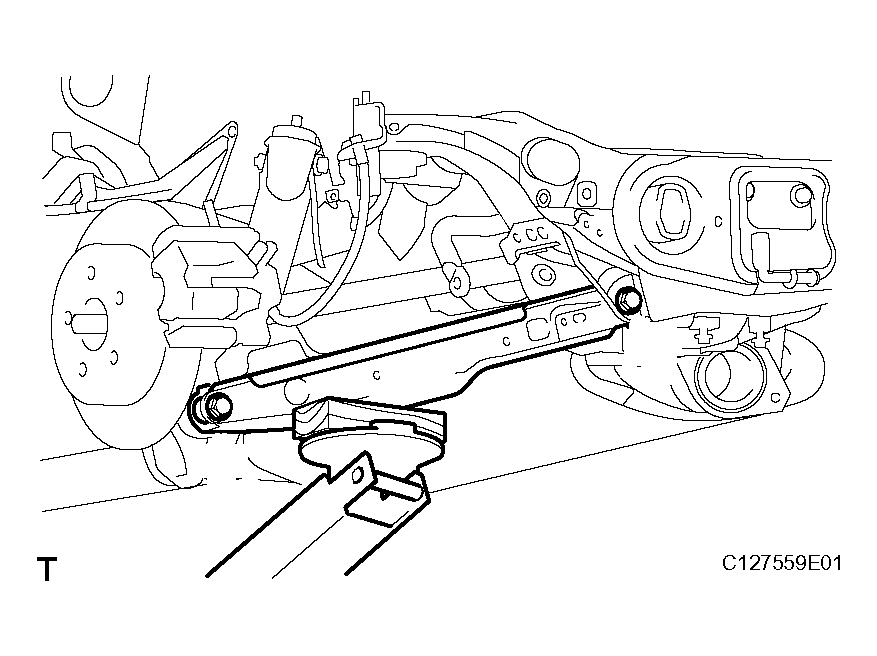

  Fig 1: Supporting No. 2 Suspension Arm LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and 2 nuts from the suspension member and axle carrier.
  HINT:

  While fixing the nut in place, loosen and remove the bolt from the suspension member side.

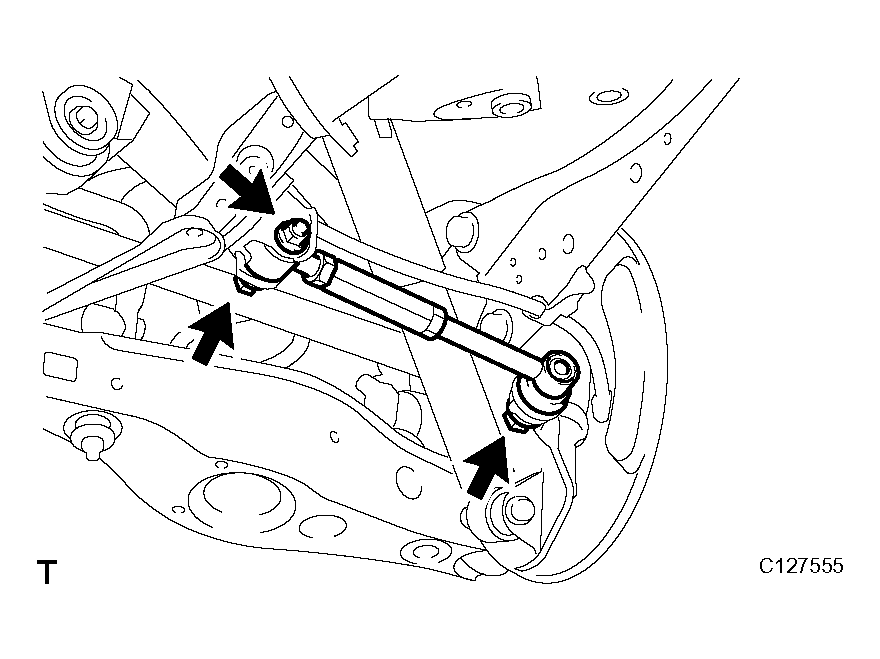

  Fig 2: Removing Bolt And 2 Nuts From Suspension Member And Axle Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, disconnect the suspension arm from the axle carrier.
  SST 09610-20012

  NOTE: Do not damage the dust cover.
