Rear No. 1 Suspension Arm: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
1. Temporarily install the suspension arm with the bolt and 2 nuts to the suspension member and axle carrier.

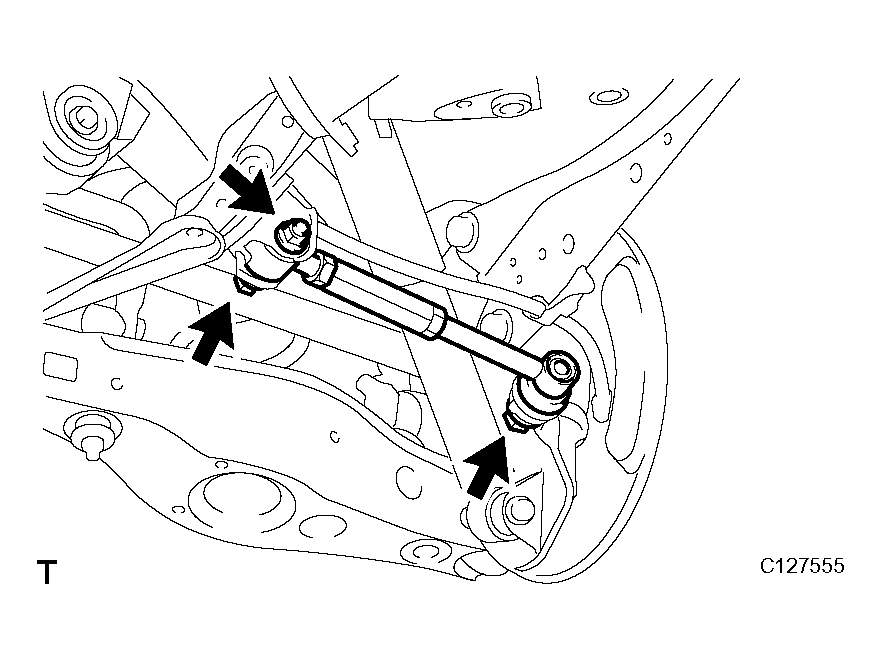

  Fig 1: Tightening Rear No. 1 Suspension Arm Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
1. Install the wheel.
  Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
1. Install the nut and 2 bolts.
  Torque:

  90 N*m (918 kgf*cm, 66 ft.*lbf) for bolt

  100 N*m (1,020 kgf*cm, 74 ft.*lbf) for nut

  NOTE: For the nut on the rear suspension member side, do not tighten the nut.
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
1. Inspect and adjust the rear wheel alignment (see REAR WHEEL ALIGNMENT ).
