Front Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE FRONT STABILIZER LINK ASSEMBLY LH
1. Remove the 2 nuts and stabilizer link.

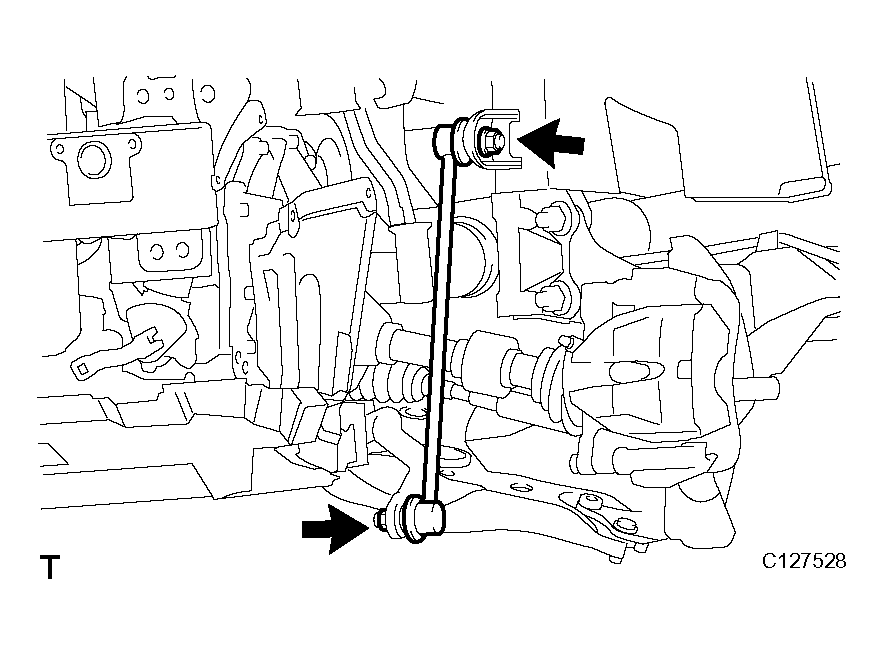

  Fig 1: Removing 2 Nuts And Stabilizer Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE FRONT SUSPENSION MEMBER BRACE FRONT LH
1. Remove the 4 bolts and member brace from the crossmember.

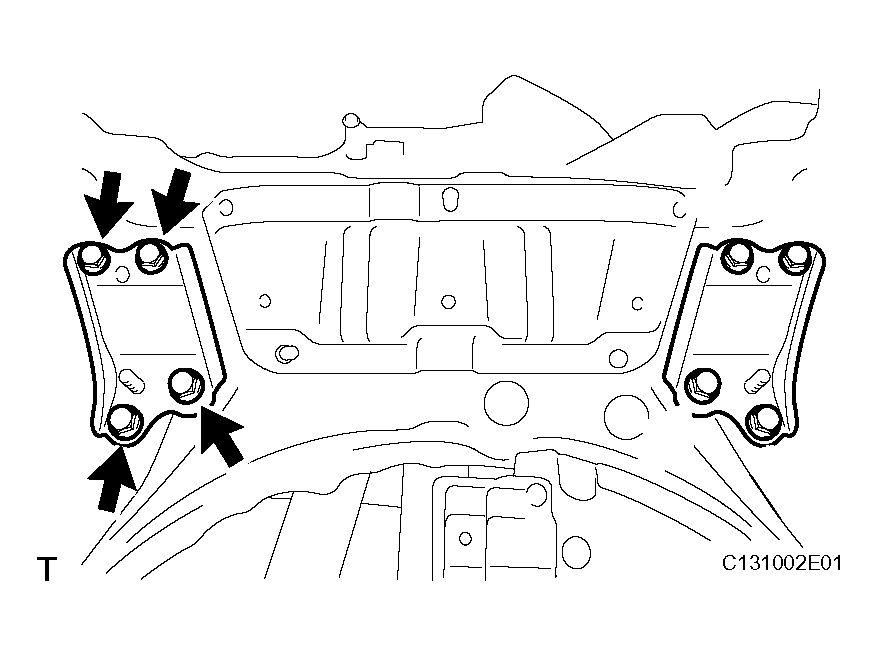

  Fig 2: Removing 4 Bolts And Member Brace From Crossmember
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SUSPENSION MEMBER BRACE FRONT RH
HINT:

Use the same procedures described for the LH side.
REMOVE FRONT STABILIZER BAR
1. Remove the stabilizer bar from the crossmember.
REMOVE FRONT NO. 1 STABILIZER BAR BUSH LH
1. Remove the bush from the stabilizer bar.
REMOVE FRONT NO. 1 STABILIZER BAR BUSH RH
HINT:

Use the same procedures described for the LH side.
