Evaporator Temperature Sensor: Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT EVAPORATOR TEMPERATURE SENSOR

Measure the resistance of the sensor.

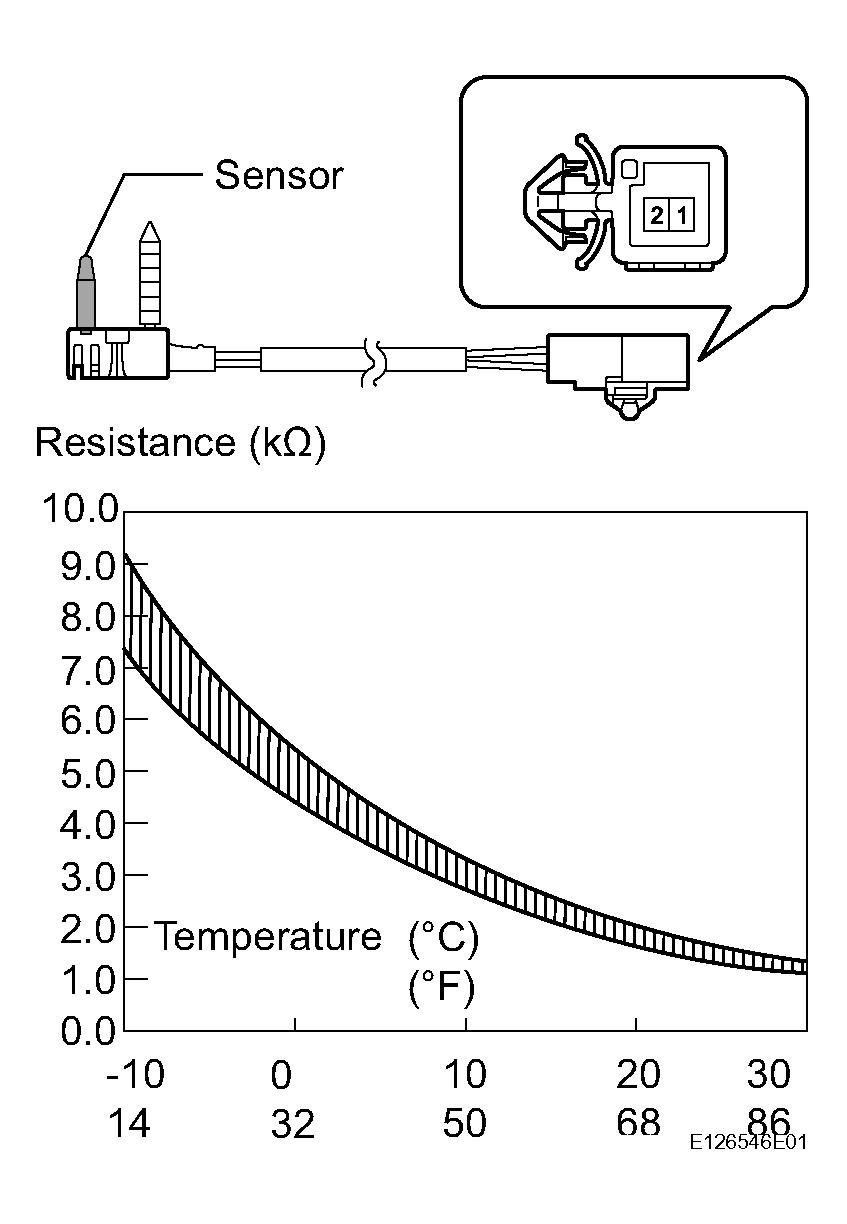

Fig 1: Identifying Evaporator Temperature Sensor Connector & Resistance Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
1 - 2	-10°C (14°F)	7.30 to 9.10 k
1 - 2	-5°C (23°F)	5.65 to 6.95 k
1 - 2	0°C (32°F)	4.40 to 5.35 k
1 - 2	5°C (41°F)	3.40 to 4.15 k
1 - 2	10°C (50°F)	2.70 to 3.25 k
1 - 2	15°C (59°F)	2.14 to 2.58 k
1 - 2	20°C (68°F)	1.71 to 2.05 k
1 - 2	25°C (77°F)	1.38 to 1.64 k
1 - 2	30°C (86°F)	1.11 to 1.32 k

NOTE:

Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
When measuring, the sensor temperature must be almost the same as the ambient temperature.

HINT:

As the temperature increases, the resistance decreases (see Fig 1).

If the result is not as specified, replace the sensor.
